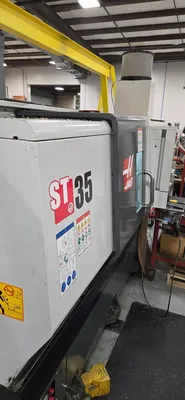

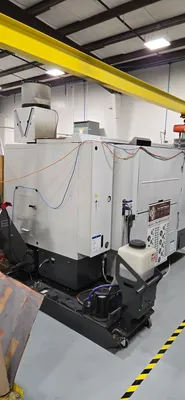

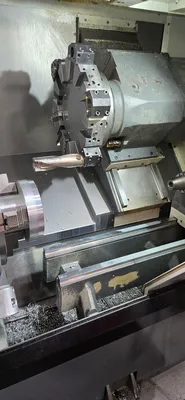

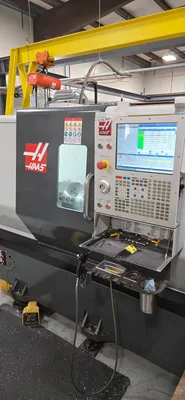

2019 Haas ST35 CNC Turning Center With Programmable Tailstock
Have one to sell?
ConditionUsed
1 available
2019 Haas ST35 CNC Turning Center With Programmable Tailstock. Machine is in very good condition and can be inspected under power as needed. Machine has low hours
Capacities S.A.E
Chuck Size 12.0 in
Max Part Swing 21.0 in
Max Cutting Length (varies with workholding) 32.5 in
Bar Capacity 4.00 in
Between Centers (max) 32.5
Travels S.A.E
X Axis 9.40 in
Z Axis 32.50 in
Feedrates S.A.E
Rapids on X 945 ipm
Rapids on Z 945 ipm
Axis Motors S.A.E
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle S.A.E METRIC
Spindle Nose A2-8
Max Rating 40.0 hp
Max Speed 3200 rpm
Max Torque 425.0 ft-lbf @ 325 rpm
Max Torque w/opt Gearbox 1400 ft-lbf @ 150 rpm
Spindle Bore ΓΈ 4.62 in
Programmable Tailstock
Chip Conveyor
Tool Presetter
