2026 GANESH GH-450 CNC DUAL Spindle Bed Mill

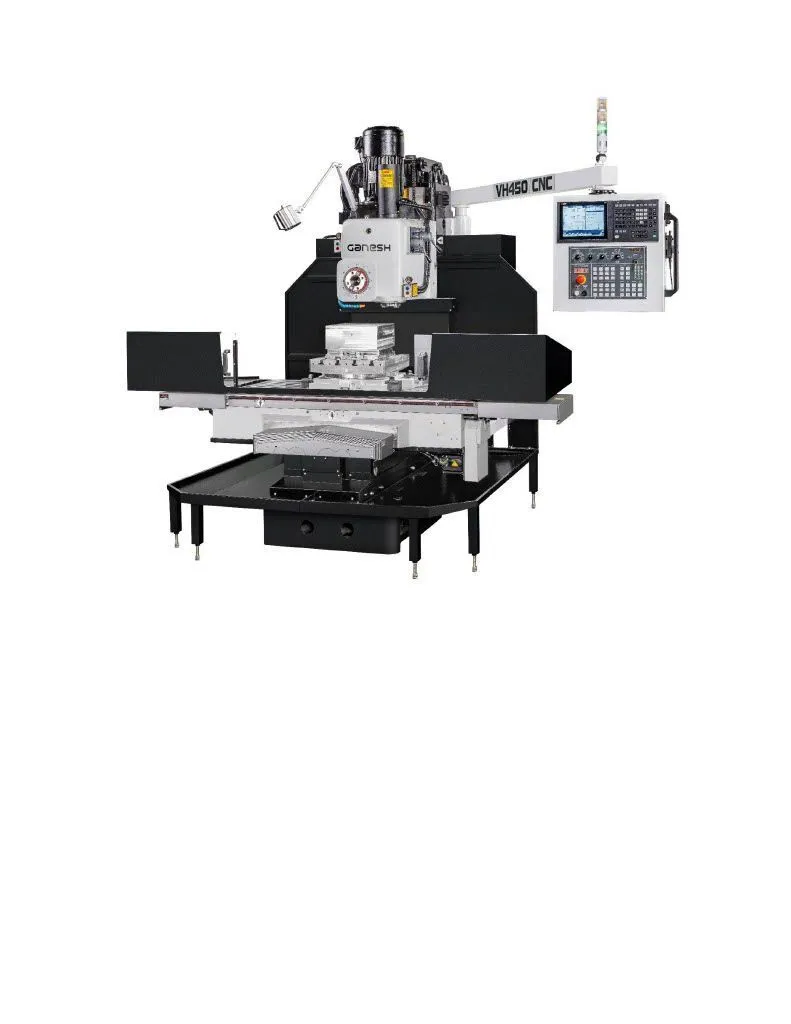

GANESH VH-450 CNC Dual-Spindle Bed Mill

MACHINE CONSTRUCTION
• The bed, column, saddle and table are manufactured from high quality Meehanite cast iron, stress relieved for high stability.
• All slideways are hardened, precision ground, then coated with Turcite-B for maximum wear resistance.
• The X, Y axes are protected by stainless steel telescopic way covers.
• The X, Y axis drive employs high precision ball screws, combined with double nuts, ensuring high accuracy.
SPINDLE
• The spindle runs on precise angular contact bearings.
• A spindle break is provided.
• The spindle is precision manufactured from SCM21 alloy steel, heat treated and precision ground.
FEATURES
• All gears in milling head are hardened and precision ground for quiet running.
• All axes are driven by a high torque Fanuc servo motors.
• The powerful spindle motor provides for a high chip removal rate.
• An automatic way lubrication pump lubricates all slideways.

GANESH VH-450 CNC
Vertical / Horizontal Mill Specifications

Capacity
Table Size 59” x 17.7”
Table Load 2,200 lbs.
T-Slot Dimensions 5-T slots – 80 x 18 mm
Axis Travel X, Y, Z 43.3” x 28.3” x 30.7”
Axis Feedrate 30-6,000 mm/min. 1 – 236 IPM
Rapid Traverse Feedrate 30-6,000 mm/min 1 – 236 IPM
Cutting Length 43.3”
Cutting Width 16.5”
Cutting Height 19.6”
Axis Motor Power X, Y, Z 0.75 kW in all 3-axes

Vertical Spindle
Spindle Speed 45 – 1,500 rpm variable speed
Spindle Horsepower 10-HP
Spindle Taper NT50 or BT50
Spindle Nose to Table 0-617 mm 0 – 24.3”
Spindle Center to Slide Surface 450 mm 17.7”

Horizontal Spindle
Spindle Speed 45 – 1,500 rpm variable speed
Spindle Horsepower 10-HP
Spindle Taper NT50 or BT50
Spindle Nose to Table 0-780 mm 0 – 30.7”
Spindle Center to Table Edge 180 mm 7.08”

Dimensions
Machine Net Weight 8,818 lbs.
Machine Gross Weight 9,920 lbs.
Machine Dimensions LxWxH 137.7” x 122” x 108.2”

Included with the machine

• Fanuc 0i-MF+ CNC control with 10.4” LCD display
• Air power drawbar for both vertical & horizonal spindles
• Automatic way lubrication system
• Coolant system
• Toolbox
• Leveling pads and screws
• Coolant tray and chip guard
• Spindle braking system
• Machine condition display lamp
• Half-Cover for worktable
• Air Conditioner for Electrical Cabinet

Options
4th Axis Rotary Table (manual),
Magnetic work chuck
Work Holding Vice 16" or 20"
Endmill Collet Chuck set
Universal Clamping Set
