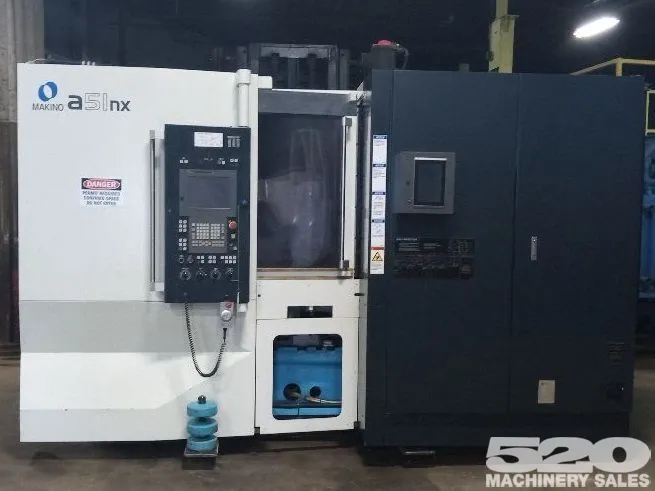

2012 MAKINO A51NX
Have one to sell?
ConditionUsed
1 available
For sale: Used 2012 MAKINO A51NX Horizontal Machining Center. Specs: X 22", Y 25.2", Z 25.2", 14000 RPM, 60 ATC, 40 Taper (HSK63), 15.7" pallet. 4-axis capabilities. An efficient addition for precision tasks.
ONE USED MAKINO 4-AXIS DUAL PALLET HMC
Model: a51nx
Pallet size: 15.7” x 15.7”
Travels: 22” x 25” x 25.2” in Z
Rapid Feed rates: X,Y, Z: 2,362 ipm
Max. feed rates: X,Y,Z: 1,968 ipm
B1: 47 rpm
Max. work piece: 1,100 lbs.
Spindle HP: 50
Spindle taper: Cat 40
Spindle ranges: 2
Spindle rpm: 14,000
Spindle torque: 240 Nm
ATC capacity: 60
Dimensions: 98” x 135” x 106” x 17,200 lbs.
EQUIPPED WITH:
Fanuc Professional 5 controls
Hosnic Chip conveyor
Coolant thru spindle
Full 4th axis
1G axis acceleration
One piece way covers
Step down transformer
Broken Tool Detection
Caron Tool Monitor
Recent new spindle installed by Makino due to poor surface finishes, but was holding tolerances. Machine was making good parts upon purchase. (The new spindle only has about 60 hours on it)
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
Total Hours:
ON: 17,153
Operating: 16,851
Cut: 11,417
Original Spindle run time:
