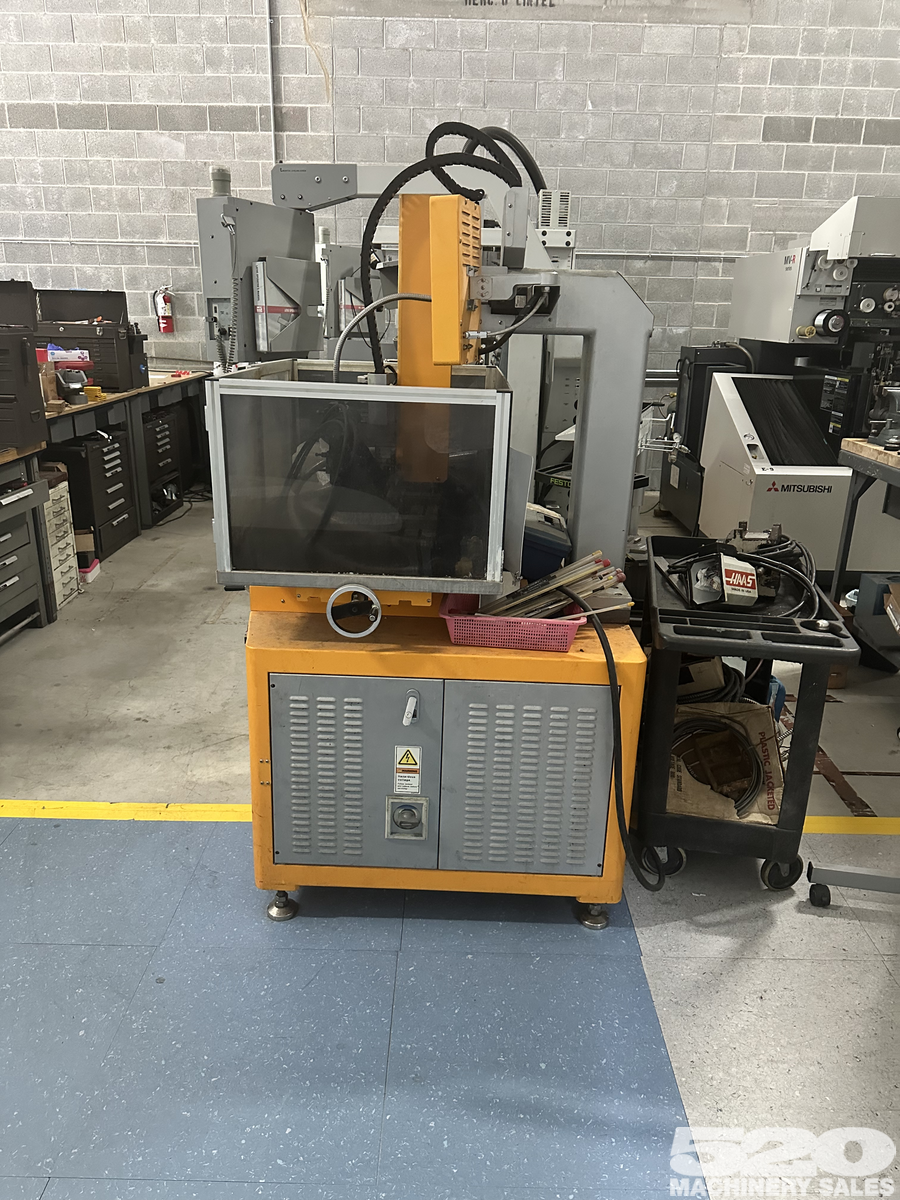

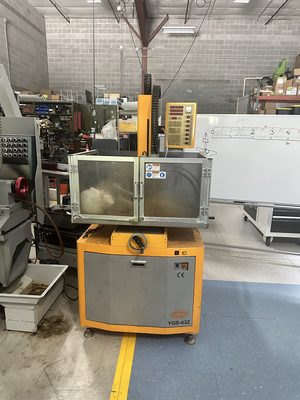

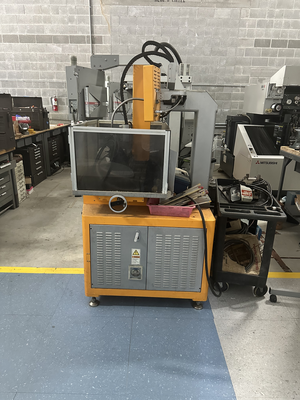

2011 Yougar YGS-43Z Small Hole Drilling EDM
ConditionUsed
1 available
$17,000.00 USD
2011 Yougar YGS-43Z Small Hole Drilling EDM. This is a high precision small hole EDM drilling machine designed for fine drilling operations with exceptional stability and accuracy.
Type: Small-hole EDM drilling machine (8-axis control)
Electrode Diameter Range:
Standard: Φ0.3–Φ3.0 mm
With special AEC: Φ0.1–Φ3.0 mm
Electrode Length: Up to 400–500 mm depending on configuration
Workpiece Height: Up to 350 mm
Workpiece Weight: Up to 200–500 kg depending on model variant
Table Size: 910×650 mm (some listings show 820×585 mm)
Table Travel: X: 400 mm, Y: 300 mm
Z Axis Travel: 400 mm (extended to 400 mm in some versions)
W Axis Travel: 345–400 mm
Max. Machine Weight: ~600–700 kg
Power Supply: Single-phase 220V, 3 kW, 50–60 Hz
Machine Dimensions: ~914×1030×2200 mm (varies by source)
AEC (Automatic Electrode Changer): Standard 20 pcs (brass & copper), options up to 60 pcs
Internal Water Tank: With ion sensor, filtration system, and pull-out design for easy maintenance
Granite Flat Table: SUS 420 granite with anodizing, corrosion-resistant, and electrically insulating
Control Panel: Adjustable height and angle for operator comfort
Drive System: Stepping motors on X, Y, Z, W axes with 1μm linear scale and ball screws for high precision
Special Features:
Auto-return function for Z axis
Micro discharge technology for stable processing
Easy electrode and manual storage within the machine
High stability and precision for fine hole drilling
Applications: Ideal for precision drilling of small holes (0.1
2011 Yougar YGS-43Z Small Hole Drilling EDM. This is a high precision small hole EDM drilling machine designed for fine drilling operations with exceptional stability and accuracy.
Imperial
| X | 15.7" |
| Y | 11.8" |
| Z | 15.7" |
| Control | CNC |
Type: Small-hole EDM drilling machine (8-axis control)
Electrode Diameter Range:
Standard: Φ0.3–Φ3.0 mm
With special AEC: Φ0.1–Φ3.0 mm
Electrode Length: Up to 400–500 mm depending on configuration
Workpiece Height: Up to 350 mm
Workpiece Weight: Up to 200–500 kg depending on model variant
Table Size: 910×650 mm (some listings show 820×585 mm)
Table Travel: X: 400 mm, Y: 300 mm
Z Axis Travel: 400 mm (extended to 400 mm in some versions)
W Axis Travel: 345–400 mm
Max. Machine Weight: ~600–700 kg
Power Supply: Single-phase 220V, 3 kW, 50–60 Hz
Machine Dimensions: ~914×1030×2200 mm (varies by source)
AEC (Automatic Electrode Changer): Standard 20 pcs (brass & copper), options up to 60 pcs
Internal Water Tank: With ion sensor, filtration system, and pull-out design for easy maintenance
Granite Flat Table: SUS 420 granite with anodizing, corrosion-resistant, and electrically insulating
Control Panel: Adjustable height and angle for operator comfort
Drive System: Stepping motors on X, Y, Z, W axes with 1μm linear scale and ball screws for high precision
Special Features:
Auto-return function for Z axis
Micro discharge technology for stable processing
Easy electrode and manual storage within the machine
High stability and precision for fine hole drilling
Applications: Ideal for precision drilling of small holes (0.1
