2022 BROTHER R650X2
ConditionUsed
1 available

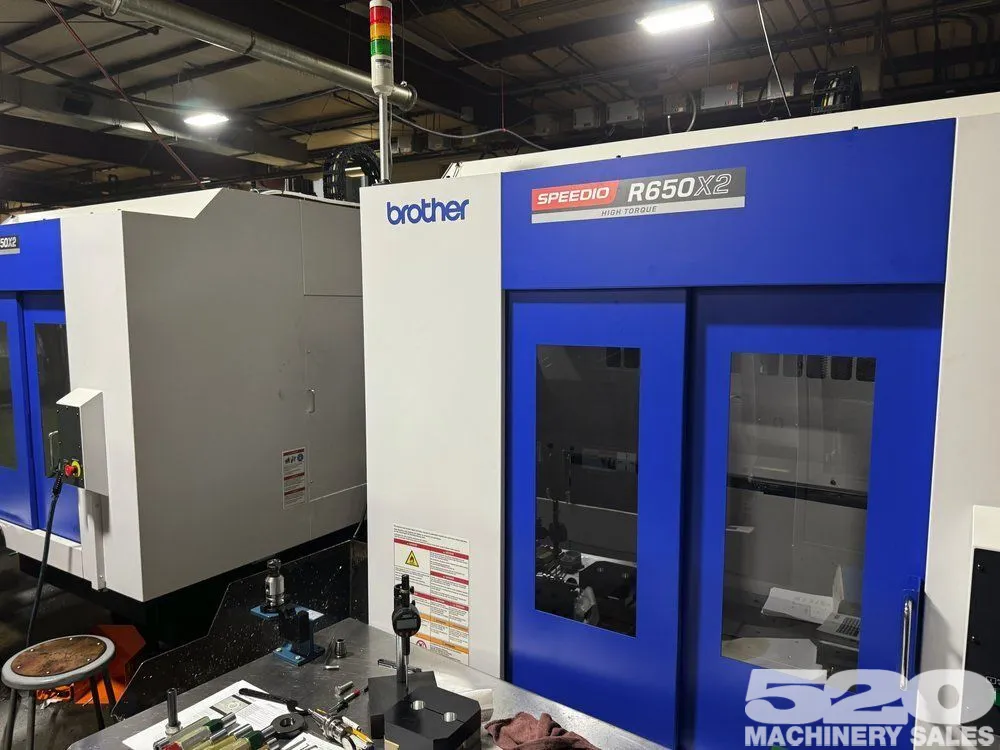

2022 BROTHER R650X2 Vertical Machining Center, used but only 600 cut hours. Features 17 HP high torque spindle, 10,000 RPM, 22 ATC, and CNC–C00 control. Includes manual pulse generator, spindle speed override. Ideal for precise aluminum machining.
ONE USED LATE MODEL BROTHER “SPEEDIO” CNC DRILLING & TAPPING DUAL ROTARY PALLET MACHINING CENTER with HIGH TORQUE SPINDLE
Model: Speedio R650x2
Pallet size: 31.5” x 15.7”
Pallet indexing time: 3.4 seconds
Travels: 25.6” x 15.7” x 12”
Rapid travels: 1,969 ipm in X, Y, & Z
Cutting feed rates: 0.04-1,181 ipm
Distance from table top to nose: 9.8” – 21.8”
Max. jig height: 16.5”
Spindle RPM: 10,000
Max. tapping RPM: 6,000
Spindle taper: BT30 Big Plus
Spindle HP: 17/11.7 HP High Torque
ATC capacity: 22
Tool to tool: 0.8 sec
Chip to chip: 1.6 sec
Dimensions: 74.7” x 135.7” x 106.1” high x 7,716 lbs.
CNC – C00 control with PLC
Manual Pulse Generator
3-stage light
Work light
Spindle speed override
Shower gun
Coolant system w/200L tank
CTS
Top cover
Door interlock
Blum ZX Speed wired w/150mm riser
New: 2022 and only ran aluminum parts.
Approximate Cut Hours: 500
Fixtures in picture are included
