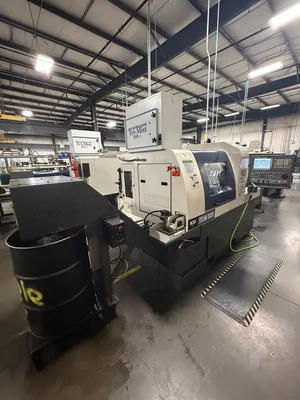

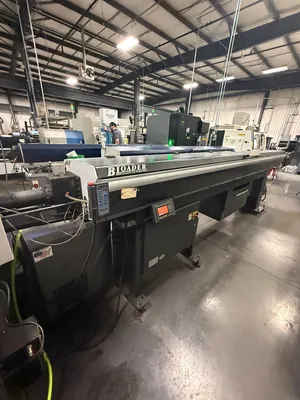

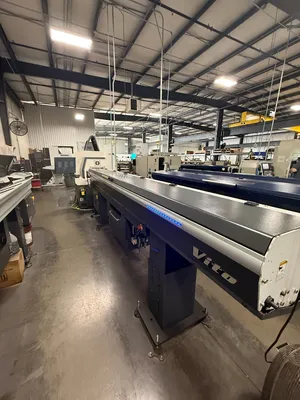

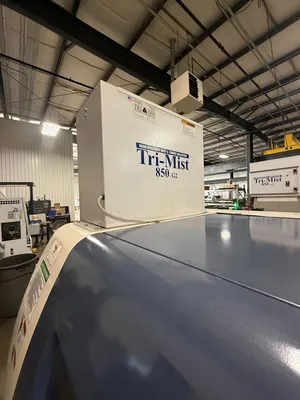

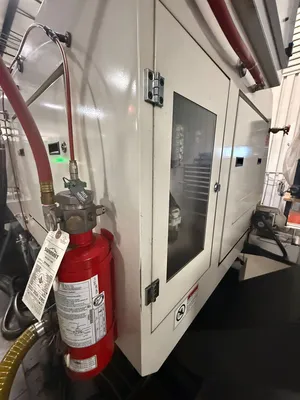

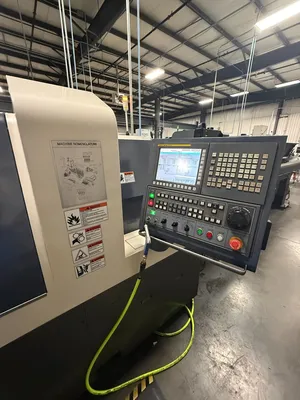

2019 KSI TCM CNC Swiss Turning Center

Machine Specifications:
KSI Model TCM 32SII
Main Spindle Bore Diameter (Push pipe) 43mm (1.692")
Main Spindle Hosrepower 10HP
Max Spindle Speed 8000 RPM
Main Spindle Positioning C Axis .001 Degrees

Sub Spindle Bore Diameter 32mm (1.25")
Sub Max Sub Speed 8,000 RPM
Sub Spindle Positioning C Axis .001 Degrees
Sub Spindle Horsepower 3HP

Maximum Turning diameter 32mm (1.25")
Z1-Axis Stroke 300mm
Z2-Axis Stroke 300mm
X1-Axis Stroke 70mm
Y1-Axis Stroke 397.5mm
X2-Axis Stroke 403mm
Y2-Axis Stroke N/A

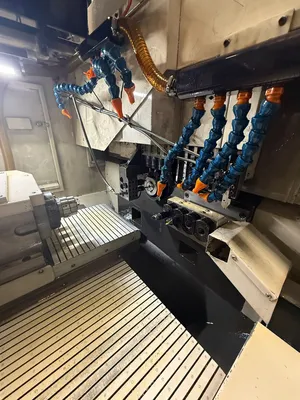

Number of tool stations 26 Total
Main side 17 Total
Ballscrew Diameter 25 mm
Ballscrew Lead 10mm with S/W limit, and mechanical stop
Slide ways are LM guide design Rexroth Bosch

Capacity Specs:
Main Spindle Drill/Tap 25mm/M8 (ER16)
Cross Spindle Drill/Tap 10mm/M6 (ER16)
Back working Drill/Tap 10mm/M8 (ER16)
Main Spindle Turning Tools 5 Standard (Fixed)
Stick Tool Shank Size 16mm (5/8")
Main Spindle Cross Live Tools 4 Standard (Live)
Y Axis Tool Block 5 Standard (Fixed)
Headstock Collet Size TF44
Guide Bushing Size TD32S (16 Deg)
Sub Spindle Collet Size TF37
Face Tools (Sub Spindle T23) 0 Standard (Fixed)
Face Tools (Sub Spindle T21,22) 2 Standard (Live)
Live Face Tools (Back End) 3 Standard (Live) T31 optional
Fixed Face Tools (Back End) 1 Standard (Fixed) T33, 34 optional
Total No. of Fixed Tools 17 Standard
Total No. of Live Tools 9 Standard
Total No. of Tools 26 Standard
Driven Rotary Guide Bushing Standard

Motor Specs:
Main Spindle Motor 7.5 Kw (10HP)
Sub Spindle Motor 2.2 Kw (3HP)
Cross Drill/Mill Motor 1.1 Kw (1.5hp)
Cross/Back End Working Spindle Speed 5,000 RPM
Back End Motor 1.1 Kw (1.5hp)
Weight 3,500 Kg (7,716 Lbs)
L x W x H 2,720 X 1,500 X 1,170
Tank Capacity 200L (52.8 gal)

Intelligent Chucking
G300 re-chuck optimization
High precision mode (M100)
Rapid tool change (RTC)
Variable frequency turning (VFT)
Software controlled tool breakage detection
On screen G code list
On screen M code list
LED Red/Yellow/Green Signal Light

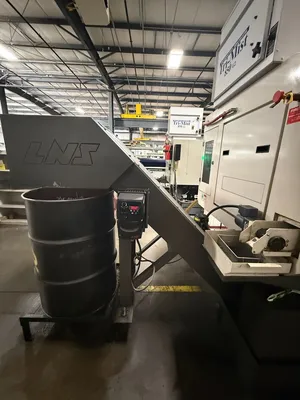

Parts Chute

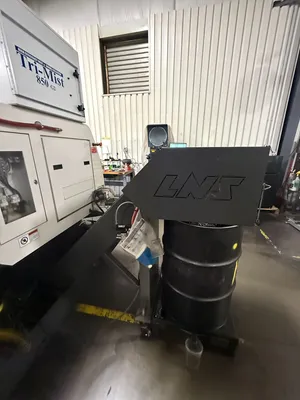

Parts Conveyor
Sub Spindle Work Ejector
Cutting Oil Tank and Chip Pan are removable and independent
200L Cutting Oil Tank
Main coolant pump flow sensor
Sub-coolant pump (optional)
Automatic Power-Off

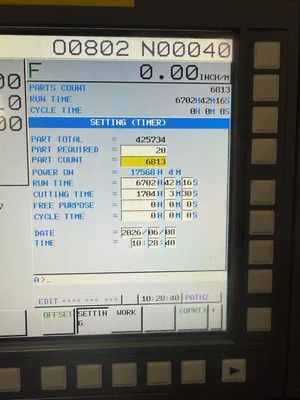

M97 - Parts counter
Work-dual zone LED Lighting
M86 - Cut off tool breakage detector software
Tool life management system
Collision prevention system
Sub spindle Air Blow (thru sub- spindle long shaft ejection ready)
Pre-Wired for Main Coolant, Pre
Wired for Sub Coolant
Pre-Wired for Chip Conveyor, Pre-Wired Flow Sensor

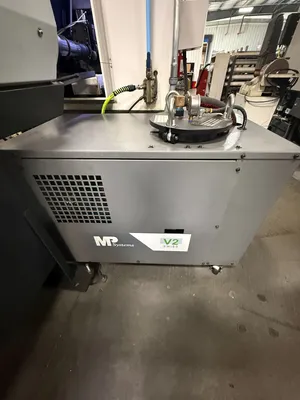

(4) M codes for High Pressure Coolant system
(2) M codes for application (Electric spindle/HP coolant)
M108/M109 - Additional secondary coolant pump
Automatic waylube system
