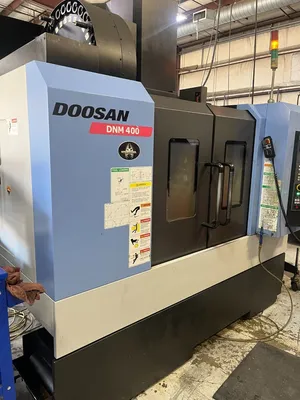

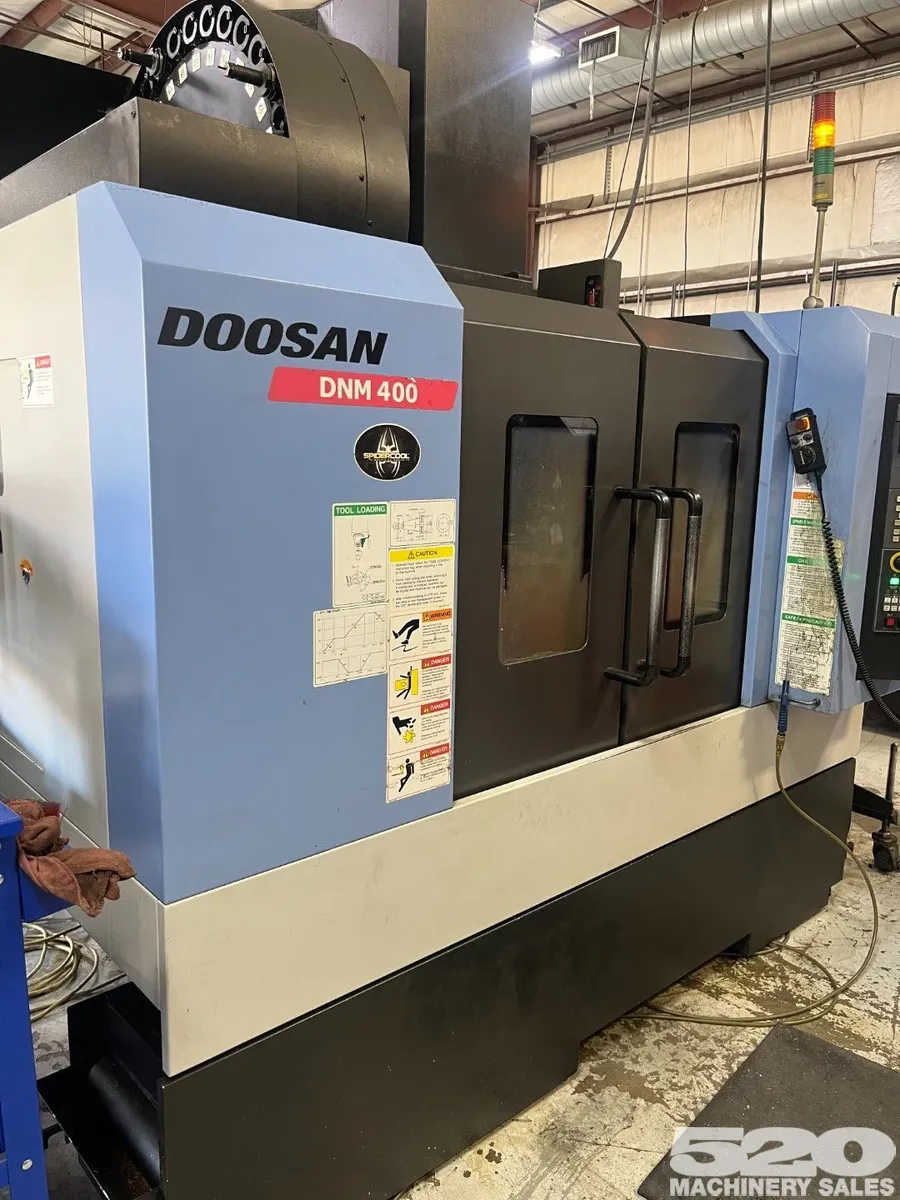

2013 DOOSAN DNM 400 CNC Vertical Machining Center
ConditionUsed
1 available
$38,500.00 USD
2013 DOOSAN DNM 400 CNC Vertical Machining Center. Machine is in very good condition and can be inspected under power as needed. Options include: through spindle coolant, Spider Cool Programmable coolant system, chip conveyor, remote jog handwheel, Fanuc CNC control, probing (spindle probe not included), and side-mount toolchanger.
CAPACITY:
X axis travel 762mm (30.0 inches)
Y axis travel 435mm (17.1 inches)
Z axis travel 510mm (20.1 inches)

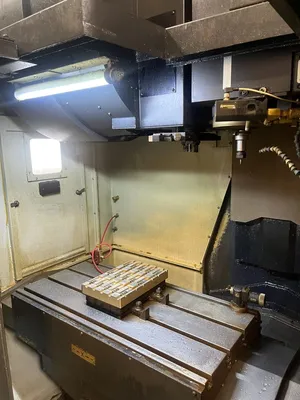

Table loading area 920mm x 435mm
(36.2 x 17.1 inches)
Allowable table load 600kg (1,320 pounds)
Table T - slot spacing x width (4) – 125mm x 18H8
(4.92” x .71”)

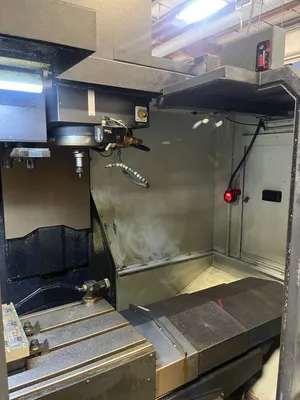

SPINDLE:
Spindle nose to table top 150mm to 660mm
(5.9 to 26 inches)
Column to spindle center 512mm (20.2inches)
Big plus Spindle system ISO No. 40
Spindle speed 8,000 Rpm
AC Spindle motor (15 min.) 15 kW (20 HP)
Spindle torque (15 min.) 210 Nm (154 ft-lbs.)
Spindle Speed (Optional) 12,000 Rpm
Ac Spindle Motor (15 min) 15Kw (20 Hp)
Spindle Torque (10min) 95.5Nm (75.5 Ft-lbs)
AUTOMATIC TOOL CHANGER:
Number of Tools 30
Tool Shank CAT 40
Pull Stud (retention knob supply company #) 711-23
Max. Tool Dia. / Adjacent pots are empty 80mm / 125mm (3.1” / 4.9”)
Max. Tool Length 300mm (11.8 inches)
Max. Tool Weight 8kg (17.6 lbs.)
GENERAL:
Machine Height 2711mm (106.7 inches)
Floor Space Required (L x W) 2078mm x 2615mm (82” x 103")
Machine Weight 5500kg (12,100 lbs.)
Through Spindle Coolant
Probing (Spindle Probe Not Included)

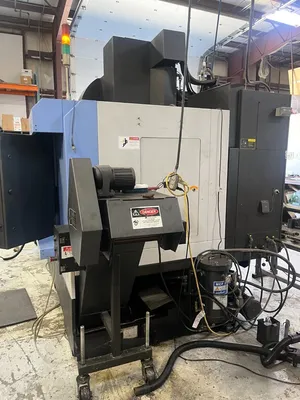

Chip Conveyor

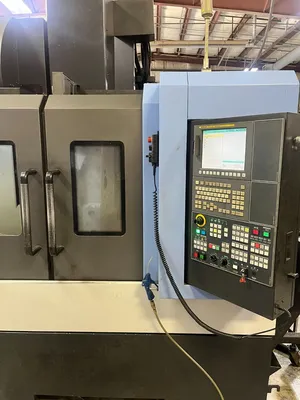

• Fanuc Oi-MD Control
• 8,000

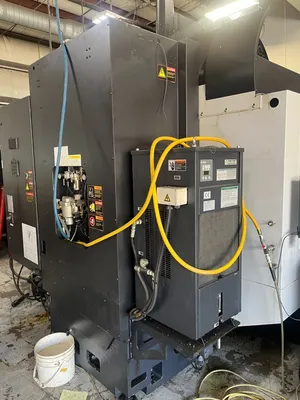

• Oil jacket spindle chiller
• Powerful 9/15 kW (20 hp) spindle motor
• 10.4” Color LCD display
• Cartridge spindle design
• Air thru - spindle
• Big plus spindle System
• High precision spindle with four angular contact bearings
• Spindle orientation
• Spindle speed override 50 – 150%
• Rigid tapping
• Custom Macro B (User Definable)
• Cam Type Double Arm ATC 30 Tools
• Portable Manual pulse generator
• Oil Skimmer
• Massive One-piece Meehanite cast iron bed
• Large Linear Guides (Y, Z 45mm / X 35mm)
• Servo motors mounted directly to the
Oversized ball screws (X, Y and Z, 40mm)
• Double Pre-tensioned ball screws
• AI APC (Mold / Die Software/ 15 block Look Ahead)
• Fast 36m (1,417 IPM) Rapid Traverse rate
• Metered piston distributor lubrication
• Telescopic covers
• Screw conveyors on both troughs for chip disposal
• Full enclosure splash guard
• Flood coolant with large separate coolant tank
• Work light
• 3 color tower signal light
