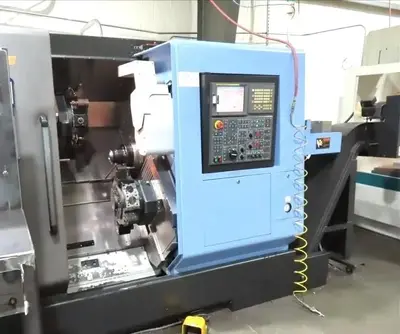

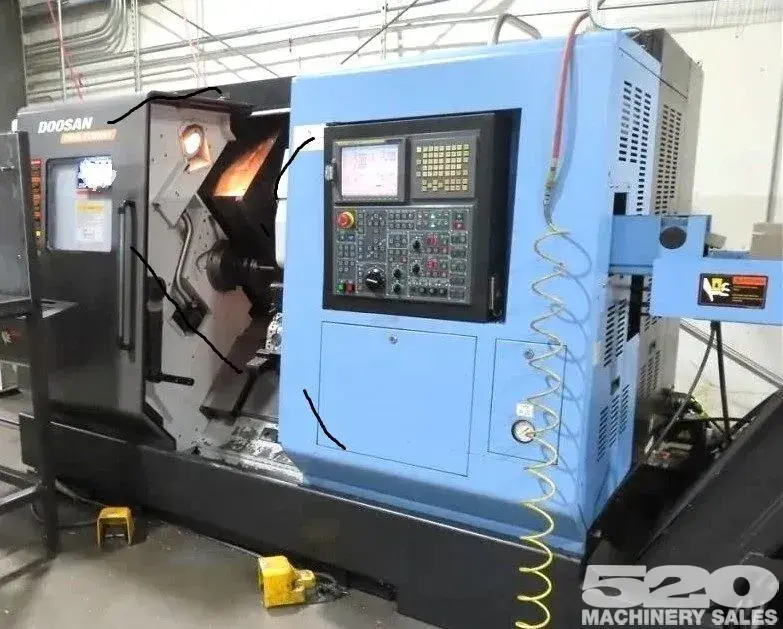

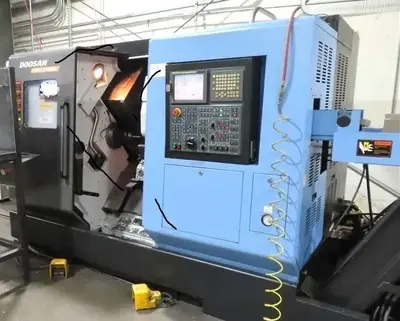

2008 DOOSAN TT1500SY CNC Turning Center With Sub-Spindle and "Y" Axis Live Tooling

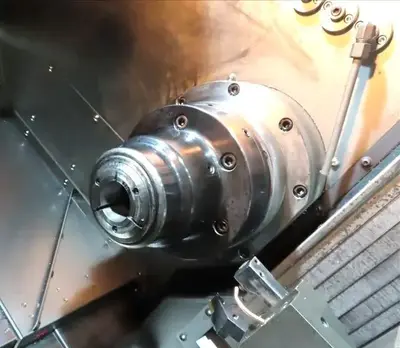

Spindle:
Main Spindle Bore: 2.0″
Sub Spindle Bore: 1.77″
Main Spindle Nose: A2-5
Sub Spindle Nose: A2-5
Main Spindle Speed: 60 – 6000 RPM
Sub Spindle Speed: 60 – 6000 RPM
Main Spindle Power: 20 hp
Sub Spindle Power: 20 hp
Capacity:
Max Turning Diameter: 9.05″
Max Turning Length: 20.1″
Max Bar Capacity: 2.0″
Swing Over Bed: 23.62″
Travels:
X1 Axis Travel: 6.5″
Z1 Axis Travel: 18.5″
X2 Axis Travel: 7.48″
Z2 Axis Travel: 19.29″
Y Axis Travel: 4″ (+/- 2.0″)
C Axis Travel: 360° (0.001°)
Feedrate: Rapid Traverse
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Rapid Traverse Y Axis: 295 IPM

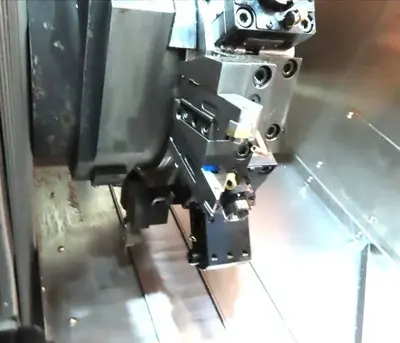

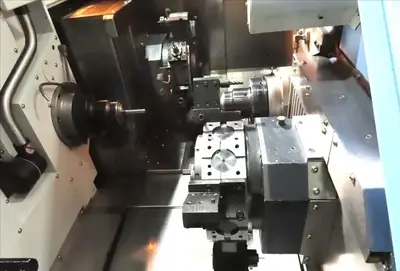

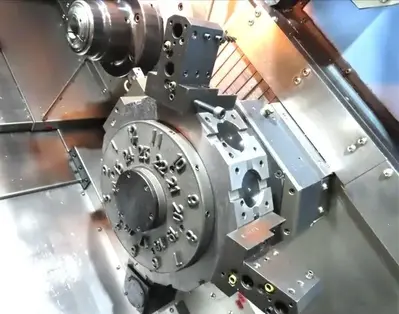

Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 12 Stations
Live Tool Speed: 50-5000 RPM
Live Tool Power: 5 HP
Turret Indexing Time: 1 Second
General:
Power: 53 kva, 220v / 3-Phase
Overall Dimensions: 120″ x 67″ x 72″ High
Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor
Weight: 11500 lbs
