| X | 27.6" | 701.04 mm |
| Y | 15.7" | 398.78 mm |
| Z | 11.8" | 299.72 mm |
| Power | 13.5 hp | 10.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | 7/24 #30 | 7/24 #30 |
| Table-W | 15.7" | 398.78 mm |
| Table-L | 31.5" | 800.1 mm |
| # Axis | 3 | 3 |
27,000 RPM spindle

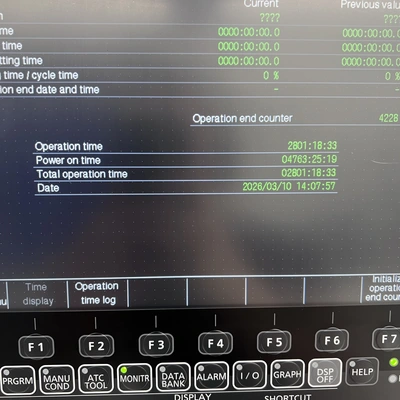

2,800 hours
03/2020 build date
Cut aluminum and plastic only its entire life

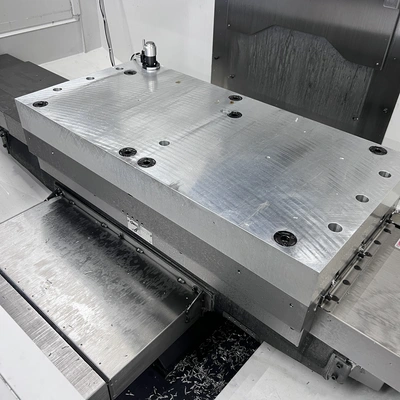

Original machine table has never been used Table was protected with LPS-3 and covered with a fixture plate from new
Machine Specs:
Brother C00 control with built-in PLC
27,000 RPM spindle
11.8 / 8.4 HP spindle motor
BT30 taper
21-tool drum ATC
Travels: 27.6" x 15.7" x 11.8"
Table: 31.4" x 15.7"
Rapids: X/Y 1,969 IPM / Z 2,205 IPM
Spindle taper air blast

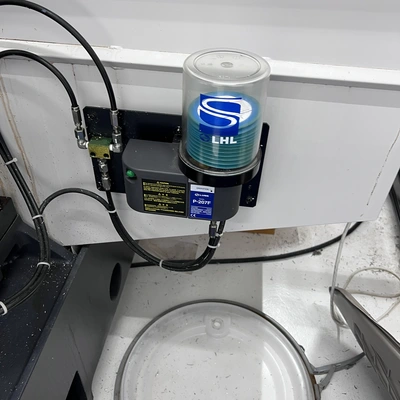

Auto grease lubrication system

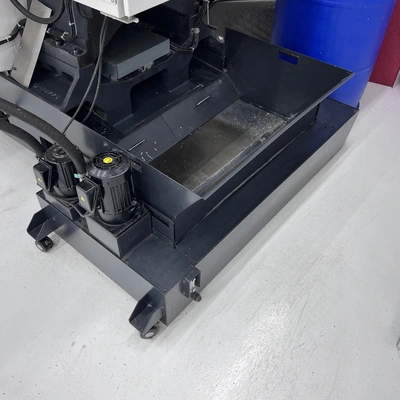

150L coolant tank with chip shower
High Accuracy Mode BII
Safety door interlock system
Manual pulse generator
2-light work light kit
Shower gun
Metrol TM26D-01 tool setter with 60 mm rise
Top cover

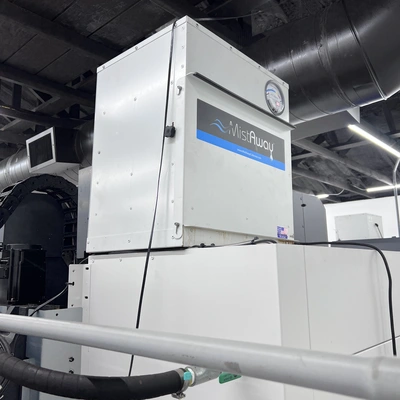

MistAway MA700C coolant mist collector, 700 CFM
