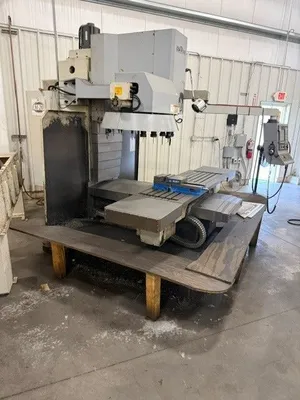

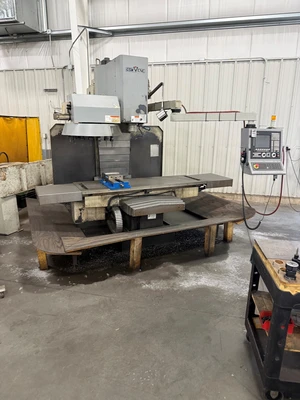

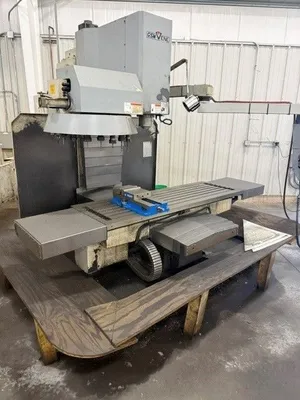

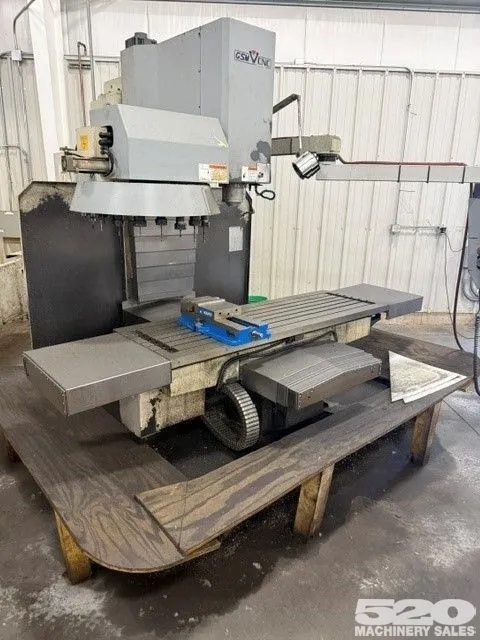

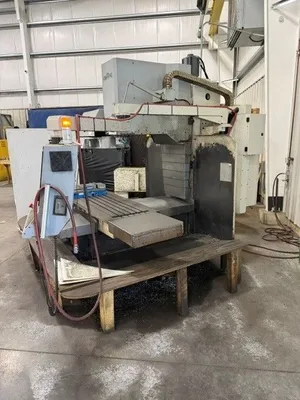

2012 GSM (Geng-Shuen) 1500L CNC Vertical CNC Mill
ConditionUsed
1 available
$23,500.00 USD
2012 Geng-Shuen 1500L CNC Vertical Mill. Machine is in very good condition and can be inspected under power as needed. This machine has a Fagor CNC control and runs on 480 3 Phase power.
Box Guideway 2
Table
Worktable mm/inch 450 x 1800 / 17" x 70"
T-Slot mm 16 x 5 x 60
Table Load Capacity kgs 1000
X Axis Travel m/m 1500
Y Axis Travel m/m 650
Z Axis Travel m/m 620
3 Axis Drive Belt Type

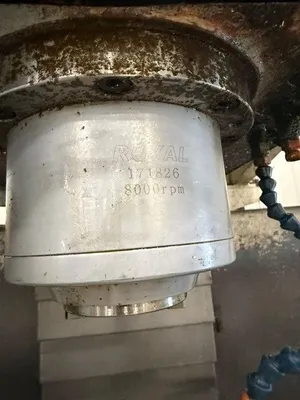

Spindle Head
Spindle Taper BT-40 (CAT-40)
Spindle Speed rpm 8000 / Op: (10000)
Feed Rate m/min 0-5
Ball Screw Diameter m/min Ø 40
Rapid Travel m/min 0-10 (0-20)
Motors
Spindle Motor HP 10 (15)
Tool Storage Capacity (20; 24)
N.W. kgs 4000
G.W. kgs 4300
Packing Measurement cm 264 x 228 x 254

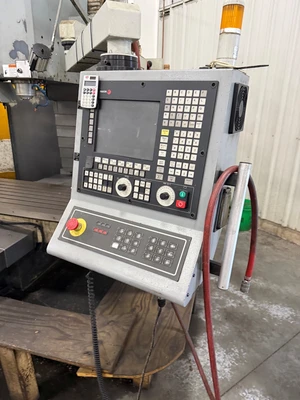

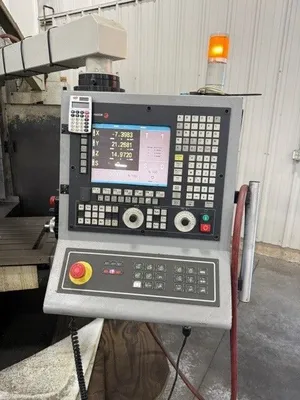

Fagor CNC Control

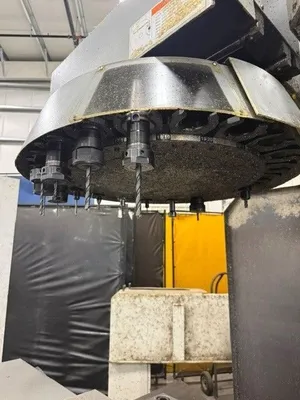

20 Station Automatic Toolchanger
Work Light
Coolant System

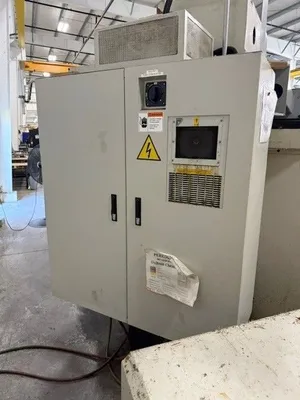

480 Volts
2012 Geng-Shuen 1500L CNC Vertical Mill. Machine is in very good condition and can be inspected under power as needed. This machine has a Fagor CNC control and runs on 480 3 Phase power.
Imperial
| X | 60" |
| Y | 33.5" |
| Z | 28" |
| Power | 15 hp |
| RPM | 8,000 RPM |
| # ATC | 20 |
| Taper | CT-40 |
| Table-W | 24" |
| Table-L | 73" |
| # Axis | 3 |
| Control | CNC (FAGOR) |
Box Guideway 2
Table
Worktable mm/inch 450 x 1800 / 17" x 70"
T-Slot mm 16 x 5 x 60
Table Load Capacity kgs 1000
X Axis Travel m/m 1500
Y Axis Travel m/m 650
Z Axis Travel m/m 620
3 Axis Drive Belt Type
Spindle Head
Spindle Taper BT-40 (CAT-40)
Spindle Speed rpm 8000 / Op: (10000)
Feed Rate m/min 0-5
Ball Screw Diameter m/min Ø 40
Rapid Travel m/min 0-10 (0-20)
Motors
Spindle Motor HP 10 (15)
Tool Storage Capacity (20; 24)
N.W. kgs 4000
G.W. kgs 4300
Packing Measurement cm 264 x 228 x 254
Fagor CNC Control
20 Station Automatic Toolchanger
Work Light
Coolant System
480 Volts
