2004 COSEN AH-1010JAY
ConditionUsed
1 available

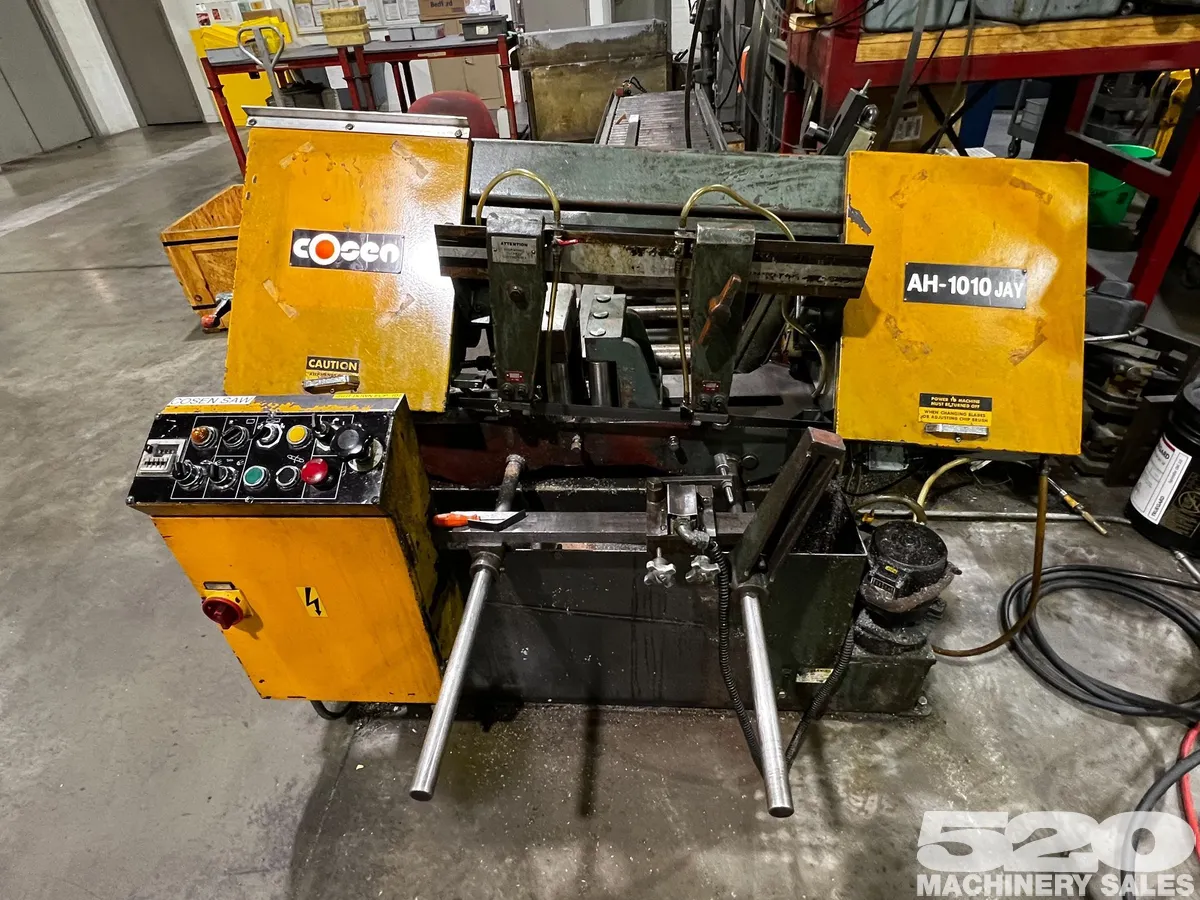

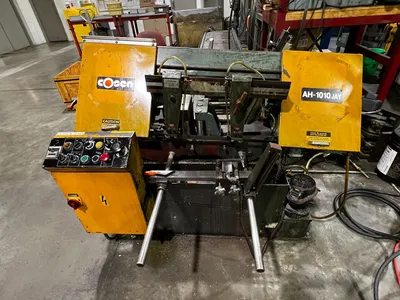

2004 COSEN AH-1010JAY. Saw is in good mechanical condition and can be inspected under power.

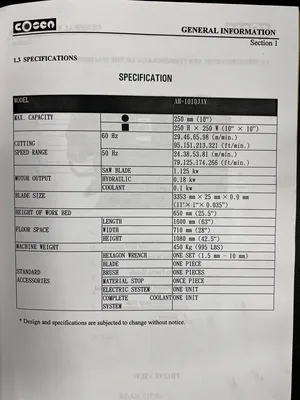

Cosen AH-1010JAY Specifications
Specification Value
Machine Type Semi-automatic horizontal band saw
Maximum Round Capacity 10 in. (250 mm)
Maximum Square Capacity 9 x 9 in. (230 x 230 mm)
Maximum Rectangular Capacity 10 x 9 in. (250 x 230 mm)
Blade Size 3350 x 27 x 0.9 mm (135 x 1 x 0.035 in.)
Blade Speeds (60 Hz) 23, 37, 58, 93 m/min (75, 121, 190, 305 sfm)
Blade Speeds (50 Hz) 19, 31, 48, 78 m/min
Main Drive Motor 2 HP (1.5 kW)
Hydraulic Pump 1/4 HP (0.18 kW)
Coolant Pump 1/8 HP (0.10 kW)
Vise Roller Motor 1/4 HP (0.20 kW)
Coolant Tank Capacity 40 L (10.6 gal)
Hydraulic Tank Capacity 15 L (4 gal)
Work Height 650 mm (25.6 in.)
Net Weight 480 kg (1,056 lbs)
Shipping Weight 580 kg (1,276 lbs)
Floor Space 1850 x 900 x 1040 mm (73 x 35 x 41 in.)
Shipping Dimensions 1830 x 965 x 1140 mm (72 x 38 x 45 in.)
Standard Features
Hydraulic downfeed control
Hydraulic material vise
Manual material positioning
Four-step gearbox for blade speed selection
Flood coolant system
Adjustable carbide blade guides
Automatic blade shutoff at end of cut
Heavy-duty cast-iron saw head and vise construction
