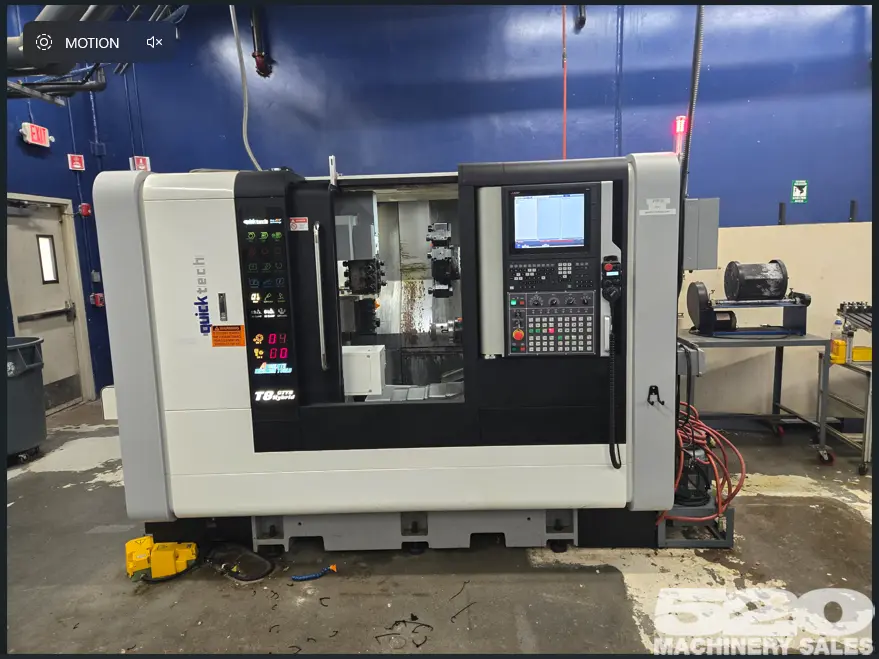

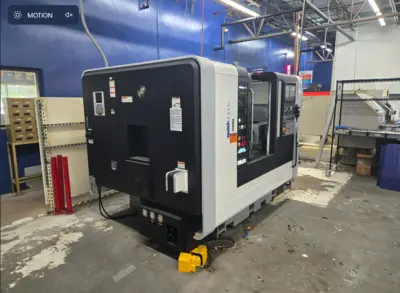

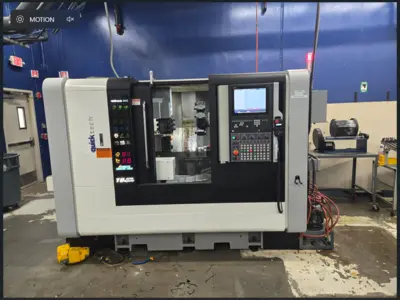

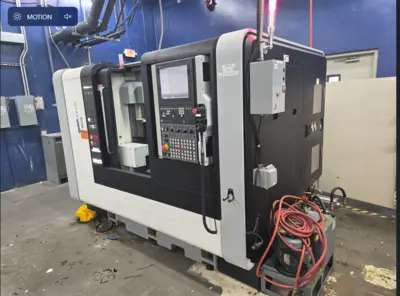

2022 QUICKTECH T8 Hybrid CNC Turning Center With 9 Axis, Twin spindle,
ConditionUsed
1 available
$179,900.00 USD
T8 Hybrid 9-Axis Twin Spindle Turn/Mill Center with combination turret and B axis gang slide. The QuickTECH T8 Hybrid is a high-end multitasking CNC turning center designed to complete complex parts in a single setup. It combines a BMT power turret, 360° B-axis gang tooling, twin spindles, and dual live milling spindles, allowing simultaneous machining on the main and sub-spindles. The Flexible Duo System can run two programs at once. Machine comes with: collet chucks, 3) live toolholders, and a full compliment of static holders.
General Specifications
Specification Value
Machine Type 9-Axis Twin-Spindle CNC Mill/Turn Center
CNC Control Fanuc 0i-TF (typical North American configuration)
Main Spindle Motor 15 HP (11 kW)
Main Spindle Speed 4,000 RPM
Main Chuck 8" 3-jaw or 60 mm collet
Main Bar Capacity 65 mm (2.56") with chuck / 60 mm with collet
Main Spindle Nose A2-6
Sub-Spindle Motor 7.5 HP
Sub-Spindle Speed 4,000 RPM
Sub-Spindle Nose A2-5
Sub-Spindle Bar Capacity 32 mm (1.26")
Maximum Turning Diameter 11.8" (300 mm)
Maximum Turning Length 13.8" (350 mm)
Distance Between Centers 20" (508 mm)
Swing Over Bed 19.7" (500 mm)
9 Axis (X1, Y1, Z1, C1, X2, Y2, C2, B-Axis
Collet Chucks
3) Live Toolholders and a Full Compliment of Static Holders

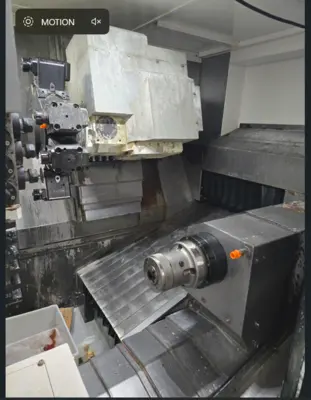

Twin Spindle

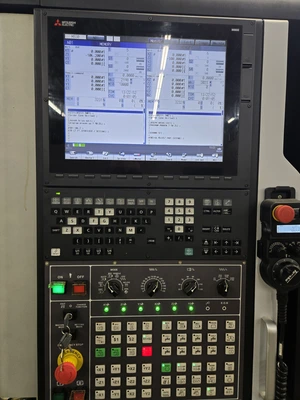

Mitsubishi CNC Control
Standard Features
Twin opposed spindles
Simultaneous machining (Flexible Duo System)
True Y-axis machining
Full 360° programmable B-axis
C-axis interpolation on both spindles
Rigid tapping
Automatic lubrication
Bar feeder interface
