| Live Tooling | No | No |
| Swing | 40" | 1,016 mm |
| Machining Length | 51" | 1,295.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 55 hp | 41 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
Specification Value

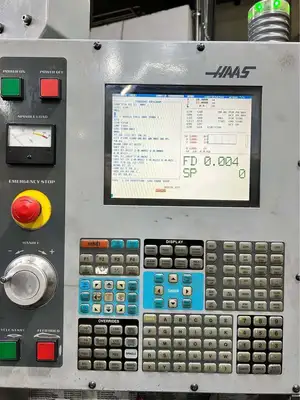

Control Haas Classic Control (CHC)
Chuck Size 15 in
Maximum Swing Over Bed 40.0 in (1,016 mm)
Maximum Swing Over Cross Slide 25.0 in (635 mm)
Maximum Turning Diameter 25.5 in (648 mm)
Maximum Turning Length 44.0–51.0 in (model/configuration dependent)
X-Axis Travel 17.0 in (432 mm)
Z-Axis Travel 44.0 in (1,118 mm)
Bar Capacity 4.0 in (102 mm)
Spindle Bore 4.62 in (117 mm)
Spindle Nose A2-8
Maximum Spindle Speed 2,400 RPM
Spindle Motor 40 HP standard (55 HP optional)
Maximum Torque Up to 1,400 ft-lb @ 150 RPM
Turret 10-station servo turret
Tailstock Programmable hydraulic
Rapid Traverse (X/Z) 710 IPM
Machine Weight Approximately 25,000–26,000 lb
Footprint Approximately 190 × 98 × 86 in (varies by options)

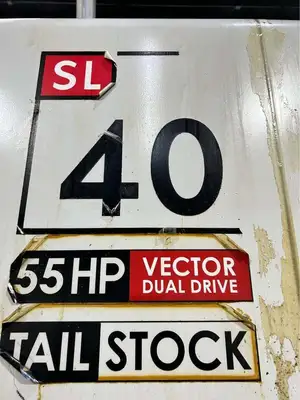

55 HP Spindle Upgrade
Programmable Tailstock
This equipment is currently unavailable. Similar equipment available now is shown below.
