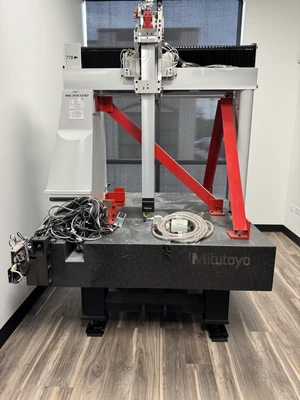

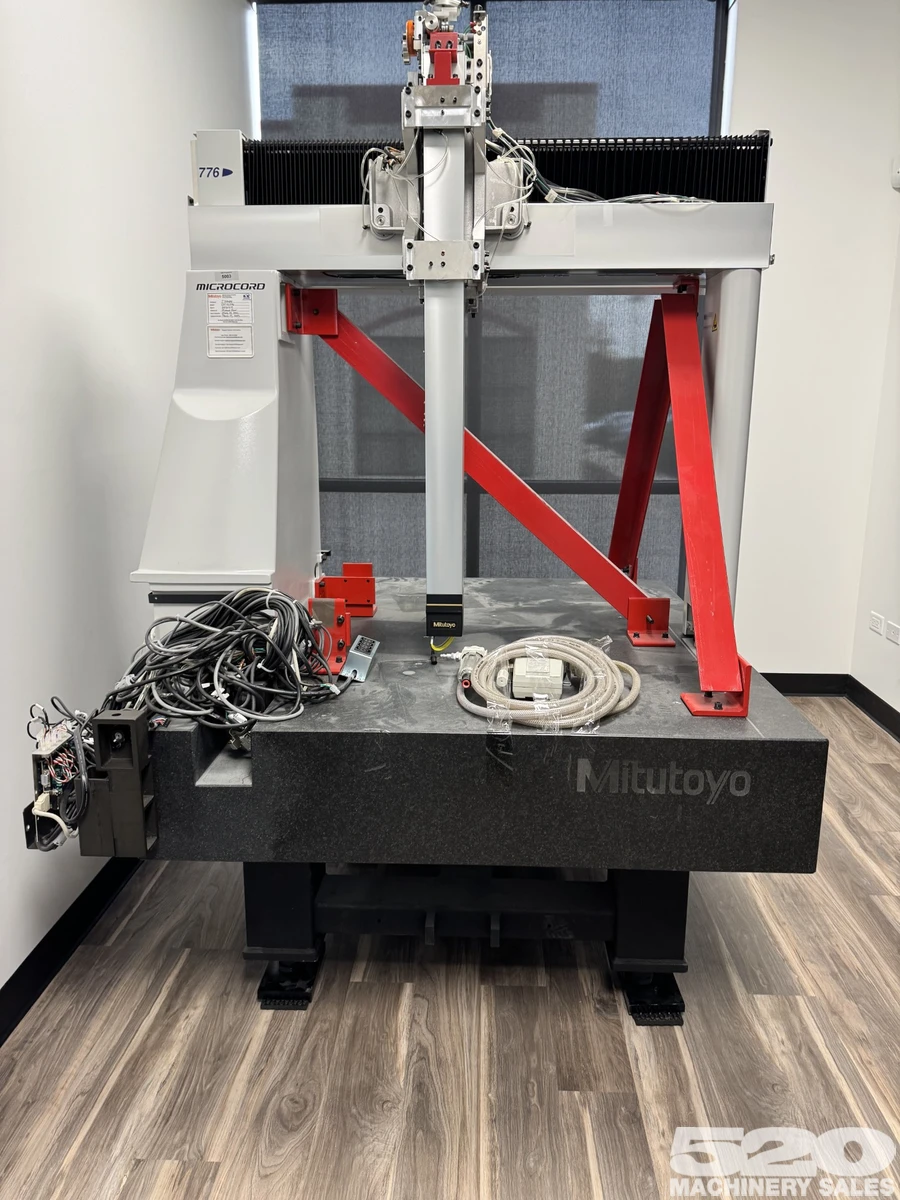

2018 Mitutoyo CMM CRYSTA-Apex S776 plus all associated probes and equipment

The Mitutoyo CRYSTA-Apex S776 is a bridge-style CNC coordinate measuring machine
designed for high-accuracy dimensional inspection in toolrooms, precision machining,
aerospace, automotive, and medical manufacturing.

Specifications
Specification Value
Measuring Range (X × Y × Z) 700 × 700 × 600 mm (27.6" × 27.6" × 23.6")
Resolution 0.0001 mm (0.1 µm)
Guide System Air bearings on all three axes
Measuring Accuracy (SP25M probe) 1.7 + 3L/1000 µm (ISO 10360-2)
Max Measuring Speed 8 mm/sec
Max Traverse Speed 519 mm/sec
Max Acceleration 2,309 mm/sec²
Maximum Workpiece Height 800 mm (31.5")
Maximum Workpiece Weight 800 kg (1,763 lb)
Machine Weight 1,675 kg (3,692 lb)
Air Supply Pressure 0.4 MPa (58 psi)
Air Consumption 50 L/min (1.76 CFM) typical
Air Source Capacity 100 L/min (3.53 CFM) recommended
