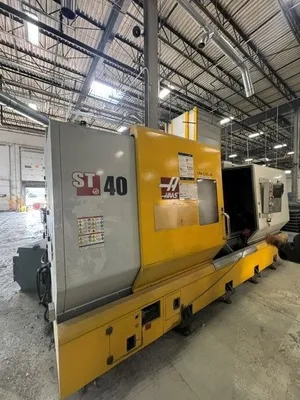

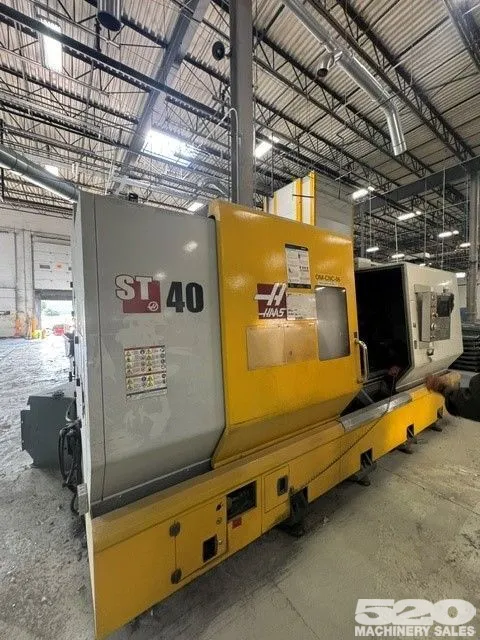

2012 HAAS ST-40T CNC Turning Center W/ Programmable Tailstock
ConditionUsed
1 available
2012 HAAS ST-40T CNC Turning Center W/ Programmable Tailstock. Machine is in very good condition and can be seen under power. This unit cut plastic only. Options include: programmable tailstock, chip conveyor, and 15" chuck.
Specification 2012 ST-40T
Machine type CNC 2-axis turning center

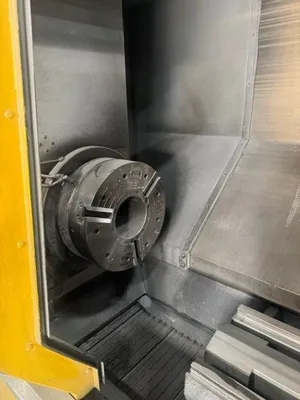

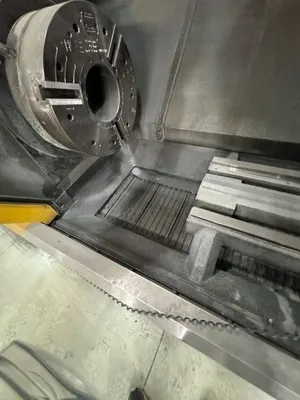

Chuck 15" 3-jaw hydraulic
Maximum swing 40"
Maximum turning diameter 25.5"
Turning length / centers 44"
X-axis travel 17"
Z-axis travel 44"
Spindle 2-speed geared head
Spindle speed 2,400 RPM
Spindle motor 55 HP
Spindle nose A2-11
Spindle bore approx. 4.6"

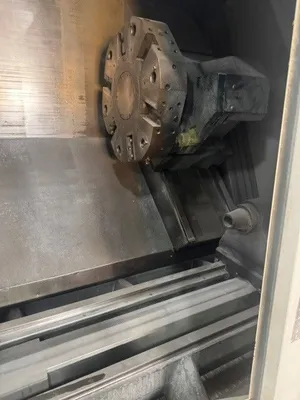

12-station turret Yes
Tailstock Programmable servo tailstock
Rapid traverse 710 IPM

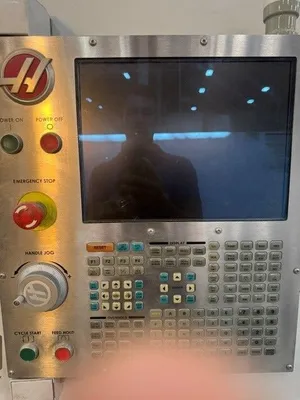

Control Haas CNC
Chip conveyor
Chip Conveyor

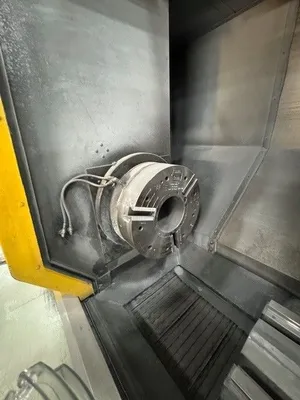

15" Hydraulic Chuck
Programmable Tailstock
Pneumatic Chuck (No Hydraulic Chuck)
