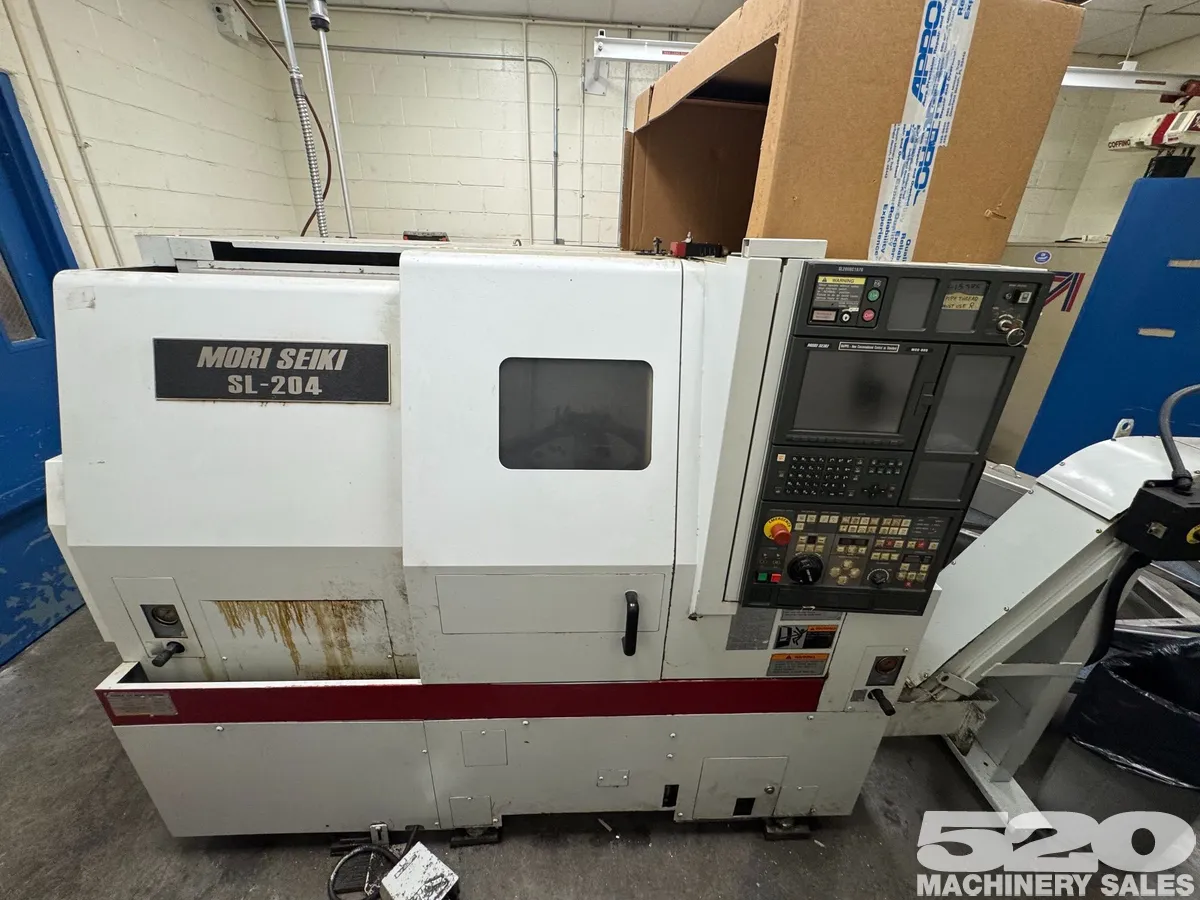

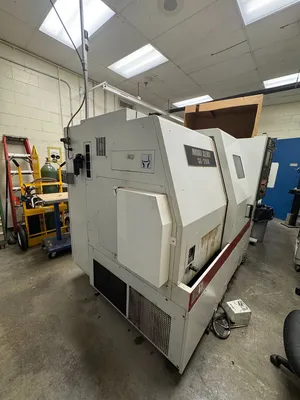

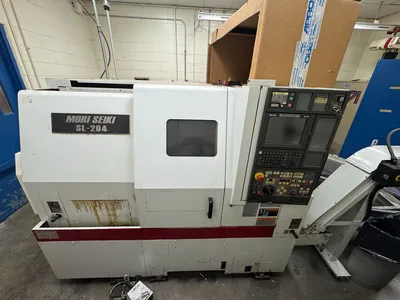

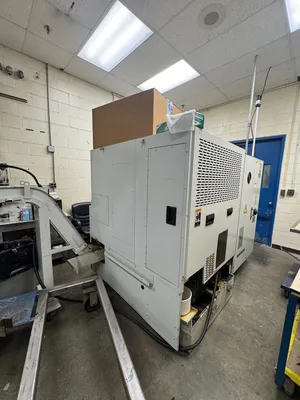

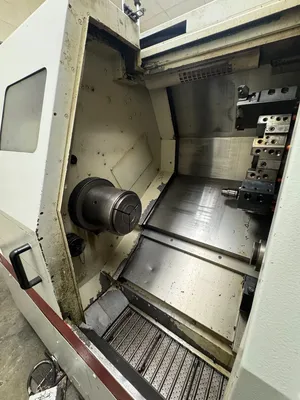

2002 Mori Seiki SL-204 CNC Turning Center
ConditionUsed
1 available
$14,900.00 USD
2002 Mori Seiki SL-204 CNC Turning Center. Machine is in very good condition and can be inspected under power as needed. Options include: chip conveyor, tailstock, and MSG-805 CNC control.

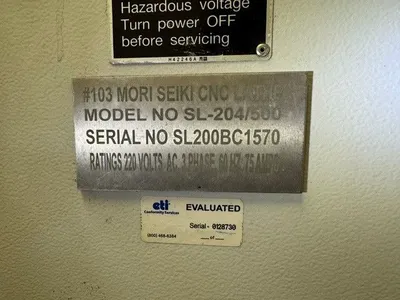

Mori Seiki SL-204/500 Specifications
Specification SL-204/500
Year 2002

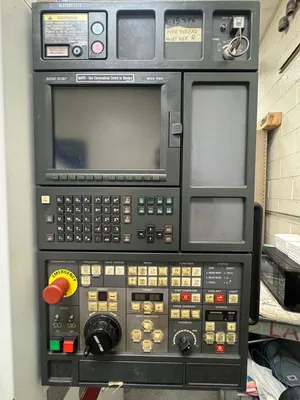

Control Mori Seiki MSG-805 / MELDAS
Type CNC 2-axis slant-bed turning center
Maximum turning length 19.7–20.0" (500 mm)
Maximum turning diameter Approx. 15.0" (380 mm)
Swing over bed Approx. 20.5" (520 mm)
Swing over cross slide Approx. 13.8" (350 mm)
X-axis travel Approx. 9.25" (235 mm)
Z-axis travel Approx. 19.5–20.5" (495–520 mm)
Spindle speed 4,000 RPM
Spindle bore Approx. 2.0" (50 mm)
Spindle nose A2-6 on some configurations

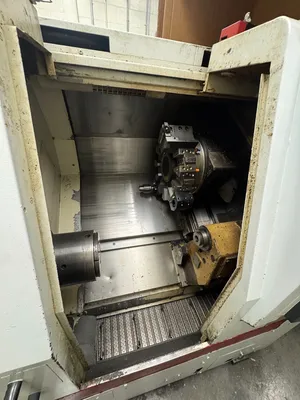

Turret 12-station
Tailstock Yes

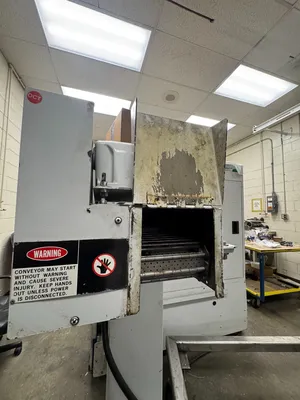

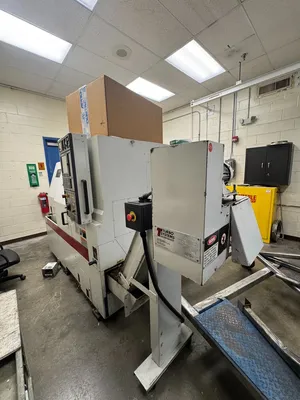

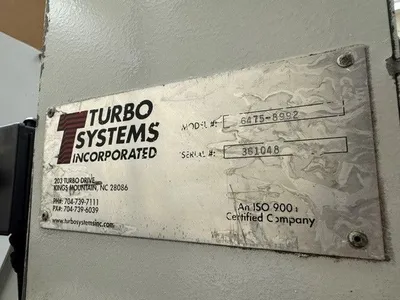

Chip conveyor Yes
Power Approximately 15 kW / 20 HP
2002 Mori Seiki SL-204 CNC Turning Center. Machine is in very good condition and can be inspected under power as needed. Options include: chip conveyor, tailstock, and MSG-805 CNC control.
Imperial
| Live Tooling | No |
| Y-Axis | No |
| Sub Spindle | No |
| Swing | 26.8" |
| Machining Length | 19.7" |
| # Axis | 2 |
| X Travel | 9.25" |
| Z Travel | 19.5" |
| Bar Capacity | 2" |
| Power | 15 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 15.3" |
| Tailstock | Yes |
| Barfeed | No |
| Control | CNC (Mori Seiki MSG-805) |
Mori Seiki SL-204/500 Specifications
Specification SL-204/500
Year 2002
Control Mori Seiki MSG-805 / MELDAS
Type CNC 2-axis slant-bed turning center
Maximum turning length 19.7–20.0" (500 mm)
Maximum turning diameter Approx. 15.0" (380 mm)
Swing over bed Approx. 20.5" (520 mm)
Swing over cross slide Approx. 13.8" (350 mm)
X-axis travel Approx. 9.25" (235 mm)
Z-axis travel Approx. 19.5–20.5" (495–520 mm)
Spindle speed 4,000 RPM
Spindle bore Approx. 2.0" (50 mm)
Spindle nose A2-6 on some configurations
Turret 12-station
Tailstock Yes
Chip conveyor Yes
Power Approximately 15 kW / 20 HP
