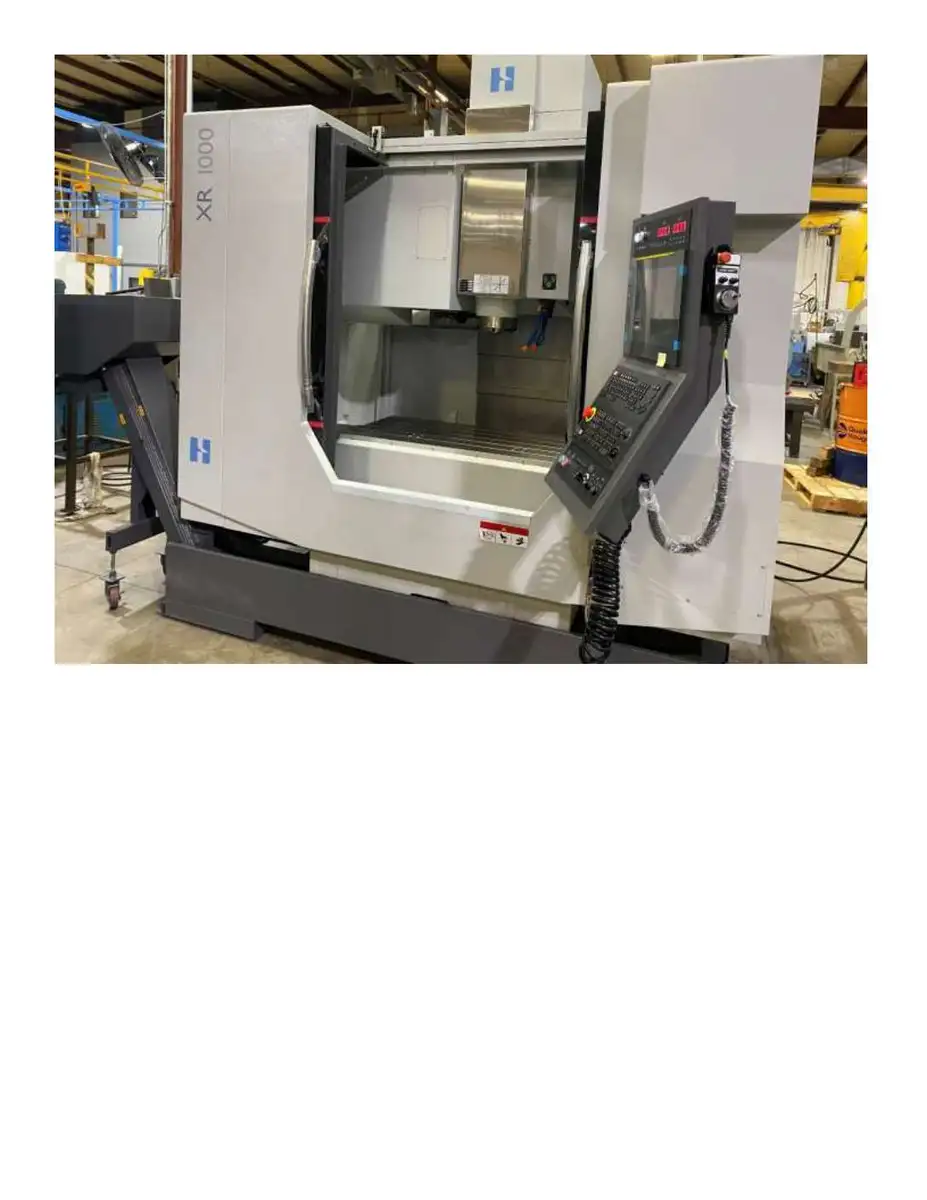

"Factory New" 2024 HARDINGE XR 1000 CNC Vertical Machining Center
ConditionNew
1 available
$107,700.00 USD
New
"Factory New" 2024 HARDINGE XR 1000 CNC Vertical Machining Center. Our customer purchased this machine and never had it installed. Machine is in new condition and can be inspected as needed. Options include: Renishaw tool and part probing, chip conveyor, Fanuc CNC control,
Specification XR1000
Type CNC Vertical Machining Center
X Travel 40"
Y Travel 24"
Z Travel 24"
Table Size 51.18" × 23.6"
Spindle Taper No. 40
Spindle Interface CT40BIG-PLUS
Spindle Speed 12,000 RPM
Spindle Type Direct Drive
Spindle Motor 30 HP
Tool Changer 30 tools standard
Rapid Traverse 787 IPM cutting/feed specification; earlier machines can differ

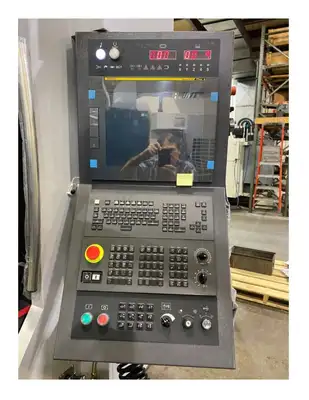

Control FANUC 0i-MF+
Table Load Approximately 2,000 lbs
Linear Ways 45 mm
Ballscrews 45 mm, double-nut, pre-tensioned
4th Axis 4th-axis ready
Chip Conveyor Included
Machine Weight Roughly 14,800Lbs
12,000 RPM Spindle
Chip Conveyor
4th Axis Prewire
Renishaw Probe and Tool Setter
Fanuc CNC Control
"Factory New" 2024 HARDINGE XR 1000 CNC Vertical Machining Center. Our customer purchased this machine and never had it installed. Machine is in new condition and can be inspected as needed. Options include: Renishaw tool and part probing, chip conveyor, Fanuc CNC control,
Imperial
| X | 40" |
| Y | 24" |
| Z | 24" |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CT-40 |
| Table-W | 47.2" |
| Table-L | 23.6" |
| # Axis | 3 |
Specification XR1000
Type CNC Vertical Machining Center
X Travel 40"
Y Travel 24"
Z Travel 24"
Table Size 51.18" × 23.6"
Spindle Taper No. 40
Spindle Interface CT40BIG-PLUS
Spindle Speed 12,000 RPM
Spindle Type Direct Drive
Spindle Motor 30 HP
Tool Changer 30 tools standard
Rapid Traverse 787 IPM cutting/feed specification; earlier machines can differ
Control FANUC 0i-MF+
Table Load Approximately 2,000 lbs
Linear Ways 45 mm
Ballscrews 45 mm, double-nut, pre-tensioned
4th Axis 4th-axis ready
Chip Conveyor Included
Machine Weight Roughly 14,800Lbs
12,000 RPM Spindle
Chip Conveyor
4th Axis Prewire
Renishaw Probe and Tool Setter
Fanuc CNC Control
