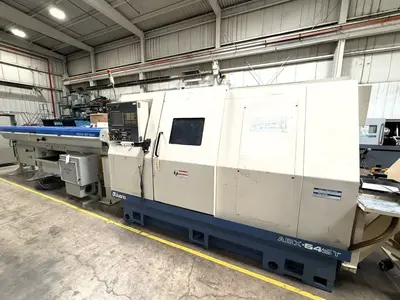

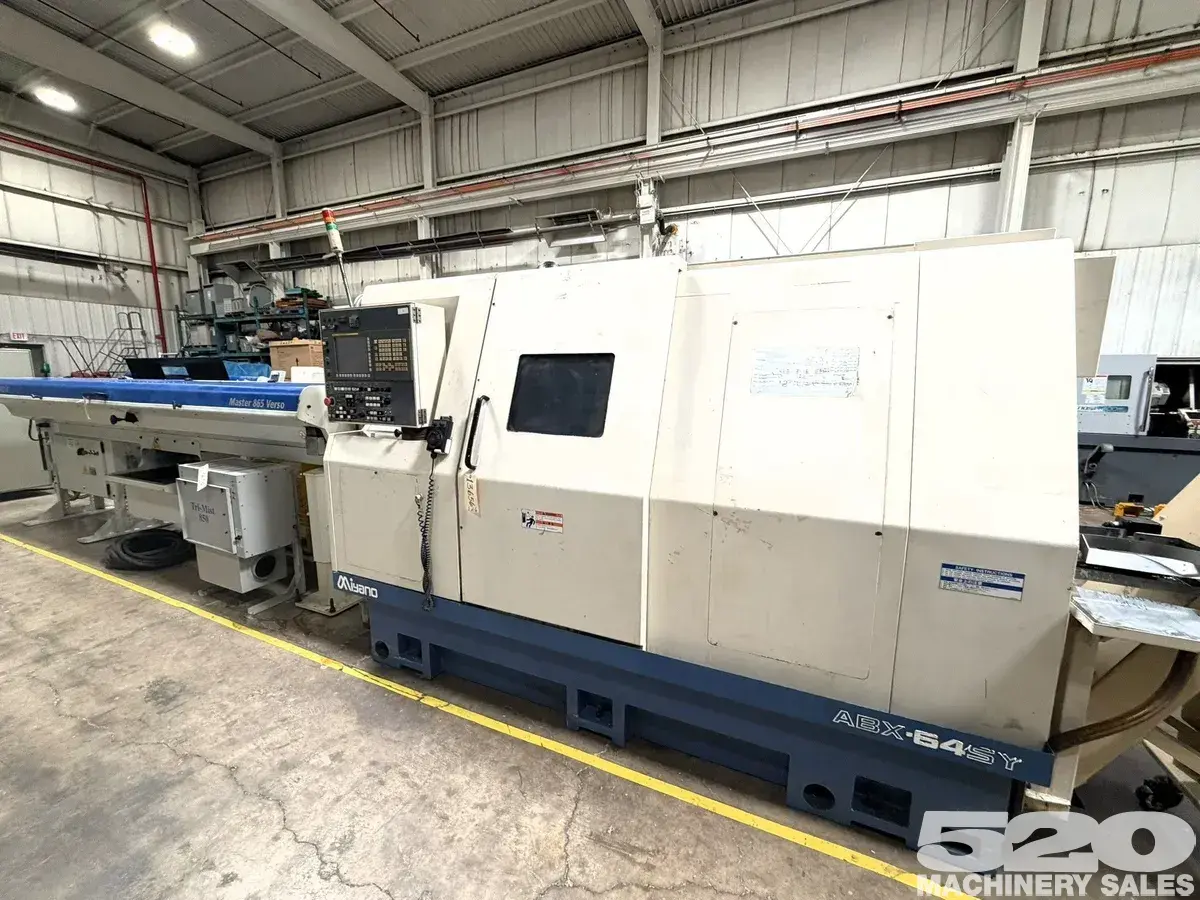

2012 MIYANO ABX-64SY CNC Turning Center W/ Sub-Spindle and "Y" Axis Live Tooling
ConditionUsed
1 available
2012 MIYANO ABX-64SY CNC Turning Center W/ Sub-Spindle and "Y" Axis Live Tooling. Machine is in good condition and can be viewed under power as needed.
SPECIFICATIONS:
Miyano ABX- 64SYY 9-Axis CNC Turning Centre with Fanuc 31i-A Control, Twin Spindle Twin Turrets - both with Y axis, Renishaw Tool Setter, Hand Controller, Parts Catcher, Parts Conveyor, Maximum Work dia 64mm, Max Work Length 118mm, Spindle 1 Hydraulic Chuck size 6" dia. 15/11kw Speeds to 4000"pm, Spindle 2 Hydraulic Chuck size 6" dia. 7.5/5.5kw Speeds to 4000rpm, (2) x 12 Station Turrets each with 12 Driven Stations to 6000rpm
Machine Specifications
Items ABX-51SYY2 ABX-64SYY2
Machining Capacity and Chuck System Maximum Machining Diameter of Bar Work SP1/SP2 51mm Dia./51mm Dia. 64mm Dia./51mm Dia.
Collet Chuck SP1/SP2 Stationary
Power Chuck SP1/SP2 6"/6" hydraulic drive
Standard Turning Length 125mm
Spindle Spindle Nose SP1/SP2 A2-6/A2-6 A2-8/A2-6
Spindle motor(30min./Cont.) SP1 15/11kW
SP2 7.5/5.5kW
Spindle Speed Range SP1 50 - 5,000min-1 40 - 4,000min-1
SP2 50 - 5,000min-1
Turrets(Upper L/R Turrets & Lower Turret) Type of Turret 12St.Turret
Shank Height of Square Turning Tool 20mm Sq.
Diameter of Drill Shank 40mm Dia. , 20mm Dia. , 25mm Dia.
Slide Stroke X1, X2 axis 190mm
Z1/Z2 axis 550mm/721mm
Y1, axis ±40mm
Zs axis 756mm
Rapid Traverse Rate X1, X2 axis 16m/min
Z1/Z2 axis 30/20m/min
Y1, axis 12m/min
Zs axis 30m/min
Revolving Tools(Option) Maximum Number of Revolving Tools 24
Rotation speed of revolving tools 60 - 6,000min-1
Revolving Tool Motor AC Servo 4.5kW
Machine Dimensions Machine Height 2,222mm
Floor Space 3,290×2,204mm
Machine Weight 10,750kg 10,900kg

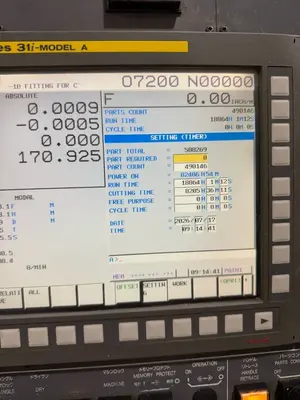

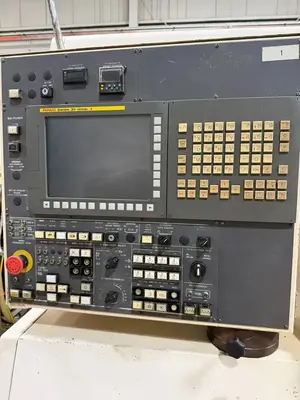

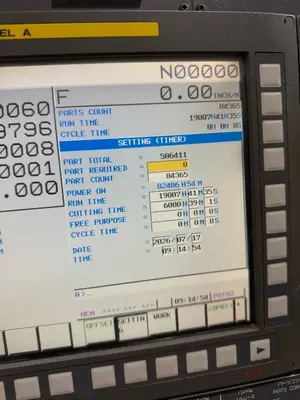

Fanuc CNC Control 31i-A

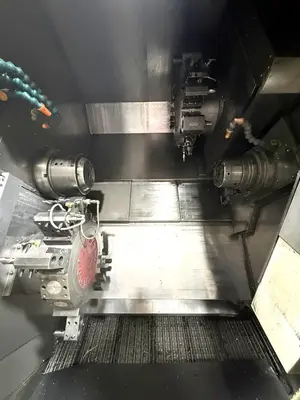

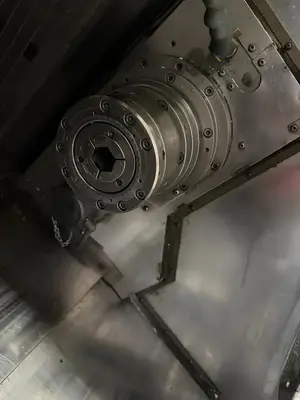

Main and sub spindles
(2) C-axis
Y-axis

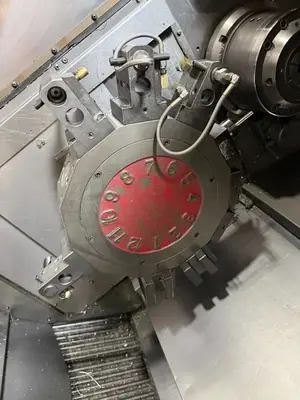

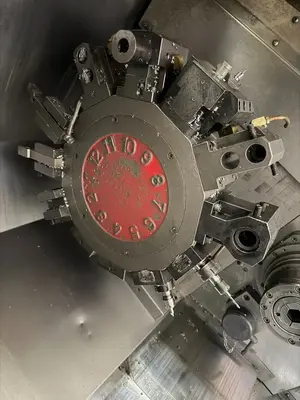

(2) live turrets
tool setter

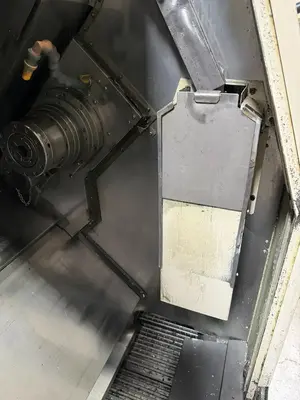

parts catcher

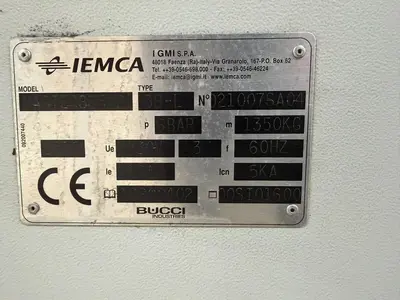

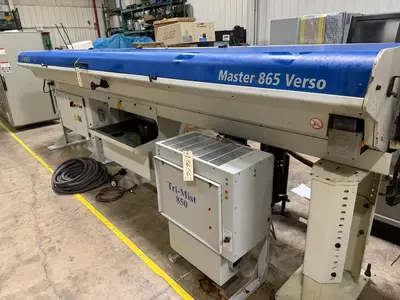

Iemca Master 865MP Bar feeder

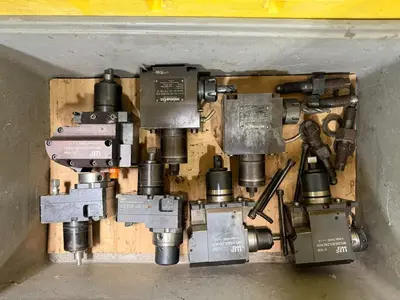

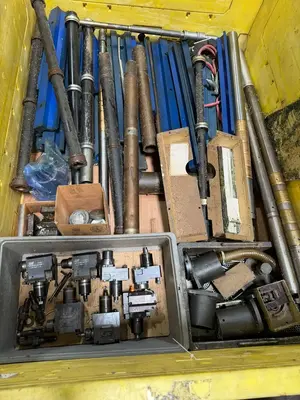

Lots of Live tools
2012 MIYANO ABX-64SY CNC Turning Center W/ Sub-Spindle and "Y" Axis Live Tooling. Machine is in good condition and can be viewed under power as needed.
Imperial
| # Axis | 6 |
| Machining Length | 125 mm |
| Chuck Size | 6" |
| Bar Capacity | 64 mm |
| Power | 15 kW |
| Max RPM | 5,000 RPM |
| Tailstock | No |
SPECIFICATIONS:
Miyano ABX- 64SYY 9-Axis CNC Turning Centre with Fanuc 31i-A Control, Twin Spindle Twin Turrets - both with Y axis, Renishaw Tool Setter, Hand Controller, Parts Catcher, Parts Conveyor, Maximum Work dia 64mm, Max Work Length 118mm, Spindle 1 Hydraulic Chuck size 6" dia. 15/11kw Speeds to 4000"pm, Spindle 2 Hydraulic Chuck size 6" dia. 7.5/5.5kw Speeds to 4000rpm, (2) x 12 Station Turrets each with 12 Driven Stations to 6000rpm
Machine Specifications
Items ABX-51SYY2 ABX-64SYY2
Machining Capacity and Chuck System Maximum Machining Diameter of Bar Work SP1/SP2 51mm Dia./51mm Dia. 64mm Dia./51mm Dia.
Collet Chuck SP1/SP2 Stationary
Power Chuck SP1/SP2 6"/6" hydraulic drive
Standard Turning Length 125mm
Spindle Spindle Nose SP1/SP2 A2-6/A2-6 A2-8/A2-6
Spindle motor(30min./Cont.) SP1 15/11kW
SP2 7.5/5.5kW
Spindle Speed Range SP1 50 - 5,000min-1 40 - 4,000min-1
SP2 50 - 5,000min-1
Turrets(Upper L/R Turrets & Lower Turret) Type of Turret 12St.Turret
Shank Height of Square Turning Tool 20mm Sq.
Diameter of Drill Shank 40mm Dia. , 20mm Dia. , 25mm Dia.
Slide Stroke X1, X2 axis 190mm
Z1/Z2 axis 550mm/721mm
Y1, axis ±40mm
Zs axis 756mm
Rapid Traverse Rate X1, X2 axis 16m/min
Z1/Z2 axis 30/20m/min
Y1, axis 12m/min
Zs axis 30m/min
Revolving Tools(Option) Maximum Number of Revolving Tools 24
Rotation speed of revolving tools 60 - 6,000min-1
Revolving Tool Motor AC Servo 4.5kW
Machine Dimensions Machine Height 2,222mm
Floor Space 3,290×2,204mm
Machine Weight 10,750kg 10,900kg
Fanuc CNC Control 31i-A
Main and sub spindles
(2) C-axis
Y-axis
(2) live turrets
tool setter
parts catcher
Iemca Master 865MP Bar feeder
Lots of Live tools
