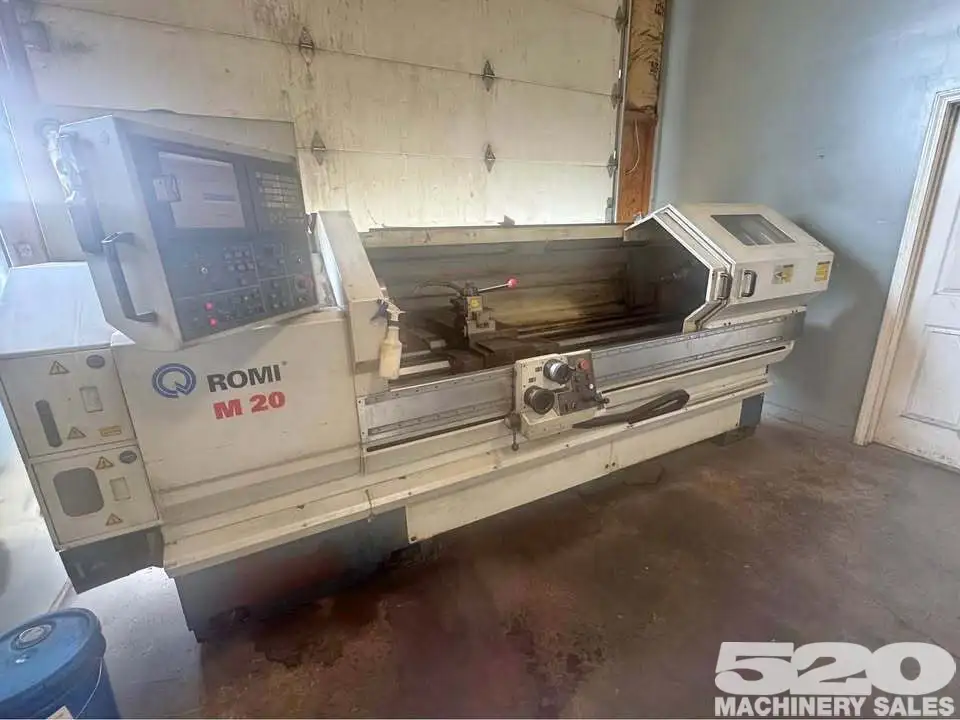

2004 ROMI M20 CNC Lathe W/ Tailstock

Swing over bed: 20" (508 mm)
Machining length: 60" (1,524 mm) or 80" (2,032 mm) depending on configuration
Swing over cross slide: 10" (254 mm)
Swing over carriage: 17.7" (450 mm)
Distance between centers: 80" (2,032 mm)
Bar capacity: 3" (76.2 mm)
Turning diameter: 20.47" (519.94 mm)
Chuck size: 12" (304.8 mm)
Tailstock: Yes (quill diameter 3.15", taper hole 4MT)
Performance
Power: 15 HP (11.2 kW)
Max spindle speed: 3,000 RPM (variable range 2–2,200 RPM)
Rapid traverse:
X-axis: 295 IPM
Z-axis: 394 IPM
Cross slide travel (X-axis): 11.02" (280 mm)
Longitudinal travel (Z-axis): 80" (2,032 mm)
Bed width: 13.39" (340 mm)
Control & Features
NC control: Fanuc 21i-T with manual guidance, conversational, G-code, and teach modes
Handwheels: 2 MPG handwheels for manual operation
Coolant system: Integrated
Chip pan: Included Tank dimensions: 100" x 40" x 22" (LxWxH)
