2017 TORNOS MULTISWISS 8X26

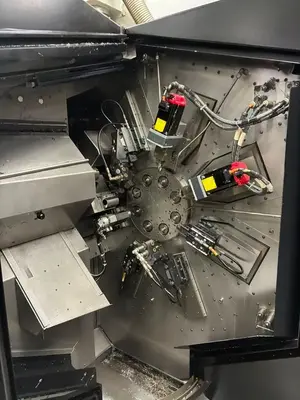

TORNOS MultiSwiss 8x26

CNC Multi-Spindle Swiss-Type Screw Machine

Mfd. 2017

3 Y-Axes

Fanuc 30i-B Control

8 Main Spindles

26 mm Capacity

Counter Spindle

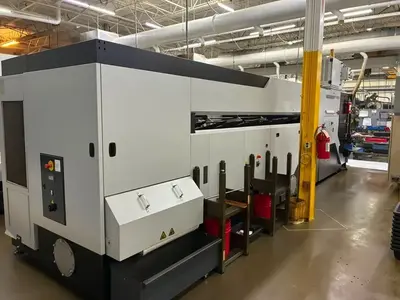

Integrated Bar Loader

High-Pressure Coolant System

Chip Conveyor

Oil Mist Collector

Approx. 8,500 Cutting hours

Approx. 11,450 Hours

Assorted tooling included.

Available under power for inspection.

Videos available on request

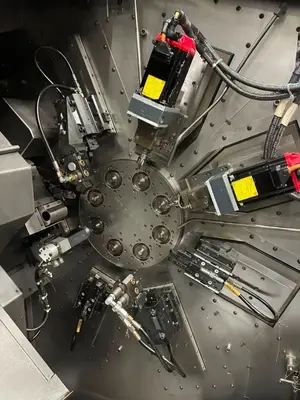

MultiSwiss 8x26 with 3 Y axes

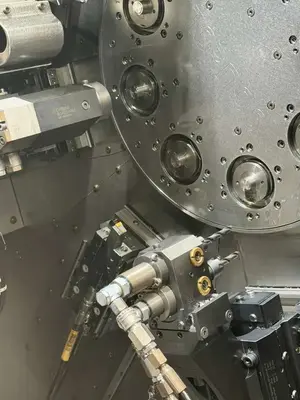

8 Motorspindles, 11kW - Max RPM: 8,000
Spindle capacity: 26 mm, Z stroke: 75 mm
(max part length: 65 mm)

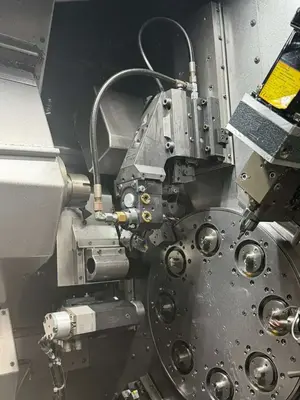

5 slides with X axes, posit. 1-2-3-7-8
X stroke of 80 mm

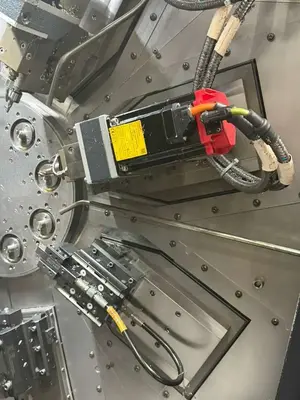

3 slides with X-Y axes, posit. 4-5-6
X stroke of 55mm, Y stroke of +/-16.5mm
Counter spindle, 11kW - Max RPM: 8,000
Z stroke of 150mm and X of 170mm
Numerical control Fanuc 30iB
Inbedded PC with a 17" screen
TB-DECO Programming system
Independent C axis on each spindle
in main and counter operations
Use of the reduction tubes not
required for 26 mm dia bars. (guide
tubes required for all other diameters)
(requires 0060 or 0065 or 0070 or 0075)

Motorization for the counter operations
type AT

End of bar recovery, 135 mm max

Pneumatic part recovery with a channel
to bring the part outside the machine
Max part length: 65 mm

Part conveyor belt

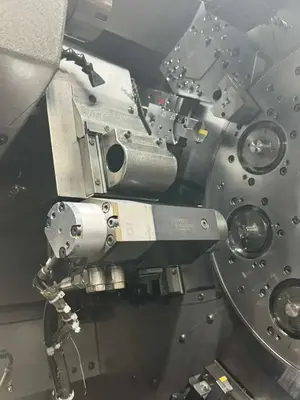

Active rechucking system type GWS
mounted in position 1
hydraulically activated
with 1x position for turning tool 16x16
with 1x position for front
stationary unit Ø25mm

Coolant oil tank
under the machine with..
Signal lamp

Operating instructions in English

CNC machine language in English

Line voltage 440-480 V 60 Hz +/- 5%

110 V US plug and plate, USA

Collet for active
rechucking 273-0210
Specify diameter at time of order

1 pickup collet from Ø 3-26mm
Includes blank ejector
Support for GWS cut off toolholder
mounted in position 8
277-1541
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
3.00 PCE
2.00 PCE
1.00 PCE
1.00 PCE

Item / Designation
Date 09/19/2017
Quantity
Page 4 / 13
Unit Price
USD
GWS cutoff toolholder
type ISCAR
(requires 1540)
ATTACHMENTS

Electrical interface for drilling
or polygon attachments
3 attachments in position 2 to 7

Electrical interface for drilling
or polygon attachments
3 additional attachments in position 2 to 7
(requires 2003)

Preparation for 4 HF spindles

Container ***

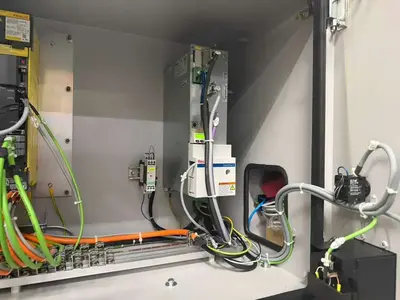

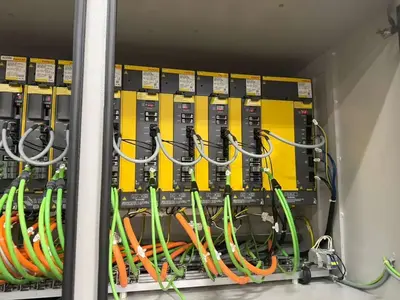

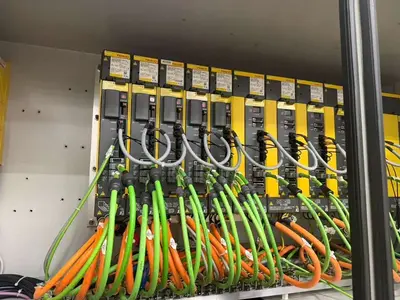

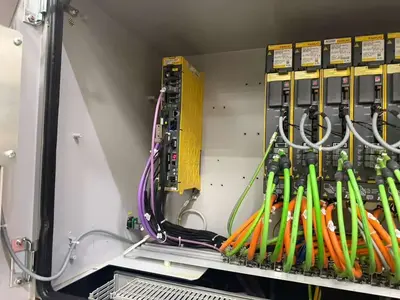

Electrical cabinet
Coolant oil tank, 2,000 liters
Coolant pump, 150 l/min, 4 bars
Paper filtration system to 50 µm
Filtration system to 5 µm for hydrostatic
Hydrostatic center
Bar loader, L=3 m, Ø 5 à 26mm
with reserve between 34 and 225 bars
(according to diameter)

High pressure pump, 37 l/min, 40 bars

High pressure pump, 36 l/min, 80 bars

Frequency variator, 11 kW
for the hydrostatic pump
(requires 3001)
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE
1.00 PCE

Programming control for variator
(requires 3040 or 3042 0r 3044)

Chip tank recovery for paper filter

Belt type chip conveyor, type MAYFRAN,
with sump pump

Chip tank for conveyor ***
(requires 3200)

Refrigeration group, 38kW
integrated to the container
Oil mist extractor
2500m³/h
Electrostatic filter.
Software package 'all included"
- Telemaintenance, simple
- Machine warmup
- Tool management
- Polar coordiantes
SPECIFIC DEVELOPMENT

MultiSwiss Short bar kit for 6 foot (1828 mm) bars.
For 1 capacity range. Includes
1x Pushrod dia to be defined at time at order
1x Standard short bar bracket
