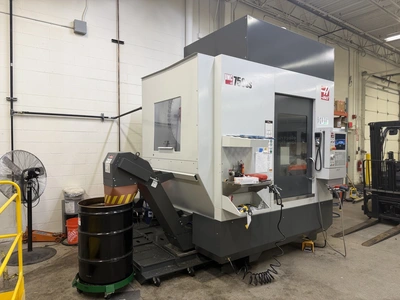

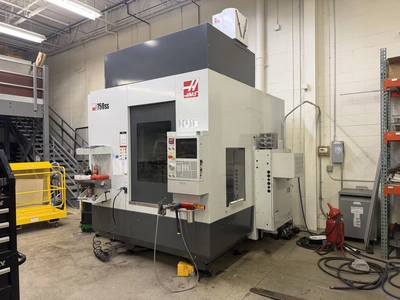

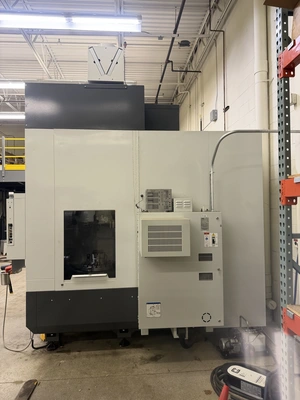

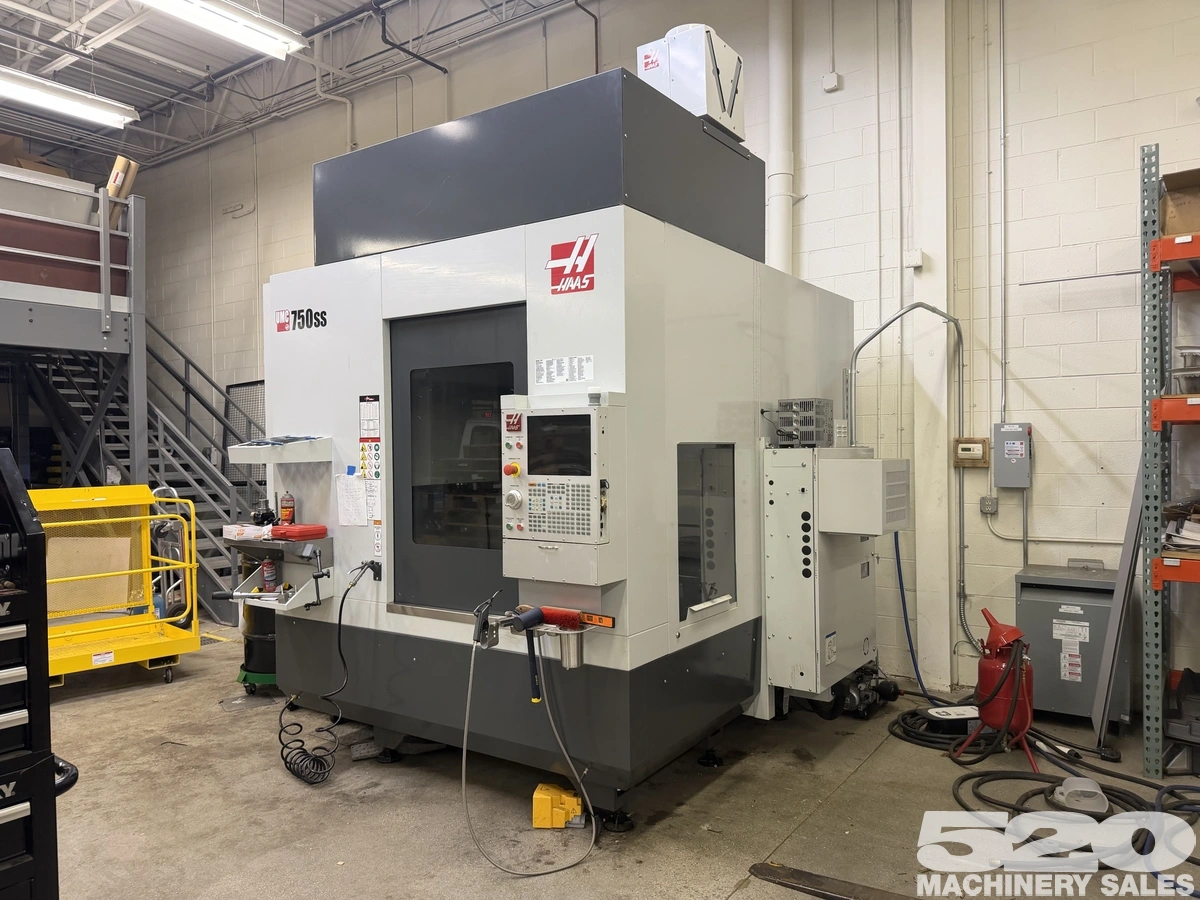

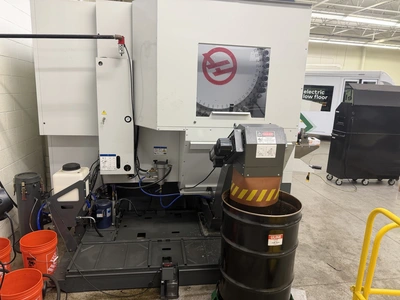

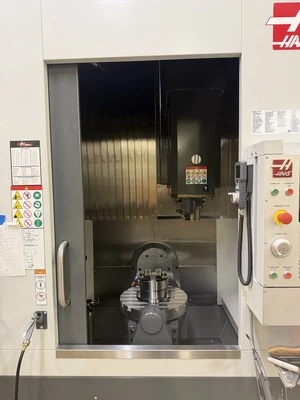

2020 HAAS UMC-750SS 5 Axis Universal Machining Center

Specification UMC-750SS
Type 5-axis universal machining center
Spindle taper 40 taper — CT40 / BT40 / HSK-A63
Spindle speed 12,000 RPM standard
Spindle motor 30 hp (22.4 kW)
Spindle torque 90 ft-lb @ 2,000 RPM
X travel 30" (762 mm)
Y travel 20" (508 mm)
Z travel 20" (508 mm)
B-axis +120° / −35°
B-axis speed 170°/sec
C-axis 360° continuous
C-axis speed 179°/sec
Platter diameter 19.7" (500 mm)
Max part swing 27" (686 mm)
Max platter load 660 lb (300 kg)
Tool changer 30+1 standard
Tool-to-tool 1.8 sec
Chip-to-chip 2.4 sec
X/Y/Z rapids 1,200 IPM
Max cutting feed 833 IPM
Coolant capacity 55 gal (208 L)
Air requirement 4 SCFM @ 100 PSI
Electrical 220V, 3-phase, 70A
High voltage option 440V, 3-phase, 35A
Shipping weight ~14,250 lb basic
Shipping size 168" × 92.5" × 110"
