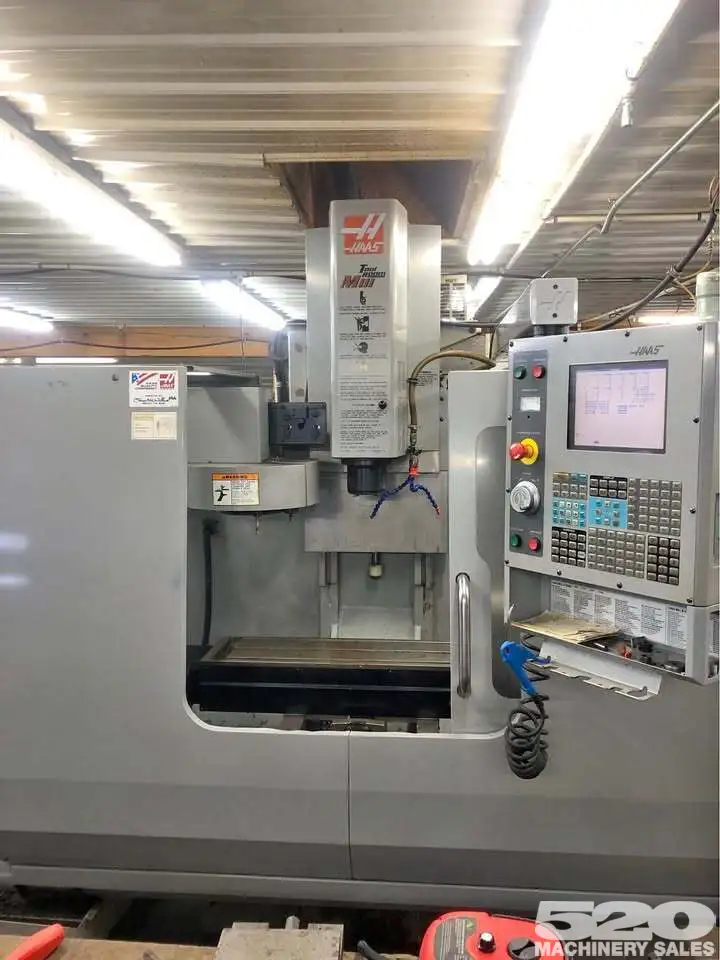

HAAS TM-1P CNC Vertical Machining Center W/ Haas HRT160 4th Axis Rotary Table

2006 Haas TM-1P Specifications
Specification Capacity
Machine type CNC toolroom mill / vertical machining center
X-axis travel 30 in. (762 mm)
Y-axis travel 12 in. (305 mm)
Z-axis travel 16 in. (406 mm)
Table size 47.75 × 10.5 in. (1,213 × 267 mm)
Maximum table load Approximately 350 lb. (159 kg)
Spindle taper CAT 40
Maximum spindle speed 6,000 RPM
Spindle motor 7.5 hp (5.6 kW)
Tool changer 10-station automatic tool changer
Maximum tool diameter Approximately 3.5 in.
Maximum tool weight Approximately 12 lb.
Rapid traverse Approximately 200 IPM
Cutting feed rate Up to approximately 200 IPM
Spindle-to-table distance Approximately 4–20 in.
Number of axes 3
CNC control Haas CNC control
Machine enclosure Fully enclosed
Approximate weight 3,850–4,400 lb.
Approximate floor space 96 × 72 in.
Approximate height 99–103 in.
