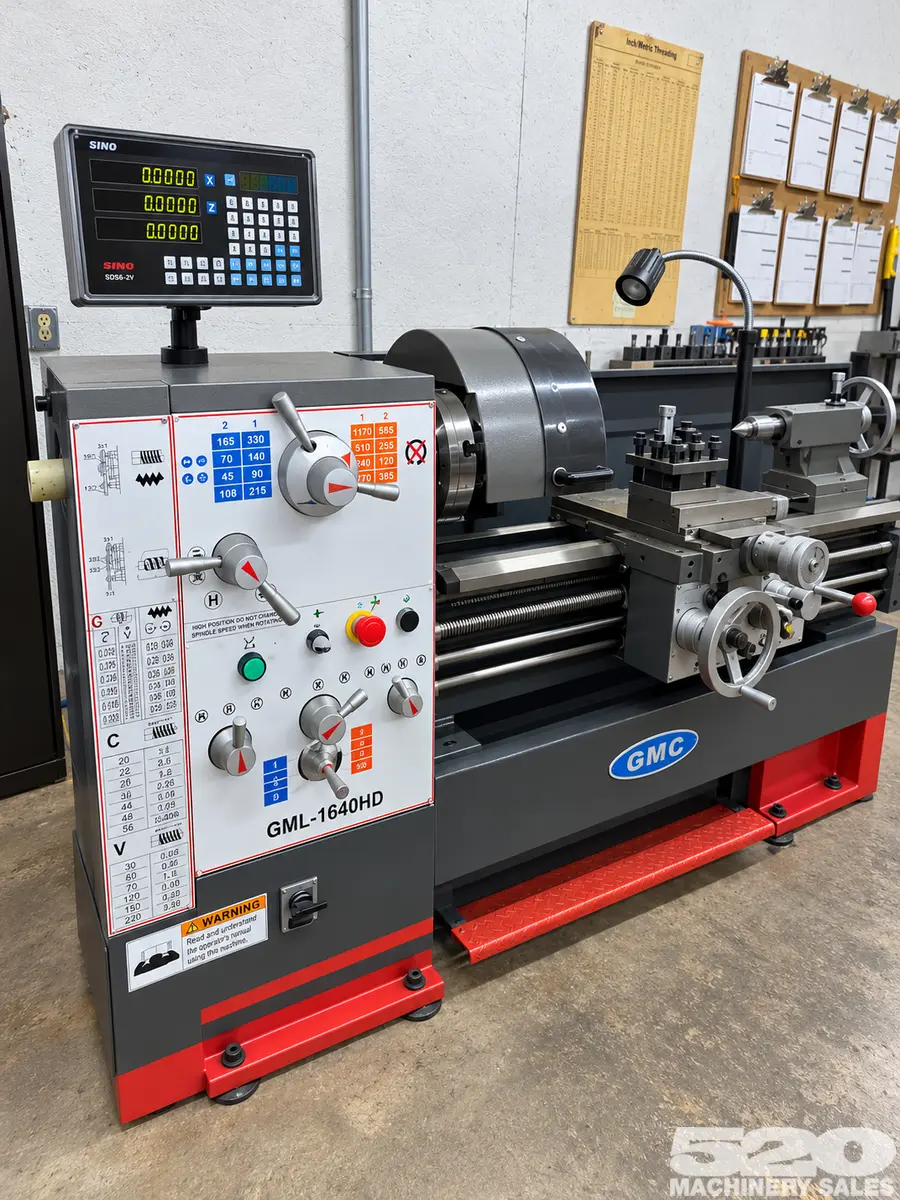

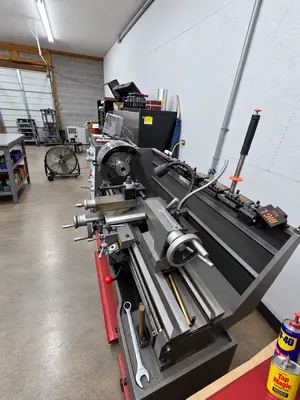

2022 GMC GML-1640HD Engine Lathe

Specification Capacity
Swing over bed 16-1/16 in.
Distance/length of workpiece 40 in.
Swing over cross slide 10-1/16 in.
Swing through removable gap 23-1/4 in.
Bed width 10-1/4 in.
Gap length to spindle 8-1/2 in.
Gap length to chuck jaws 3-1/2 in.
Spindle bore 2-1/16 in.
Spindle nose D1-6 Camlock
Spindle taper MT #6
Spindle speeds 45–1,800 RPM, 16 steps
Main motor 6 HP
Electrical 220 VAC, 3-phase
Longitudinal feeds 0.0018–0.070 IPR, 42 selections
Cross feeds 0.0009–0.030 IPR, 42 selections
Inch threading 2–70 TPI, 45 selections
Metric threading 0.20–14 mm, 39 selections
Module threading 0.3–3.6 mm, 18 selections
Diametral-pitch threading 8–40 DP, 21 selections
Cross-slide travel 8-1/2 in.
Compound/top-slide travel 4-1/4 in.
Tailstock-quill diameter 2-1/16 in.
Tailstock-quill travel 5 in.
Tailstock taper MT #4
Coolant-pump motor 1/8 HP
Approximate machine weight 4,150 lb.
Overall dimensions 79 × 38 × 56 in. (L×W×H)
Approximate shipping dimensions 80 × 36 × 70 in.
