| Chuck Size | 0.79" | 20.066 mm |
| Machining Length | 6.5" | 165.1 mm |
| Bar Capacity | 0.79" | 20.066 mm |
| Live Tooling | Yes | Yes |
| Y-Axis Milling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| # of Turrets | 1 | 1 |
| Turning Dia | 0.79" | 20.066 mm |
| Power | 5 hp | 3.7 kW |
| Max RPM | 8,000 RPM | 8,000 RPM |
| Tailstock | No | No |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 84 x 47 x 71 | 84 x 47 x 71 |
| Weight | 5070 | 5070 |
Maximum machining diameter 20 mm (0.787")
Maximum machining length 165 mm (6.50") per chucking
Main spindle speed 8,000 rpm
Back spindle speed 8,000 rpm
Main spindle motor 3.7 kW (about 5 hp)
Gang live tool speed 8,000 rpm maximum
Main spindle drilling / tapping 10 mm / M8
Back machining drilling / tapping 8 mm / M6
Tool positions 17 published for the A20VIPL
Machine weight Approximately 2,300 kg (5,070 lb)

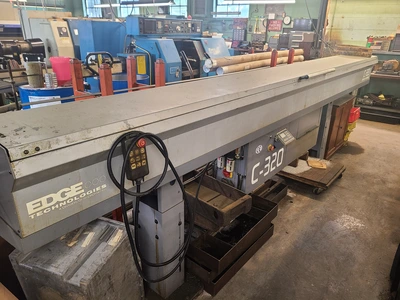

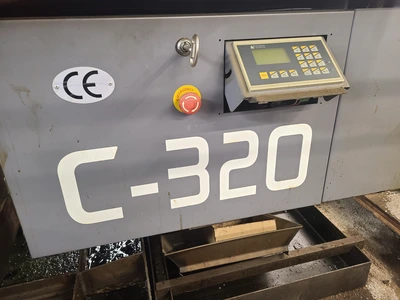

C320 Barfeeder Needs Repair
This equipment has been sold. Similar equipment available now is shown below.
