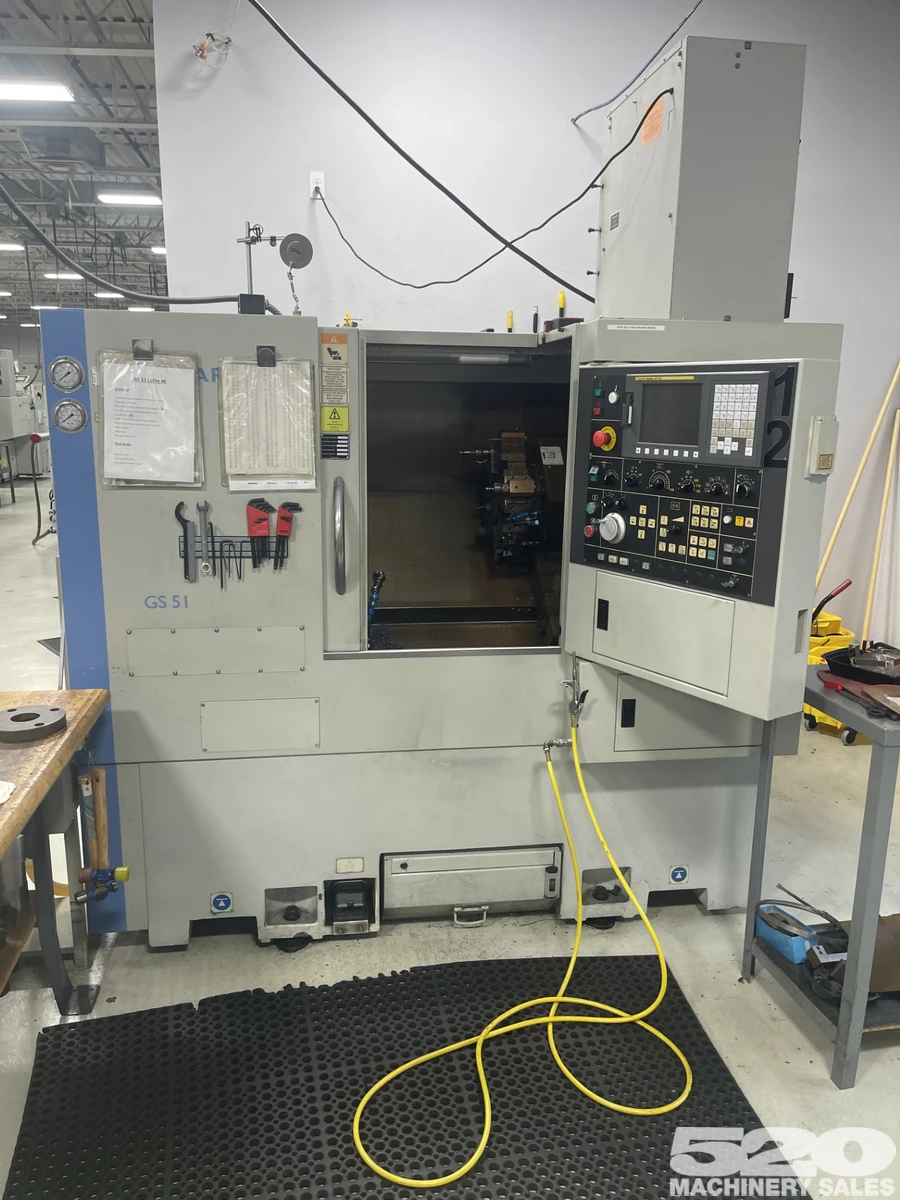

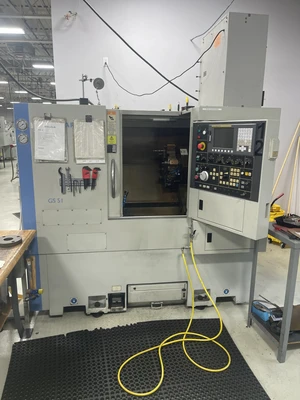

2011 Hardinge GS51 CNC Turning Center
ConditionUsed
1 available
2011 Hardinge GS51 CNC Turning Center. Used, precise, and reliable. 8" chuck, 17" swing, 17.95" machining length, 2" bar capacity, 11.1" turning diameter. Powered by 15 hp, max RPM of 5,000. Single turret and no live tooling.
Specification GS 51
Chuck size 8 in.
Bar capacity 2 in.
Swing 17 in.
Maximum turning diameter 11.1 in.
Distance between centers 17.95 in.
Maximum spindle speed 5,000 rpm
Turret 12 stations
Spindle nose A2-6 / 20C collet ready
2011 Hardinge GS51 CNC Turning Center. Used, precise, and reliable. 8" chuck, 17" swing, 17.95" machining length, 2" bar capacity, 11.1" turning diameter. Powered by 15 hp, max RPM of 5,000. Single turret and no live tooling.
Imperial
| Chuck Size | 8" |
| Swing | 17" |
| Machining Length | 17.95" |
| Bar Capacity | 2" |
| Live Tooling | No |
| Y-Axis Milling | No |
| Sub Spindle | No |
| # of Turrets | 1 |
| Turning Dia | 11.1" |
| Power | 15 hp |
| Max RPM | 5,000 RPM |
| Control | CNC (Fanuc 0i-TD) |
| Dimensions | 79 L x 65 D x 70 H |
| Weight | 6200 lb |
Specification GS 51
Chuck size 8 in.
Bar capacity 2 in.
Swing 17 in.
Maximum turning diameter 11.1 in.
Distance between centers 17.95 in.
Maximum spindle speed 5,000 rpm
Turret 12 stations
Spindle nose A2-6 / 20C collet ready
