| # Axis | 5 | 5 |
| Grinding Wheel Dia. | 10" | 254 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 9,000 RPM | 9,000 RPM |
| Control | CNC (FANUC) | CNC (FANUC) |
5 axis CNC, Fanuc control and Fanuc servo drives
Glass scales
Travels: X 15.7", Y 11", Z 11"

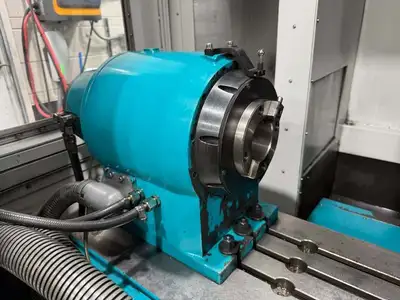

A axis workhead, ISO 50 taper
C axis rotating grinding head, 340 degrees
Double ended grinding spindle, HSK50, holds up to 6 wheels
Spindle power 7.5 kW (about 10 hp), up to 9,000 rpm
Max wheel diameter about 10"
Tool probe
Electrical: 3 x 400V, 40A (transformer included)
Machine no. 20821
Approx. 94" x 94" x 87" tall, approx. 12,000 lbs
Transformer
Glass Scales
Fanuc CNC Control
This equipment has been sold. Similar equipment available now is shown below.
