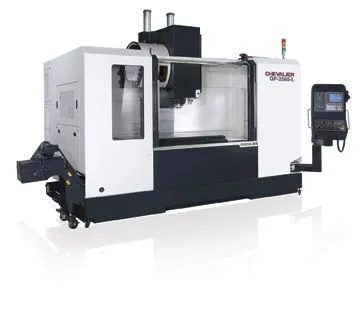

2025 "Demo" CHEVALIER QP2560-L CNC Vertical Machining Center
ConditionUsed
1 available
$122,250.00 USD
2025 "Demo" CHEVALIER QP2560-L CNC Vertical Machining Center. Machine has not been used and is being sold as a "Demo" machine.
TEM Description S.A.E. Metric
Control Fanuc 0i-M – –
Table Table size 65.0" x 25.0" 1,650 x 635 mm
Max. table load 3,300 lbs. 1,500 kg
Travel X / Y /Z travel 60.0" / 25.0" / 25.0" 1,525 / 635 / 635 mm
Spindle Spindle nose to table surface 4.9"~29.9" 125~760 mm
Spindle center to column 27.0" 685 mm
Spindle taper #40 Big Plus –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 120~12,000 rpm –
Spindle diameter 2.8" 70 mm
Feed rates Rapid traverse (X / Y / Z) 1,181/1,181/944 ipm 30/30/24 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 24+1 arm type –
Tool shank CT40 –
Tool change time (tool-to-tool) 2 sec. –
Pull stud P40T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 11.8" 300 mm
Max. tool weight 15.4 lbs. 7 kg
Machine dimensions Floor space (W x D x H) 172.0" x 143.1" x 129.1" 4,370 x 3,635 x 2,380 mm
Net weight 18,700 lbs. 8,500 kg
2025 "Demo" CHEVALIER QP2560-L CNC Vertical Machining Center. Machine has not been used and is being sold as a "Demo" machine.
Imperial
| X | 60" |
| Y | 25" |
| Z | 25" |
| Power | 20 hp |
| RPM | 10,000 RPM |
| # ATC | 24 |
| Taper | CT40 |
| Table-W | 25" |
| Table-L | 65" |
| # Axis | 3 |
| Control | CNC (Fanuc Oi-M) |
TEM Description S.A.E. Metric
Control Fanuc 0i-M – –
Table Table size 65.0" x 25.0" 1,650 x 635 mm
Max. table load 3,300 lbs. 1,500 kg
Travel X / Y /Z travel 60.0" / 25.0" / 25.0" 1,525 / 635 / 635 mm
Spindle Spindle nose to table surface 4.9"~29.9" 125~760 mm
Spindle center to column 27.0" 685 mm
Spindle taper #40 Big Plus –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 120~12,000 rpm –
Spindle diameter 2.8" 70 mm
Feed rates Rapid traverse (X / Y / Z) 1,181/1,181/944 ipm 30/30/24 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 24+1 arm type –
Tool shank CT40 –
Tool change time (tool-to-tool) 2 sec. –
Pull stud P40T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 11.8" 300 mm
Max. tool weight 15.4 lbs. 7 kg
Machine dimensions Floor space (W x D x H) 172.0" x 143.1" x 129.1" 4,370 x 3,635 x 2,380 mm
Net weight 18,700 lbs. 8,500 kg
