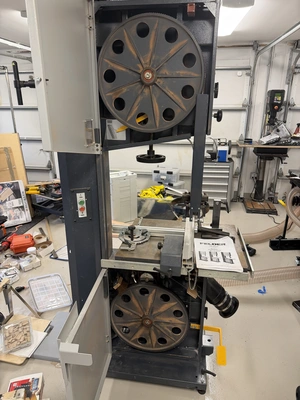

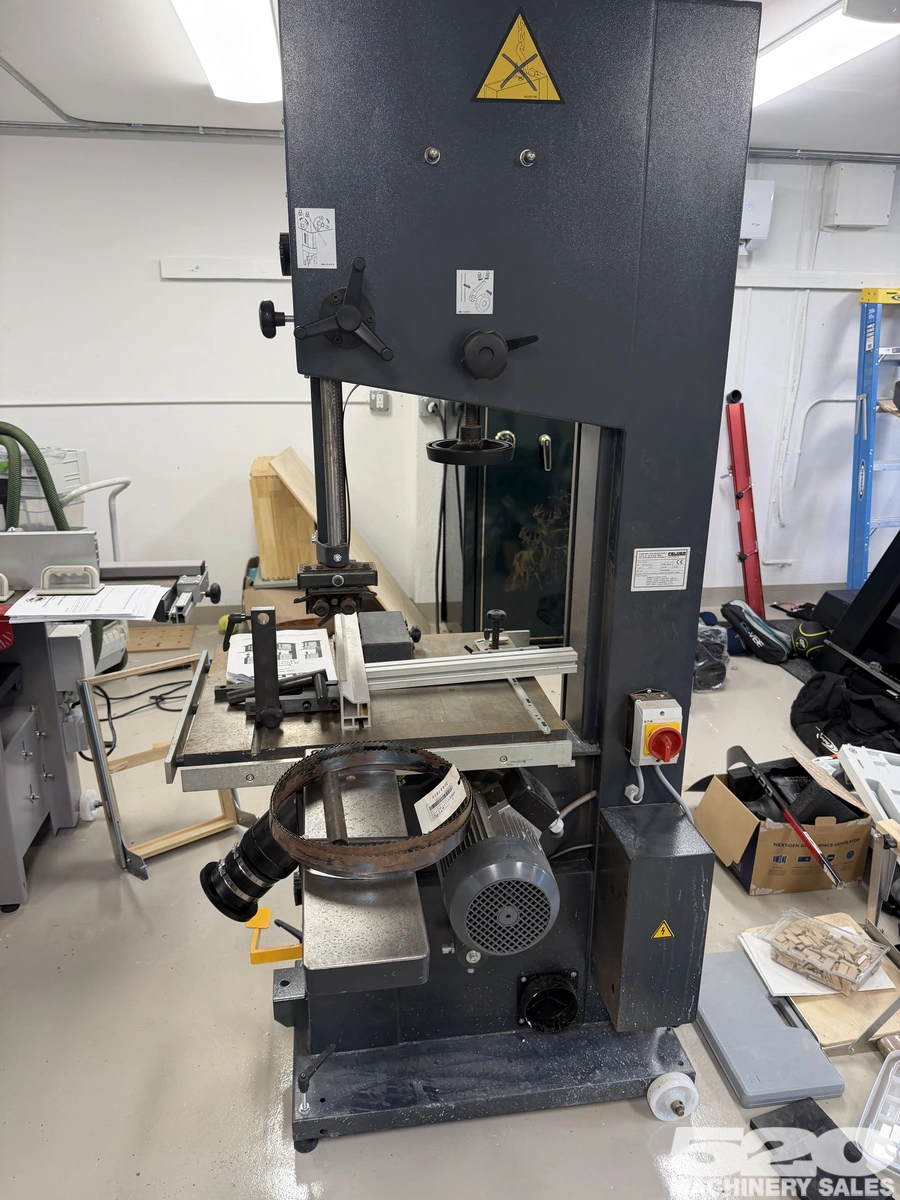

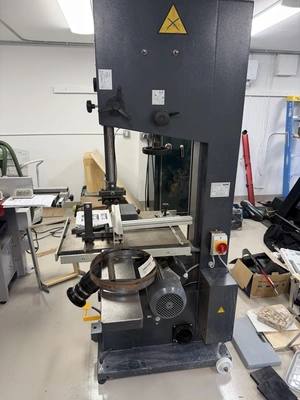

2020 FELDER FB 510 Vertical Band Saw

• Cutting Height: 16⅛" (410 mm)
• Rip Capacity / Throat: 18⅞" (480 mm)
• Roller (Flywheel) Diameter: 19⅝" (500 mm)
• Motor Power: 3 kW / 4.0 HP (1 x 230 V, 60 Hz)
• Blade Length: 170" (4318 mm)
• Blade Width: ¼" to 1⅛" (6 mm – 25 mm)
• Cutting Speed: 60.15 ft/sec (1100 m/min)
• Table Size: 19⅝" x 25½" (500 x 640 mm)
• Table Tilt: -10° to +45°
• Working Height: 33⅞" (859 mm)
• Total Height: 78½" (1995 mm)
• Dust Extraction Ports: 2 x 4¾" (2 x 120 mm)
• Machine Weight: Approx. 550 lbs (250 kg)
Key Features
• Cast Iron Wheels: Electronically balanced solid cast-iron flywheels for smooth, low-vibration momentum.
• Ceramic Guides: Upper and lower X-Life ceramic blade guides for enhanced precision and stability.
• Fence System: Aluminum high-low rip fence plate with steel mounting rails.
• Safety: Integrated blade tension indicator and safety foot brake with a micro-switch motor shutdown.
