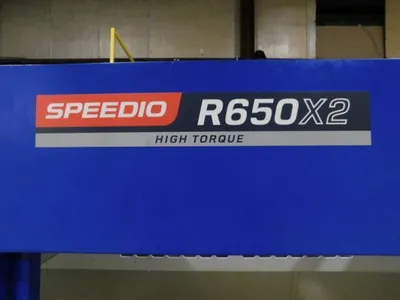

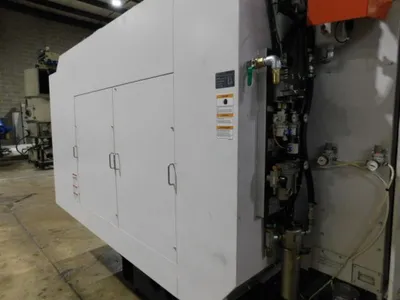

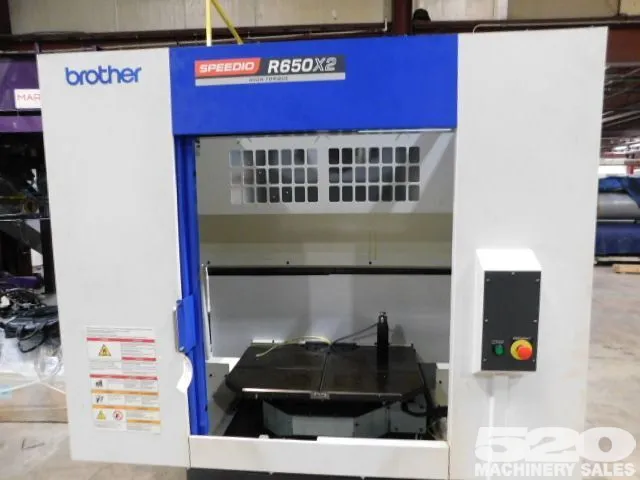

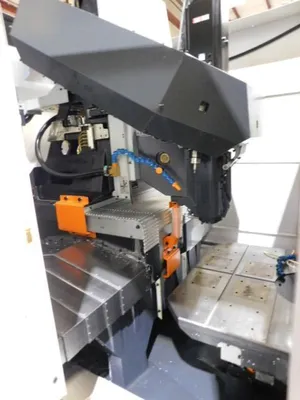

2022 BROTHER SPEEDIO R650X2 Dual Pallet Drill and Tap Machine
ConditionUsed
1 available
$124,900.00 USD
2022 BROTHER SPEEDIO R650X2 Dual Pallet Drill and Tap Machine. Machine is in great condition and can be inspected under power as requested.
Model: Speedio R650x2
Pallet size: 31.5” x 15.7”
Pallet indexing time: 3.4 seconds
Travels: 25.6” x 15.7” x 12”
Rapid travels: 1,969 ipm in X, Y, & Z
Cutting feed rates: 0.04-1,181 ipm
Distance from table top to nose: 9.8” – 21.8”
Max. jig height: 16.5”
Spindle RPM: 10,000
Max. tapping RPM: 6,000
Spindle taper: Cat 30 Big Plus
Spindle HP: 17/11.7 HP High Torque

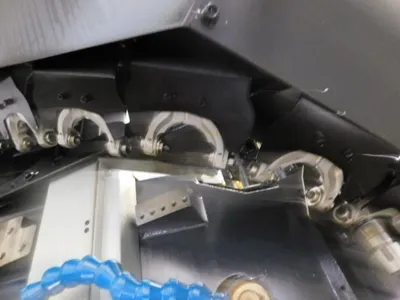

ATC capacity: 22
Tool to tool: 0.8 sec
Chip to chip: 1.6 sec
Dimensions: 74.7” x 135.7” x 106.1” high x 7,716 lbs.
Shipping dimensions:
Machine: 75” x 120” x 88” high

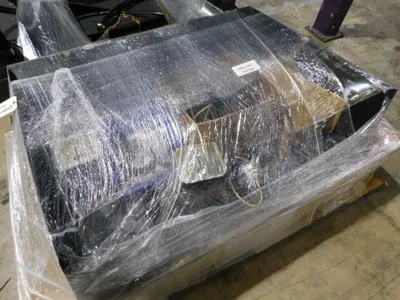

Coolant pan: 66” x 34” x 28” high

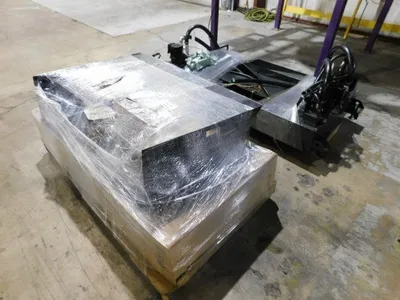

Chip pan: 35” x 60” x 27” high

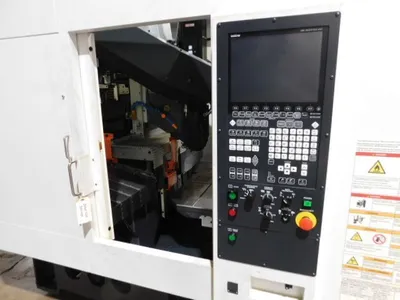

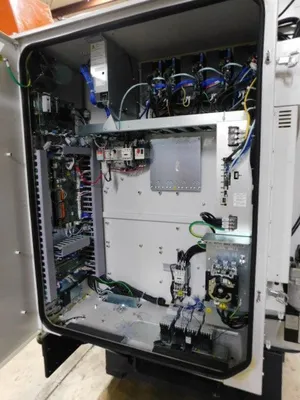

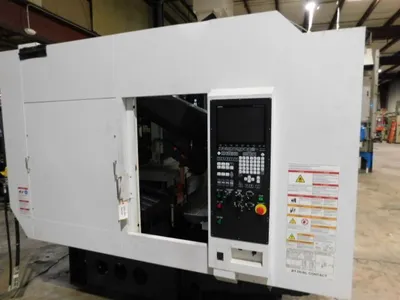

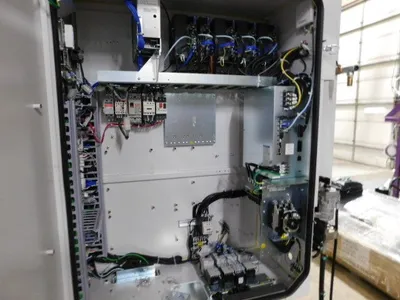

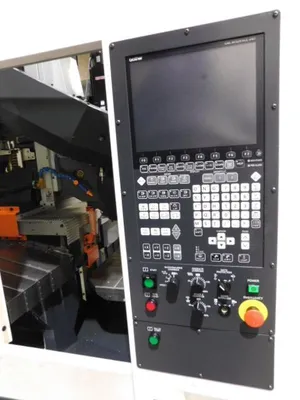

CNC – C00 (WX) control with PLC

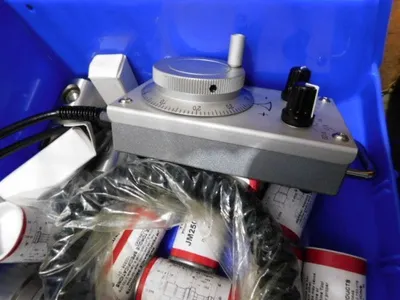

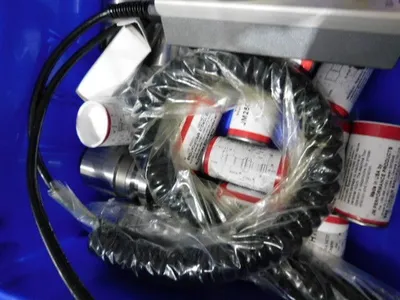

Manual Pulse Generator
3-stage light
Work light
Spindle speed override

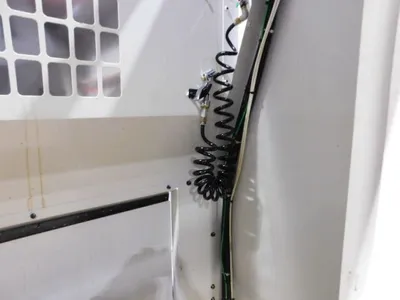

Shower gun

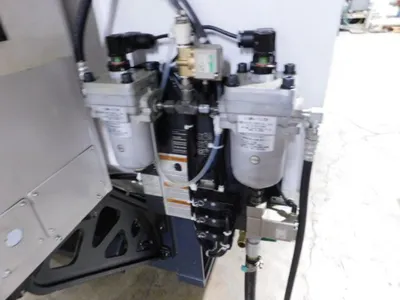

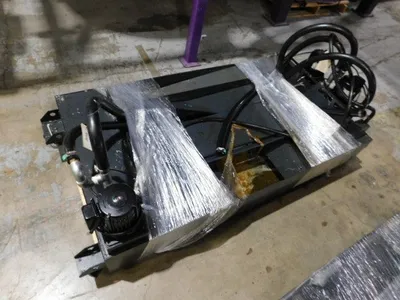

Coolant system w/200L tank
CTS prepped
Top cover
Door interlock

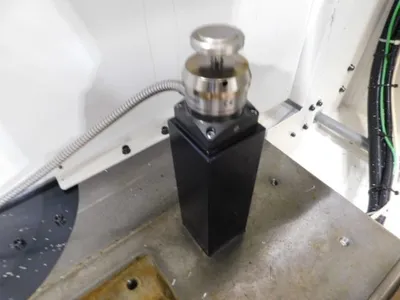

Blum ZX Speed wired w/150mm riser

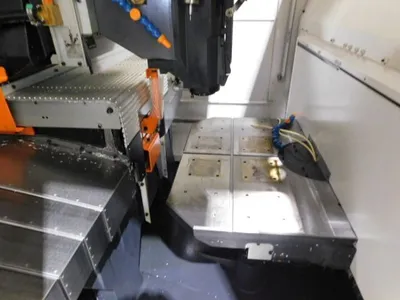

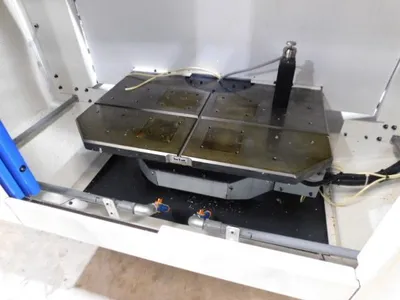

Dual pallets, rotary type
16) Cat 30 Big Plus tool holders, 6) ER32, 10) Straight shank from 5/16” to 1”
Original Shipping brackets installed
2022 BROTHER SPEEDIO R650X2 Dual Pallet Drill and Tap Machine. Machine is in great condition and can be inspected under power as requested.
Imperial
| X | 25.6" |
| Y | 16.7" |
| Z | 12" |
| Power | 17 hp |
| RPM | 10,000 RPM |
| # ATC | 22 |
| Taper | CT30 |
| Control | CNC (CNC-C00) |
Model: Speedio R650x2
Pallet size: 31.5” x 15.7”
Pallet indexing time: 3.4 seconds
Travels: 25.6” x 15.7” x 12”
Rapid travels: 1,969 ipm in X, Y, & Z
Cutting feed rates: 0.04-1,181 ipm
Distance from table top to nose: 9.8” – 21.8”
Max. jig height: 16.5”
Spindle RPM: 10,000
Max. tapping RPM: 6,000
Spindle taper: Cat 30 Big Plus
Spindle HP: 17/11.7 HP High Torque
ATC capacity: 22
Tool to tool: 0.8 sec
Chip to chip: 1.6 sec
Dimensions: 74.7” x 135.7” x 106.1” high x 7,716 lbs.
Shipping dimensions:
Machine: 75” x 120” x 88” high
Coolant pan: 66” x 34” x 28” high
Chip pan: 35” x 60” x 27” high
CNC – C00 (WX) control with PLC
Manual Pulse Generator
3-stage light
Work light
Spindle speed override
Shower gun
Coolant system w/200L tank
CTS prepped
Top cover
Door interlock
Blum ZX Speed wired w/150mm riser
Dual pallets, rotary type
16) Cat 30 Big Plus tool holders, 6) ER32, 10) Straight shank from 5/16” to 1”
Original Shipping brackets installed
