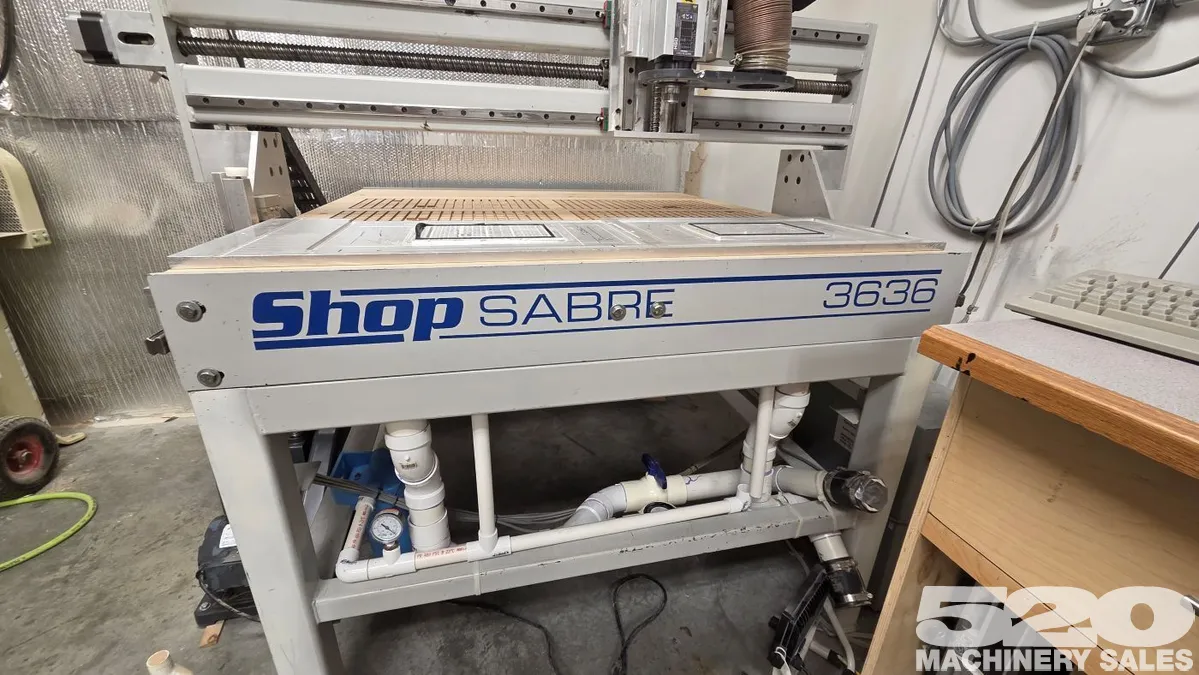

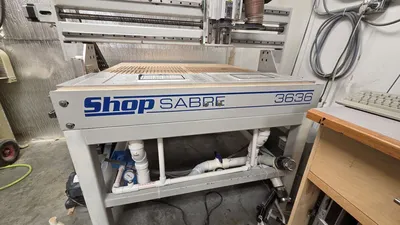

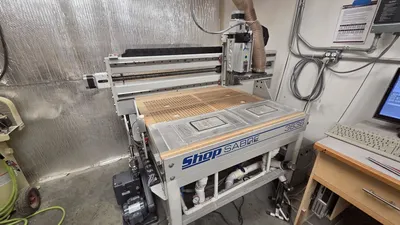

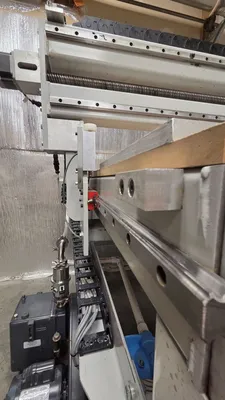

2007 SHOPSABRE 3636 CNC Router
ConditionUsed
1 available
$12,500.00 USD
2007 SHOPSABRE 3636 CNC Router. Machine is in excellent condition and can be viewed under power as needed.
• Cut area 43" wide and 38"

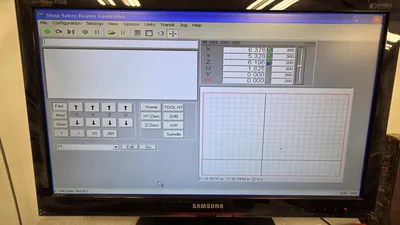

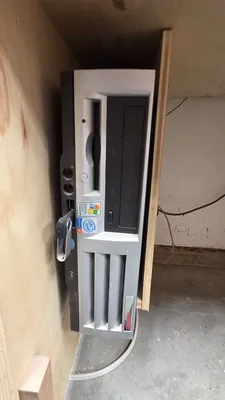

• PC with WinCNC control included
• Six axis controller, even though we are only using three axis for our use

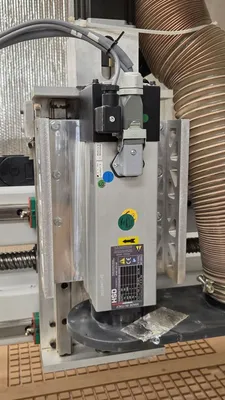

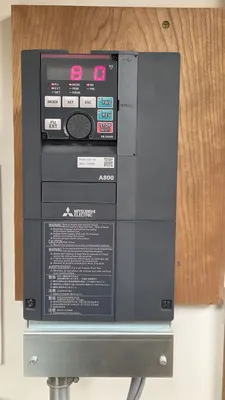

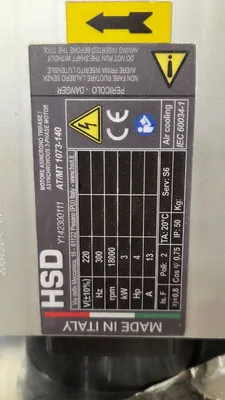

• Spindle: HSD 3kw 4hp VFD controlled spindle (VFD is a Mitsubishi which runs on 220V, 30A, single phase

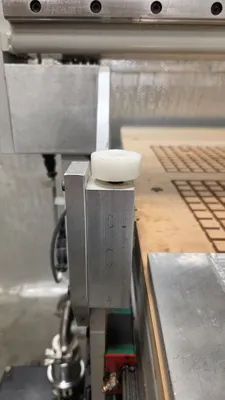

• Auto-measuring for tool height

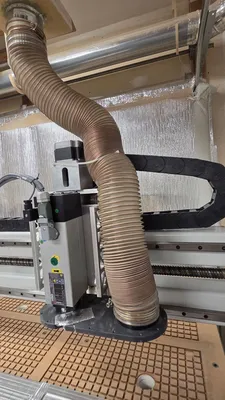

• Dust boot

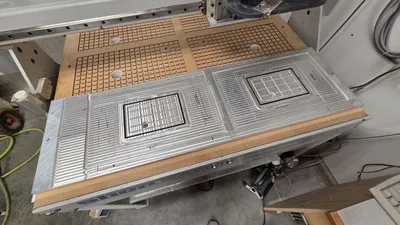

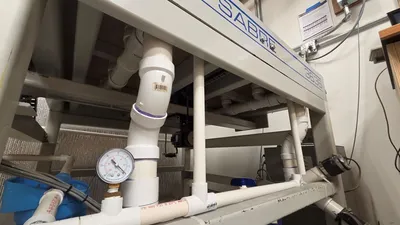

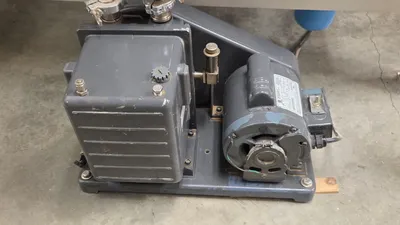

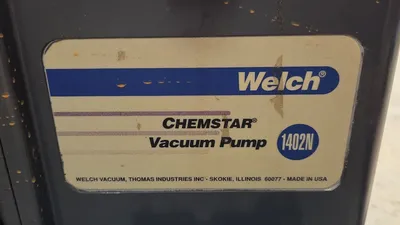

• Industrial Welch vacuum pump - low volume-high vacuum clamping system (aluminum table included as in the phots)
• MDF vacuum table set up to run with shopvac – (vacuum not included)
• 3.25hp Porter Cable Router mount included – can be used in place of the HSD spindle if desired
• We also have a number of Vortex and Amana router bits that would be included with the sale
• ShopSabre Specs:
- Construction: Welded structural steel tube frame and gantry, designed for rigidity.
- Drive System: Ball screw drives on all axes for high precision and reduced backlash (often dual drive Y-axis).
- Components: 25mm linear guide rails and bearings on all axes.
- Control System: Ethernet-based PC control with WinCNC software. (computer included)
- Footprint: Roughly 67” x 54”.
- Capabilities: Suitable for cutting wood, plastics, and soft metals (aluminum) with high accuracy
2007 SHOPSABRE 3636 CNC Router. Machine is in excellent condition and can be viewed under power as needed.
Imperial
| Table-W | 37" |
| Table-L | 48" |
| Power | 3.2 hp |
| RPM | 18,000 RPM |
| # Axis | 3 |
| X | 48" |
| Y | 37" |
| Z | 9" |
| Control | CNC |
| Dimensions | 67 x 54 x 70 |
| Weight | 1800 |
• Cut area 43" wide and 38"
• PC with WinCNC control included
• Six axis controller, even though we are only using three axis for our use
• Spindle: HSD 3kw 4hp VFD controlled spindle (VFD is a Mitsubishi which runs on 220V, 30A, single phase
• Auto-measuring for tool height
• Dust boot
• Industrial Welch vacuum pump - low volume-high vacuum clamping system (aluminum table included as in the phots)
• MDF vacuum table set up to run with shopvac – (vacuum not included)
• 3.25hp Porter Cable Router mount included – can be used in place of the HSD spindle if desired
• We also have a number of Vortex and Amana router bits that would be included with the sale
• ShopSabre Specs:
- Construction: Welded structural steel tube frame and gantry, designed for rigidity.
- Drive System: Ball screw drives on all axes for high precision and reduced backlash (often dual drive Y-axis).
- Components: 25mm linear guide rails and bearings on all axes.
- Control System: Ethernet-based PC control with WinCNC software. (computer included)
- Footprint: Roughly 67” x 54”.
- Capabilities: Suitable for cutting wood, plastics, and soft metals (aluminum) with high accuracy
