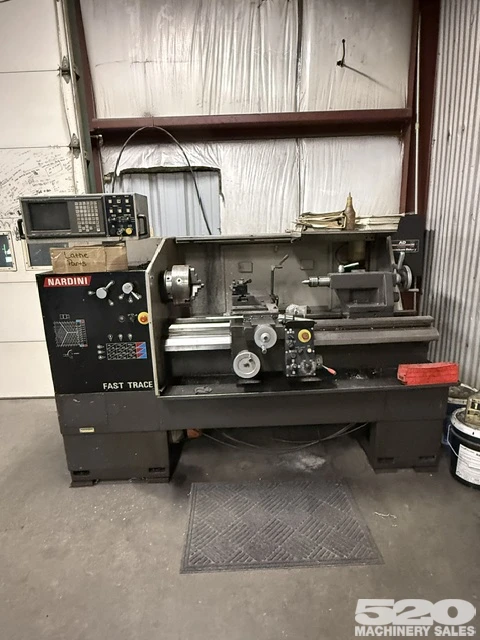

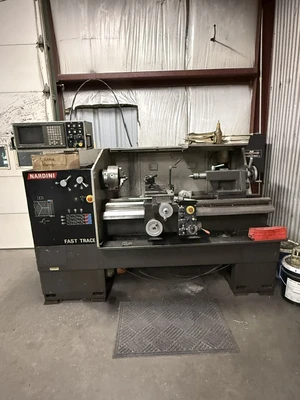

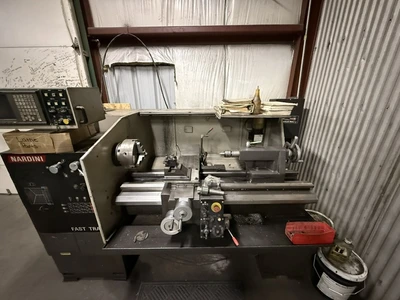

1996 NARDINI Fast Trace 220 CNC Turning Center W/ Tailstock
ConditionUsed
1 available
$7,900.00 USD
1996 NARDINI Fast Trace 220 CNC Turning Center W/ Tailstock. Machine is in very good condition and can be inspected under power as needed. Machine comes with: Fanuc CNC control, steady rest, and chuck.

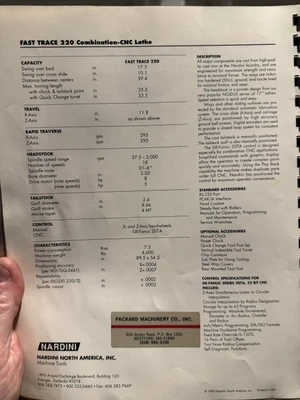

Capacity
Swing over bed 17.3 in.
Swing over cross slide 10.1 in.
Distance between centers / maximum turning length 35.5 in.
With chuck and tailstock point 33.5 in.
Travel
X axis 11.8 in.
Z axis Shown above [value not separately legible]
Rapid Traverse
X axis 295 ipm
Z axis 295 ipm
Headstock
Spindle speed 375–3,000 rpm
Number of speeds 18
Spindle nose D1-6 in.
Spindle bore 2.03 in.
Bar diameter 0.8 in.
Drive motor (main spindle) 5 hp
Drive motor (other spindle/axis entry) 5 hp
Tailstock
Quill diameter 2.6 in.
Quill stroke 8.66 in.
Motor torque 4 MT
Control
Manual X- and Z-axis handwheels

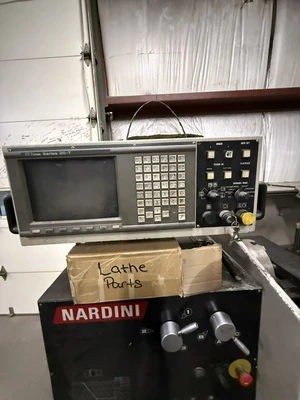

CNC GE-Fanuc 20TA
Characteristics
Power consumption 7.5 kVA
Machine weight 4,600 lb
Dimensions 89.5 × 54.5 in.
Positioning accuracy X: 0.0004 in.; Z: 0.0007 in.
Repeatability (per ISO/DIS 230/2) X: 0.0002 in.; Z: 0.0002 in.
Spindle runout < 0.0003 in.
Tailstock
8" Chuck
1996 NARDINI Fast Trace 220 CNC Turning Center W/ Tailstock. Machine is in very good condition and can be inspected under power as needed. Machine comes with: Fanuc CNC control, steady rest, and chuck.
Imperial
| Chuck Size | 10" |
| Swing | 17.3" |
| Machining Length | 35.5" |
| Bar Capacity | 2.03" |
| Live Tooling | No |
| Y-Axis Milling | No |
| Sub Spindle | No |
| # of Turrets | 1 |
| Turning Dia | 10.1" |
| Power | 5 hp |
| Max RPM | 3,000 RPM |
| Tailstock | Yes |
| Control | CNC (CNC Fanuc) |
| Weight | 4600 |
Capacity
Swing over bed 17.3 in.
Swing over cross slide 10.1 in.
Distance between centers / maximum turning length 35.5 in.
With chuck and tailstock point 33.5 in.
Travel
X axis 11.8 in.
Z axis Shown above [value not separately legible]
Rapid Traverse
X axis 295 ipm
Z axis 295 ipm
Headstock
Spindle speed 375–3,000 rpm
Number of speeds 18
Spindle nose D1-6 in.
Spindle bore 2.03 in.
Bar diameter 0.8 in.
Drive motor (main spindle) 5 hp
Drive motor (other spindle/axis entry) 5 hp
Tailstock
Quill diameter 2.6 in.
Quill stroke 8.66 in.
Motor torque 4 MT
Control
Manual X- and Z-axis handwheels
CNC GE-Fanuc 20TA
Characteristics
Power consumption 7.5 kVA
Machine weight 4,600 lb
Dimensions 89.5 × 54.5 in.
Positioning accuracy X: 0.0004 in.; Z: 0.0007 in.
Repeatability (per ISO/DIS 230/2) X: 0.0002 in.; Z: 0.0002 in.
Spindle runout < 0.0003 in.
Tailstock
8" Chuck
