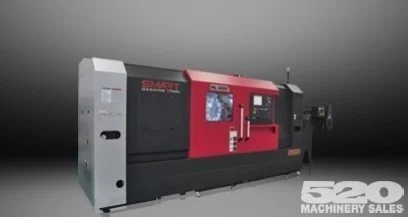

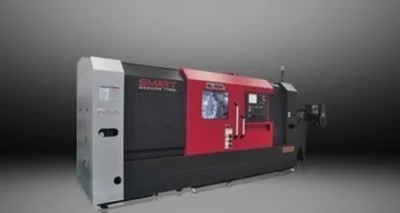

SMART MACHINE TOOL NL 4000M CNC Turning Center W/ Programmable Tailstock and Live Tooling
ConditionNew
1 available
$229,800.00 USD
New
18" CHUCK
A2-11 Spindle
Programmable Tailstock
12 station BMT 75 turret
BOX WAY
NL 4000M
CAPACITY
Swing over the bed 31.10”
Maximum turning diameter 25.11”
Maximum turning length 45.08”
MAIN SPINDLE
Chuck Size 18”
Spindle nose A2-11
Main spindle motor 40 / 60 hp
Spindle speed 2,000 rpm
Draw Tube ID 4.59”
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 630 ipm / 787 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 tools (BMT75)
Turret indexing speed (1 station) 0.25 seconds
Rotating spindle motor N/A 10 / 14.8 / 20.1 hp
Rotating tool RPM N/A 4,000
TAIL STOCK
Tailstock center (Taper) MT #5 (built-in)
Quill travel (by hydraulic) 4.72”
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 221.1” x 76.4”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Programmable Tailstock (Body & Quill)
Built-in Tailstock Bearings MT #5
Manual Guide i
(1) X-Axis Live Tool Holder (*M Only)
(1) Z-Axis Live Tool Holder (*M Only)
Add $6,000 for the Smart Value Package as Follows:
Chip Conveyor - Side Discharge
140 PSI Coolant Pump
1 Set of Hard Jaws
3 Sets of Soft Jaws
3 Color Tower Light
18" CHUCK
A2-11 Spindle
Programmable Tailstock
12 station BMT 75 turret
BOX WAY
Imperial
| Live Tooling | Yes |
| Y-Axis | No |
| Sub Spindle | No |
| Swing | 31.1" |
| Machining Length | 45.08" |
| # Axis | 3 |
| Chuck Size | 18" |
| Bar Capacity | 4" |
| Power | 60 hp |
| Max RPM | 2,000 RPM |
| Turning Dia | 25.11" |
| Tailstock | Yes |
| Control | CNC (Fanuc Oi-TF Plus) |
NL 4000M
CAPACITY
Swing over the bed 31.10”
Maximum turning diameter 25.11”
Maximum turning length 45.08”
MAIN SPINDLE
Chuck Size 18”
Spindle nose A2-11
Main spindle motor 40 / 60 hp
Spindle speed 2,000 rpm
Draw Tube ID 4.59”
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 630 ipm / 787 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 tools (BMT75)
Turret indexing speed (1 station) 0.25 seconds
Rotating spindle motor N/A 10 / 14.8 / 20.1 hp
Rotating tool RPM N/A 4,000
TAIL STOCK
Tailstock center (Taper) MT #5 (built-in)
Quill travel (by hydraulic) 4.72”
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 221.1” x 76.4”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Programmable Tailstock (Body & Quill)
Built-in Tailstock Bearings MT #5
Manual Guide i
(1) X-Axis Live Tool Holder (*M Only)
(1) Z-Axis Live Tool Holder (*M Only)
Add $6,000 for the Smart Value Package as Follows:
Chip Conveyor - Side Discharge
140 PSI Coolant Pump
1 Set of Hard Jaws
3 Sets of Soft Jaws
3 Color Tower Light
