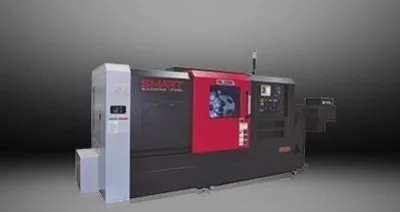

SMART MACHINE TOOL NL 2500M-750 CNC Turning Center W/ Live Tooling and Tailstock
ConditionNew
1 available
$139,800.00 USD
New
10" CHUCK
A2-8 Spindle
Programmable Tailstock
2 Speed Gear Box
926 lbs Spindle Torque
Oil Skimmer
Tool Pre-setter
NL2500M/750
CAPACITY
Swing over the bed 27.56”
Maximum turning diameter 17.72”
Maximum turning length 27.56”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 47 hp (2 Geared)
Spindle speed 4,000 rpm
Draw Tube ID 3.19”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 945 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 (24) tools (BMT65)
Turret indexing speed (1 station) 0.2 seconds
Rotating tool spindle motor N/A 5 / 7.4 / 10 hp
Rotating tool RPM N/A 5,000 rpm
TAIL STOCK
Tailstock center (Taper) MT #4 (built-in)
Quill travel (by hydraulic) 3.94”
MACHINE SIZE
Floor space requirements including conveyor (L x W) 184.65” x 66.06”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Programmable Tailstock (Body & Quill)
Barfeeder Interface
Manual Guide i
(1) X-Axis Live Tool Holder
(1) Z-Axis Live Tool Holder
Add $4,000 for The Smart Value Package to Include
Chip Conveyor - Side Discharge
140 PSI Coolant Pump
3 Sets of Soft Jaws
3 Color Tower Light
10" CHUCK
A2-8 Spindle
Programmable Tailstock
2 Speed Gear Box
926 lbs Spindle Torque
Oil Skimmer
Tool Pre-setter
Imperial
| Live Tooling | No |
| Y-Axis | No |
| Sub Spindle | No |
| Swing | 27.56" |
| Machining Length | 29.53" |
| # Axis | 3 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 47 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 17.72" |
| Tailstock | Yes |
| Barfeed | No |
| Control | CNC (Fanuc Oi-TF Plus) |
NL2500M/750
CAPACITY
Swing over the bed 27.56”
Maximum turning diameter 17.72”
Maximum turning length 27.56”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 47 hp (2 Geared)
Spindle speed 4,000 rpm
Draw Tube ID 3.19”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 945 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 (24) tools (BMT65)
Turret indexing speed (1 station) 0.2 seconds
Rotating tool spindle motor N/A 5 / 7.4 / 10 hp
Rotating tool RPM N/A 5,000 rpm
TAIL STOCK
Tailstock center (Taper) MT #4 (built-in)
Quill travel (by hydraulic) 3.94”
MACHINE SIZE
Floor space requirements including conveyor (L x W) 184.65” x 66.06”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Programmable Tailstock (Body & Quill)
Barfeeder Interface
Manual Guide i
(1) X-Axis Live Tool Holder
(1) Z-Axis Live Tool Holder
Add $4,000 for The Smart Value Package to Include
Chip Conveyor - Side Discharge
140 PSI Coolant Pump
3 Sets of Soft Jaws
3 Color Tower Light
