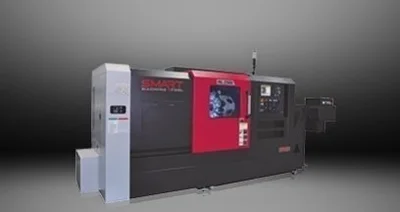

SMART MACHINE TOOL NL 2500M-750 CNC Turning Center W/ Live Tooling and Tailstock
ConditionNew
1 available
$199,900.00 USD
New
10" CHUCK
A2-8 Spindle
Programmable Tailstock
2 Speed Gear Box
926 lbs Spindle Torque
Oil Skimmer
Tool Pre-setter
NL 2500SY
CAPACITY
Swing over the bed 31.89”
Maximum turning diameter 15.51”
Maximum turning length 28.07”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 25 / 35 hp
Spindle speed 4,000 rpm
Draw Tube ID 3.19”
SUB SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 20 hp
Spindle speed 5,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30o Slant bed
TURRET
Number of tool stations 12 tools (24) (BMT65)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 10 hp
Rotating Tool RPM 5,000 rpm
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 189.8” x 71.6”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Manual Guide i
(1) X-Axis Live Tool Holder
(1) Z-Axis Live Tool Holder
Add $8000 for the Smart Value Package:
290 PSI Coolant Pump
Internal Parts Catcher / Parts Conveyor
3 Sets of Soft Jaws
3 Color Tower Light
10" CHUCK
A2-8 Spindle
Programmable Tailstock
2 Speed Gear Box
926 lbs Spindle Torque
Oil Skimmer
Tool Pre-setter
Imperial
| # Axis | 5 |
| Swing | 31.89" |
| Machining Length | 28.07" |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 35 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 15.51" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Y-Axis | Yes |
| Control | CNC (Fanuc Oi-TF Plus) |
NL 2500SY
CAPACITY
Swing over the bed 31.89”
Maximum turning diameter 15.51”
Maximum turning length 28.07”
MAIN SPINDLE
Chuck Size 10”
Spindle nose A2-8
Main spindle motor 25 / 35 hp
Spindle speed 4,000 rpm
Draw Tube ID 3.19”
SUB SPINDLE
Chuck Size 8”
Spindle nose A2-6
Main spindle motor 20 hp
Spindle speed 5,000 rpm
Draw Tube ID 2.0”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 1,181 ipm / 1,181 ipm
Guide ways Box Way
Bed structure 30o Slant bed
TURRET
Number of tool stations 12 tools (24) (BMT65)
Turret indexing speed (1 station) 0.15 seconds
Rotating Tool Spindle Motor 10 hp
Rotating Tool RPM 5,000 rpm
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 189.8” x 71.6”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Manual Guide i
(1) X-Axis Live Tool Holder
(1) Z-Axis Live Tool Holder
Add $8000 for the Smart Value Package:
290 PSI Coolant Pump
Internal Parts Catcher / Parts Conveyor
3 Sets of Soft Jaws
3 Color Tower Light
