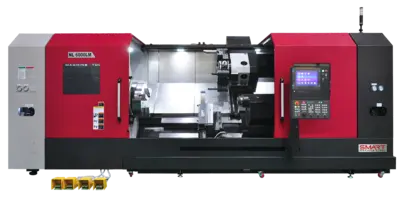

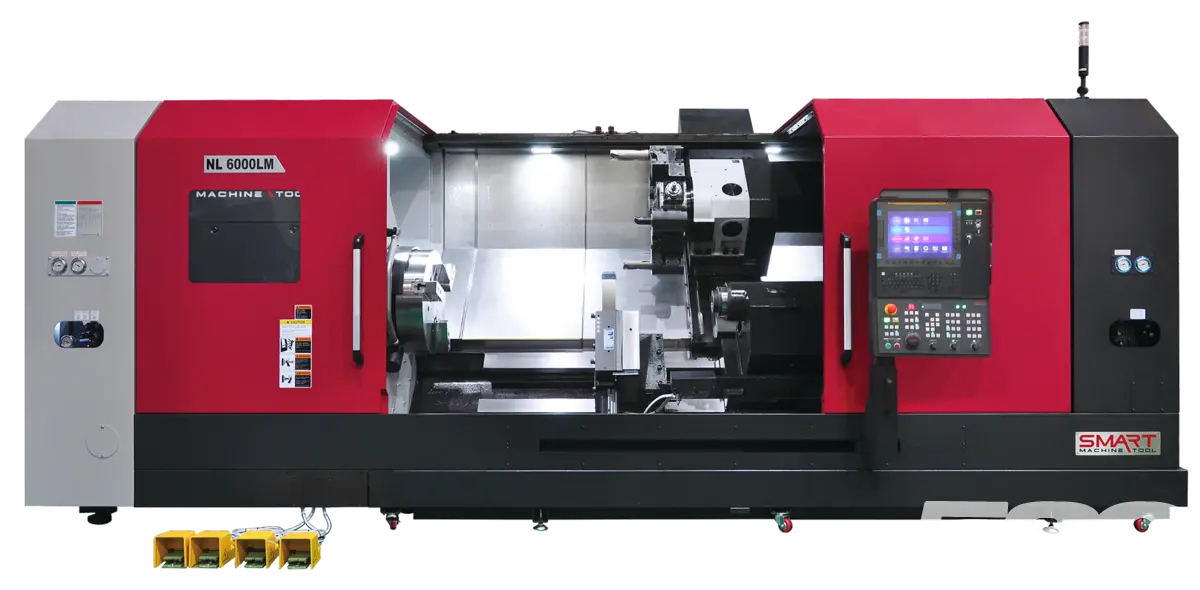

SMART NL 6000L CNC Turning Center W/ Tailstock
ConditionNew
1 available
$359,900.00 USD
New
New 2026 SMART NL 6000 CNC lathe with a 24-inch chuck—an impressive addition to your machining lineup.
NL 6000L
CAPACITY
Swing over the bed 40.55”
Maximum turning diameter 37.80”
Maximum turning length 88.58”
MAIN SPINDLE
Chuck Size 24”
Spindle nose A1-15
Main spindle motor 50 / 73 hp
Spindle speed 1,200 rpm
Draw Tube ID 6.56”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 630 ipm / 630 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 tools (BMT85)
Turret indexing speed (1 station) 0.25 seconds 0.35 seconds
TAIL STOCK
Tailstock center (Taper) MT #6 (built-in)
Quill travel (by hydraulic) 5.91”
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 282.6” x 101.4”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Programmable Tailstock (Body & Quill)
Built-in Tailstock Bearings MT #6
Manual Guide i
Add $6,000 for the Smart Value Package as Follows:
Chip Conveyor - Side Discharge
140 PSI Coolant Pump
1 Set of Hard Jaws
3 Set of Soft Jaws
3 Color Tower Light
New 2026 SMART NL 6000 CNC lathe with a 24-inch chuck—an impressive addition to your machining lineup.
Imperial
| Chuck Size | 24" |
| Swing | 40.55" |
| Machining Length | 88.58" |
| Bar Capacity | 6.56" |
| Live Tooling | No |
| Y-Axis Milling | No |
| Sub Spindle | No |
| # of Turrets | 1 |
| Turning Dia | 35.43" |
| Power | 73 hp |
| Max RPM | 1,200 RPM |
| Tailstock | Yes |
| Control | CNC (Fanuc Oi-TF Plus) |
| Dimensions | 282.6" x 101.4" |
| Weight | 39,242lbs. |
NL 6000L
CAPACITY
Swing over the bed 40.55”
Maximum turning diameter 37.80”
Maximum turning length 88.58”
MAIN SPINDLE
Chuck Size 24”
Spindle nose A1-15
Main spindle motor 50 / 73 hp
Spindle speed 1,200 rpm
Draw Tube ID 6.56”
C axis minimum 0.001 deg
BED SLIDE & CARRIAGE
Rapid traverse (X / Z) 630 ipm / 630 ipm
Guide ways Box Way
Bed structure 45o Slant bed
TURRET
Number of tool stations 12 tools 12 tools (BMT85)
Turret indexing speed (1 station) 0.25 seconds 0.35 seconds
TAIL STOCK
Tailstock center (Taper) MT #6 (built-in)
Quill travel (by hydraulic) 5.91”
MACHINE SIZE
Floor space requirements including
conveyor (L x W) 282.6” x 101.4”
CNC
CNC Model Fanuc 0i-TF Plus (15” touch screen)
Tool Presetter
Oil Skimmer
Programmable Tailstock (Body & Quill)
Built-in Tailstock Bearings MT #6
Manual Guide i
Add $6,000 for the Smart Value Package as Follows:
Chip Conveyor - Side Discharge
140 PSI Coolant Pump
1 Set of Hard Jaws
3 Set of Soft Jaws
3 Color Tower Light
