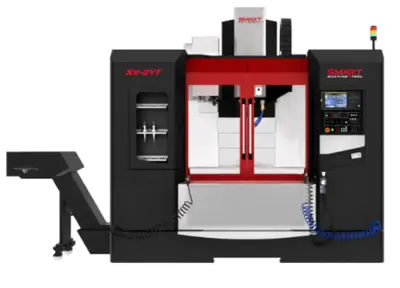

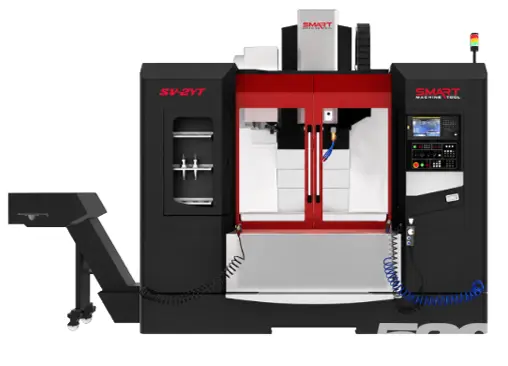

SMART MACHINE TOOL SV 2YT CNC Vertical Machining Center
ConditionNew
1 available
$89,900.00 USD
New
Cat 40 12,000 rpm Big Plus Spindle
31"x 20" Travels
1890 ipm Rapid Traverse Rate
30 Position Automatic Tool Changer
SV-2YT
CAPACITY
X axis travel 31.5”
Y axis travel 19.7”
Z axis travel 19.7”
Table size 19.6” x 39.2”
Table loading capacity 1,320 lbs.
SPINDLE
Distance from table top to spindle nose 3.94” – 23.6”
Distance from column to spindle center 22.04”
Spindle taper CAT40 (BIG PLUS)
Spindle speed 12,000 rpm
AC Spindle motor 20/ 25 hp
Spindle Torque (30 min) 87 ft.-lbs.
AUTO TOOL CHANGER
Magazine capacity 30
Tool shank CAT40 (BIG PLUS)
FEED RATE
Rapid traverse (X / Y / Z) 1,890 ipm
Cutting feedrate ipm 394 ipm
Slide Ways Linear Way
COOLANT TANKS
Front Tank Capacity 36.98 gallons
Side Tank Capacity 68.68 gallons
GENERAL
Floor space (L x W) (including conveyor) 134.65” x 82.68”
CNC Model Fanuc 0i-MF Plus (15” screen)
30 Tools Double Arm ATC
Full Enclosed Splash Guard
Coolant Bed Fluch
Rigid Tapping
Big Plus Spindle
Manual Guide i
Lift Up Conveyor
Add $5,000 for Smart Value Package as Follows:
Renishaw Receiver and GUI software
280 PSI CTS
Air Thru Spindle
4 Axis Preparation
Coolant/Air Gun
Spindle Oil Cooler
High Speed Machining, 200 Look Ahead
Cat 40 12,000 rpm Big Plus Spindle
31"x 20" Travels
1890 ipm Rapid Traverse Rate
30 Position Automatic Tool Changer
Imperial
| X | 31.5" |
| Y | 19.7" |
| Z | 19.7" |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CAT40 Big Plus |
| Table-W | 39.2" |
| Table-L | 19.6" |
| # Axis | 3 |
| Control | CNC (Fanuc 0i-MF Plus Control) |
| Dimensions | 134.65” x 82.68” |
SV-2YT
CAPACITY
X axis travel 31.5”
Y axis travel 19.7”
Z axis travel 19.7”
Table size 19.6” x 39.2”
Table loading capacity 1,320 lbs.
SPINDLE
Distance from table top to spindle nose 3.94” – 23.6”
Distance from column to spindle center 22.04”
Spindle taper CAT40 (BIG PLUS)
Spindle speed 12,000 rpm
AC Spindle motor 20/ 25 hp
Spindle Torque (30 min) 87 ft.-lbs.
AUTO TOOL CHANGER
Magazine capacity 30
Tool shank CAT40 (BIG PLUS)
FEED RATE
Rapid traverse (X / Y / Z) 1,890 ipm
Cutting feedrate ipm 394 ipm
Slide Ways Linear Way
COOLANT TANKS
Front Tank Capacity 36.98 gallons
Side Tank Capacity 68.68 gallons
GENERAL
Floor space (L x W) (including conveyor) 134.65” x 82.68”
CNC Model Fanuc 0i-MF Plus (15” screen)
30 Tools Double Arm ATC
Full Enclosed Splash Guard
Coolant Bed Fluch
Rigid Tapping
Big Plus Spindle
Manual Guide i
Lift Up Conveyor
Add $5,000 for Smart Value Package as Follows:
Renishaw Receiver and GUI software
280 PSI CTS
Air Thru Spindle
4 Axis Preparation
Coolant/Air Gun
Spindle Oil Cooler
High Speed Machining, 200 Look Ahead
