Used 2012 WALTER HELITRONIC MINI POWER | Tool & Cutter Grinders
ConditionUsed
1 available

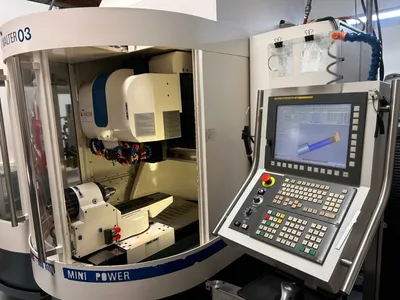

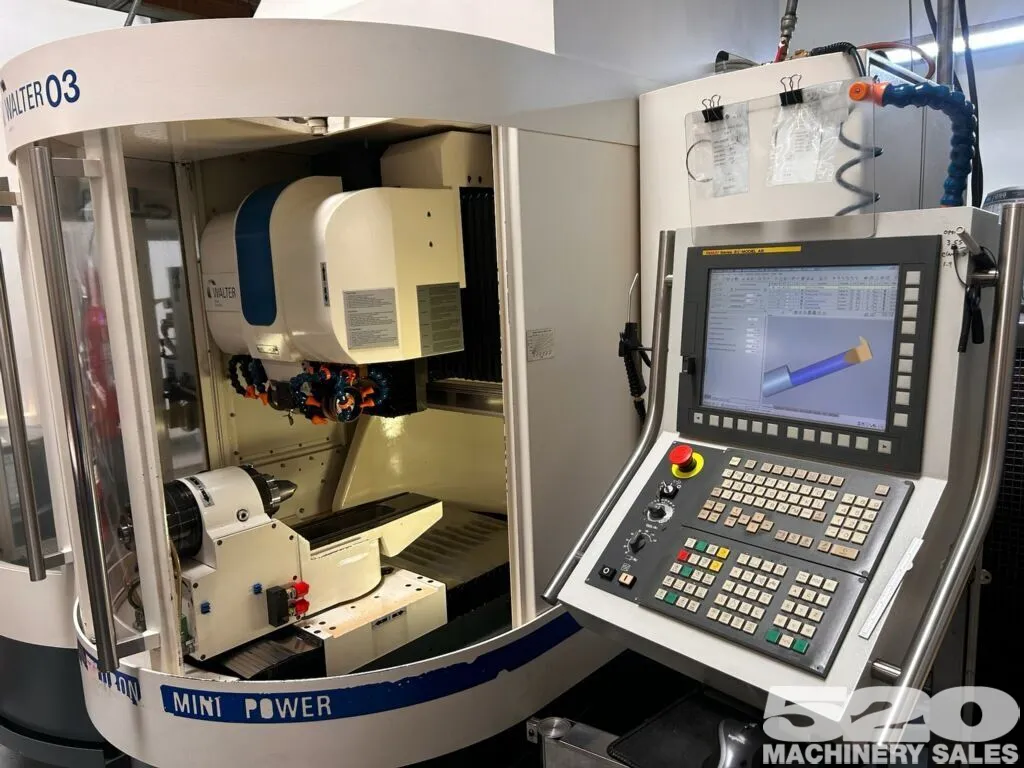

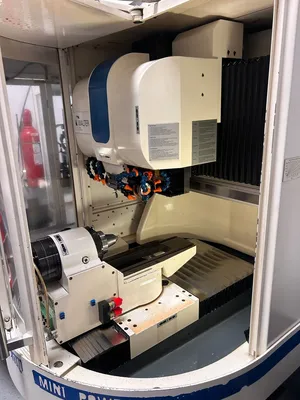

2012 WALTER HELITRONIC MINI POWER 5-axis tool and cutter grinder. Features 10-inch centers, a 6-inch grinding wheel, up to 10,500 RPM, 12 hp, integrated loading station, and coolant tank and pump. Used.
Axis Travels and Speeds
• X-Axis (Longitudinal): 320 mm – 350 mm (approx. 13.75 in)
• Y-Axis (Vertical): 200 mm (approx. 8 in)
• Z-Axis (Cross): 470 mm (approx. 18.5 in)
• C-Axis (Rotary swiveling range): ±200° (400° total)
• A-Axis (Workhead): Infinite rotation
• Rapid Traverse Speed (X, Y, Z): Up to 15 m/min (approx. 590 IPM)
Spindle and Grinding Specifications
• Grinding Spindle Speed: 0 – 10,500 RPM
• Spindle Motor Power: 9 kW (approx. 12 HP peak)
• Maximum Grinding Wheel Diameter: 150 mm (6 in)
• Spindle Ends: 2 ends (belt-driven)
Workpiece and Tool Capacities
• Tool / Workpiece Diameter: 1 mm to 100 mm (0.375 in to 4 in)
• Max Workpiece Length (Peripheral Grinding): Up to 255 mm – 270 mm (10 in)
• Max Workpiece Length (End Face Grinding): Up to 185 mm (7.25 in)
• Max Workpiece Weight: 30 kg (66 lbs)
Equipped With:

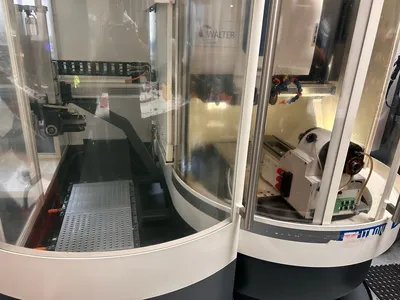

Integrated Loading Station
Coolant Tank & Pump
2012 WALTER HELITRONIC MINI POWER 5-axis tool and cutter grinder. Features 10-inch centers, a 6-inch grinding wheel, up to 10,500 RPM, 12 hp, integrated loading station, and coolant tank and pump. Used.
Imperial
| # Axis | 5 |
| Centers | 10" |
| Grinding Wheel Dia. | 6" |
| Power | 12 hp |
| Max RPM | 10,500 RPM |
| Control | CNC (Fanuc Series 310i) |
| Dimensions | 102"L x 10"W x 94"H |
| Weight | 8,000 Lbs |
Axis Travels and Speeds
• X-Axis (Longitudinal): 320 mm – 350 mm (approx. 13.75 in)
• Y-Axis (Vertical): 200 mm (approx. 8 in)
• Z-Axis (Cross): 470 mm (approx. 18.5 in)
• C-Axis (Rotary swiveling range): ±200° (400° total)
• A-Axis (Workhead): Infinite rotation
• Rapid Traverse Speed (X, Y, Z): Up to 15 m/min (approx. 590 IPM)
Spindle and Grinding Specifications
• Grinding Spindle Speed: 0 – 10,500 RPM
• Spindle Motor Power: 9 kW (approx. 12 HP peak)
• Maximum Grinding Wheel Diameter: 150 mm (6 in)
• Spindle Ends: 2 ends (belt-driven)
Workpiece and Tool Capacities
• Tool / Workpiece Diameter: 1 mm to 100 mm (0.375 in to 4 in)
• Max Workpiece Length (Peripheral Grinding): Up to 255 mm – 270 mm (10 in)
• Max Workpiece Length (End Face Grinding): Up to 185 mm (7.25 in)
• Max Workpiece Weight: 30 kg (66 lbs)
Equipped With:
Integrated Loading Station
Coolant Tank & Pump
