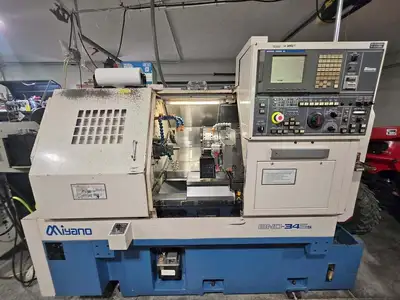

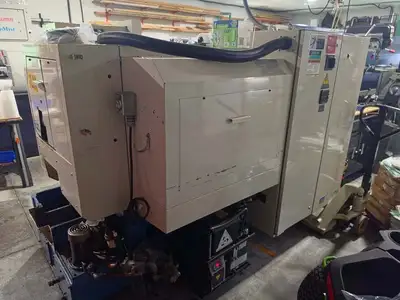

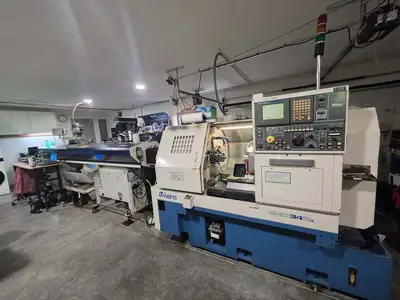

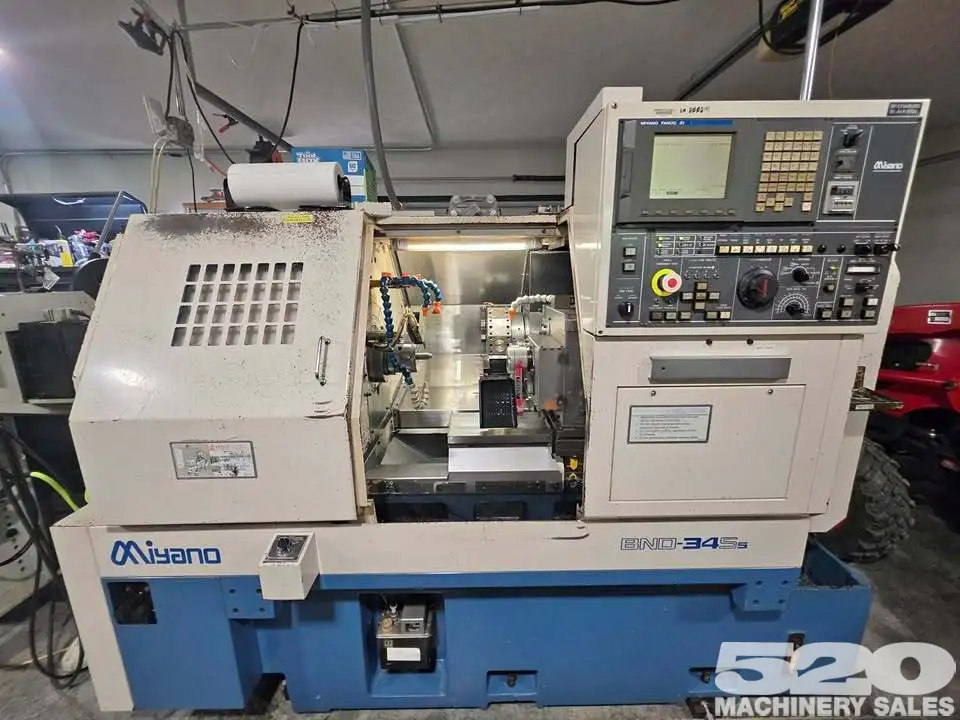

2002 MIYANO BND34-S5 CNC Dual Spindle CNC Turning Center W/ Live Tooling and Patriot 338 Barfeeder
ConditionUsed
1 available
$23,900.00 USD
2002 MIYANO BND34-S5 CNC Dual Spindle CNC Turning Center W/ Patriot 338 Barfeeder. Machine is in very good condition and can be viewed under power as needed. Options include Patriot 338 barfeeder and LNS chip conveyor
Specification Capacity
Maximum bar capacity 1.34" / 34 mm
Standard turning length 4.92" / 125 mm
Main spindle speed 170–5,000 RPM
Main spindle motor Approximately 7.5 HP continuous / 10 HP intermittent
Sub-spindle speed Up to 5,000 RPM
Turret 12 stations

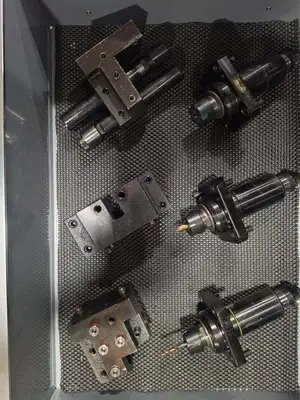

Live tooling 6 driven stations
Live tool speed 135–4,050 RPM
X-axis travel 5.51" / 140 mm
CNC control Fanuc
Approximate dimensions, machine only 98" × 62" × 67" high
Sub-Spindle
Live Tooling

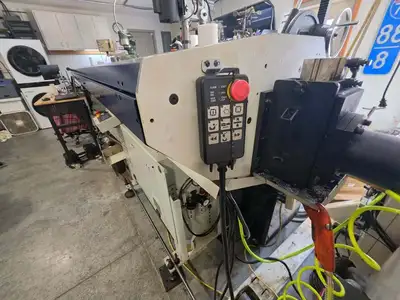

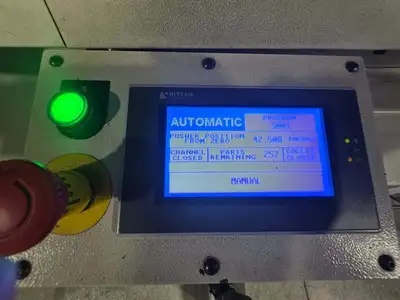

Patriot 338 Barfeeder
LNS Chip Conveyor
2002 MIYANO BND34-S5 CNC Dual Spindle CNC Turning Center W/ Patriot 338 Barfeeder. Machine is in very good condition and can be viewed under power as needed. Options include Patriot 338 barfeeder and LNS chip conveyor
Imperial
| Live Tooling | Yes |
| Y-Axis | No |
| Sub Spindle | Yes |
| Swing | 8.66" |
| Machining Length | 4.92" |
| # Axis | 4 |
| X Travel | 5.5" |
| Z Travel | 8.3" |
| Bar Capacity | 1.3125" |
| Power | 10 hp |
| Max RPM | 5,000 RPM |
| Turning Dia | 6.0625" |
| Tailstock | No |
| Barfeed | Yes |
| Control | CNC (FANUC) |
| Dimensions | 98 x 62 x 67 |
| Weight | 3800 |
Specification Capacity
Maximum bar capacity 1.34" / 34 mm
Standard turning length 4.92" / 125 mm
Main spindle speed 170–5,000 RPM
Main spindle motor Approximately 7.5 HP continuous / 10 HP intermittent
Sub-spindle speed Up to 5,000 RPM
Turret 12 stations
Live tooling 6 driven stations
Live tool speed 135–4,050 RPM
X-axis travel 5.51" / 140 mm
CNC control Fanuc
Approximate dimensions, machine only 98" × 62" × 67" high
Sub-Spindle
Live Tooling
Patriot 338 Barfeeder
LNS Chip Conveyor
