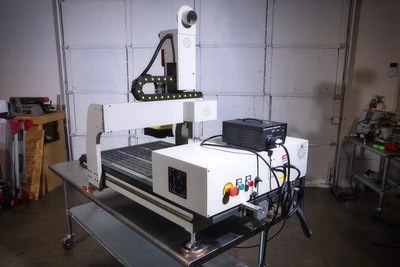

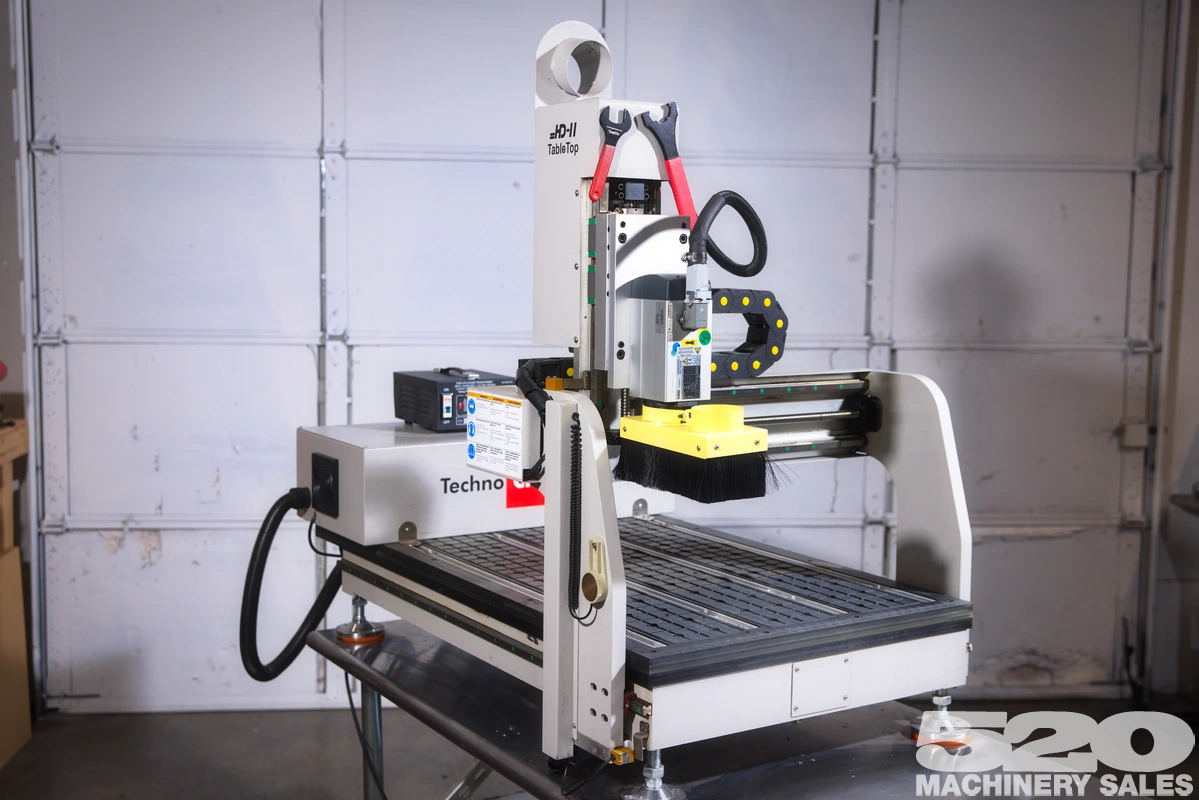

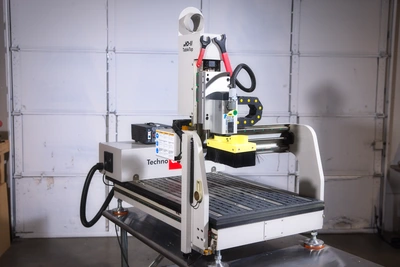

2021 TECHNO INC HD II Tabletop CNC Router
ConditionUsed
1 available
$9,900.00 USD
2021 TECHNO INC HD II Tabletop CNC Router.
CONFIGURATION
• Model: HD-II Table Top 20×34
• Controls: Stepper electronics (brushless micro-stepper)

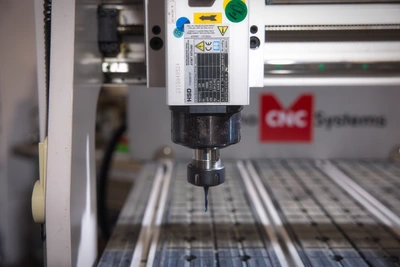

• Spindle: 2 HP (1.5 kW) HSD high-frequency collet spindle
• Spindle speed: 6,000–18,000 rpm
• Collets: ER25

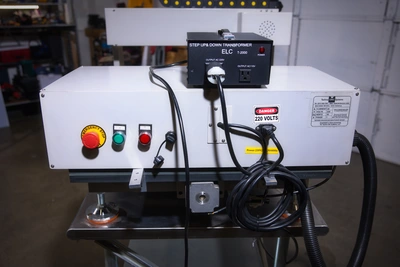

• Voltage: 120 V (20 amp circuit), 220V→120V step-down transformer included
• Gantry clearance: 7.5"
• Z-axis stroke: 9.5"
• Process area: 20" × 34"
• Table: Phenolic vacuum T-slot table — table only, no vacuum pump (1 vacuum zone)

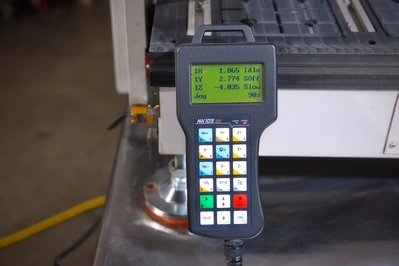

• Controller: Techno handheld pendant
• Software/format: G-code
• Motion: Precision ball screws on X/Y/Z, precision linear rails & bearings
• Auto tool-length calibration pad
• Dust hood with ~3" hose connection

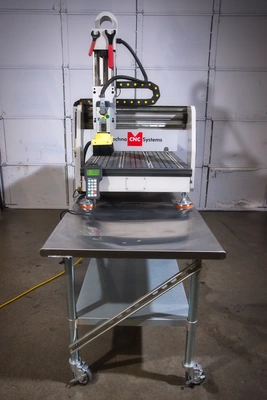

• Includes heavy stainless steel rolling table with locking casters
PUBLISHED SPECS (Techno HD-II brochure)
• 20" × 34" process area
• 7-1/2" gantry clearance / 9-1/2" Z stroke
• Vacuum T-slot table with aluminum T-slots for mechanical fixturing
• Easy-to-use handheld controller with feed/speed override, E-stop, jog, tool calibrate, etc.
2021 TECHNO INC HD II Tabletop CNC Router.
Imperial
| Table-W | 20" |
| Table-L | 34" |
| Power | 2 hp |
| RPM | 18,000 RPM |
| X | 20" |
| Y | 34" |
| Z | 9.5" |
CONFIGURATION
• Model: HD-II Table Top 20×34
• Controls: Stepper electronics (brushless micro-stepper)
• Spindle: 2 HP (1.5 kW) HSD high-frequency collet spindle
• Spindle speed: 6,000–18,000 rpm
• Collets: ER25
• Voltage: 120 V (20 amp circuit), 220V→120V step-down transformer included
• Gantry clearance: 7.5"
• Z-axis stroke: 9.5"
• Process area: 20" × 34"
• Table: Phenolic vacuum T-slot table — table only, no vacuum pump (1 vacuum zone)
• Controller: Techno handheld pendant
• Software/format: G-code
• Motion: Precision ball screws on X/Y/Z, precision linear rails & bearings
• Auto tool-length calibration pad
• Dust hood with ~3" hose connection
• Includes heavy stainless steel rolling table with locking casters
PUBLISHED SPECS (Techno HD-II brochure)
• 20" × 34" process area
• 7-1/2" gantry clearance / 9-1/2" Z stroke
• Vacuum T-slot table with aluminum T-slots for mechanical fixturing
• Easy-to-use handheld controller with feed/speed override, E-stop, jog, tool calibrate, etc.
