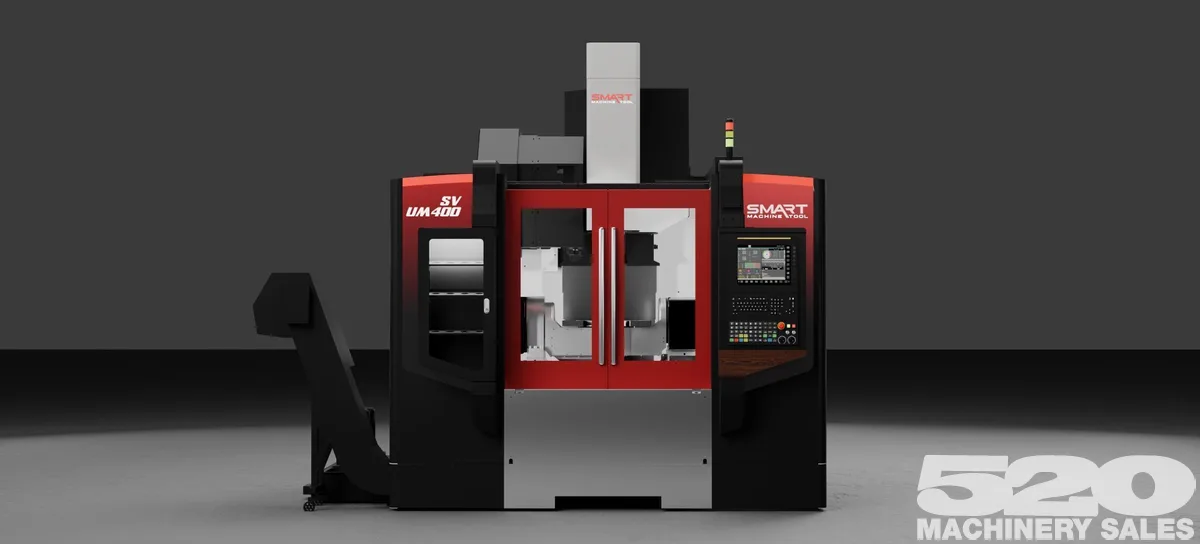

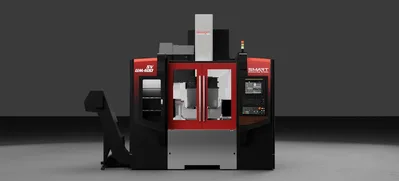

Smart SV-UM400 4+1 5 Axis Vertical Machining Center
ConditionNew
1 available
$179,900.00 USD
New
Smart SV-UM400 is a vertical machining center that is capable of 4+1 5 axis vertical machining.
SV-UM400
CAPACITY
A axis travel 150° (+30° / -120°)
C axis travel +/-360 Degree
X axis travel 27.55”
Y axis travel 20.08”
Z axis travel 19.68”
Table size (rectangle) 24.4” x 15.75”
Rotary table size (Diameter) 16.14”
Table loading capacity vertical 440 lbs.
Table loading capacity horizontal 330 lbs
SPINDLE
Distance from spindle to table 2.80” – 22.48”
Spindle Taper CAT 40
Spindle Speed 12,000 rpm
Spindle Motor 14.8 hp
Spindle Torque (MAX) 51.63 ft.-lbs.
AUTO TOOL CHANGER
Magazine capacity 30
Tool shank BIG PLUS 40
FEED RATE
Rapid traverse ( X / Y / Z ) 1,181 ipm / 1,181 ipm / 1,181 ipm
Slide Ways Roller Guideway
GENERAL
CNC Model Fanuc OiMF
FAnuc Oi-MF Plus Type 2 control with 15” screen
AC-axis linear scale system (Fagor)
30 Tools Double Arm ATC
Full Enclosed Splash Guard
External flood coolant
Coolant thru spindle (20 bar)
Air gun & wash hose
Remote manual pulse generator with handwheel interrupt
Scraper type conveyor
Heat exchanger for electrical cabinet
Spindle thermal compensation
SMART 4+1 PACKAGE:
Tilted working plane (G68.2)
Renishaw Primo 3DTS package
Primo part setter & 3D tool setter
Manual Guide i
Smart SV-UM400 is a vertical machining center that is capable of 4+1 5 axis vertical machining.
Imperial
| X | 27.55" |
| Y | 20.08" |
| Z | 19.689" |
| # Axis | 5 |
| Power | 15 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CT-40 "Big Plus" |
| Control | CNC (Fanuc Oi-MF) |
SV-UM400
CAPACITY
A axis travel 150° (+30° / -120°)
C axis travel +/-360 Degree
X axis travel 27.55”
Y axis travel 20.08”
Z axis travel 19.68”
Table size (rectangle) 24.4” x 15.75”
Rotary table size (Diameter) 16.14”
Table loading capacity vertical 440 lbs.
Table loading capacity horizontal 330 lbs
SPINDLE
Distance from spindle to table 2.80” – 22.48”
Spindle Taper CAT 40
Spindle Speed 12,000 rpm
Spindle Motor 14.8 hp
Spindle Torque (MAX) 51.63 ft.-lbs.
AUTO TOOL CHANGER
Magazine capacity 30
Tool shank BIG PLUS 40
FEED RATE
Rapid traverse ( X / Y / Z ) 1,181 ipm / 1,181 ipm / 1,181 ipm
Slide Ways Roller Guideway
GENERAL
CNC Model Fanuc OiMF
FAnuc Oi-MF Plus Type 2 control with 15” screen
AC-axis linear scale system (Fagor)
30 Tools Double Arm ATC
Full Enclosed Splash Guard
External flood coolant
Coolant thru spindle (20 bar)
Air gun & wash hose
Remote manual pulse generator with handwheel interrupt
Scraper type conveyor
Heat exchanger for electrical cabinet
Spindle thermal compensation
SMART 4+1 PACKAGE:
Tilted working plane (G68.2)
Renishaw Primo 3DTS package
Primo part setter & 3D tool setter
Manual Guide i
