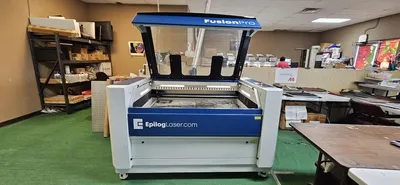

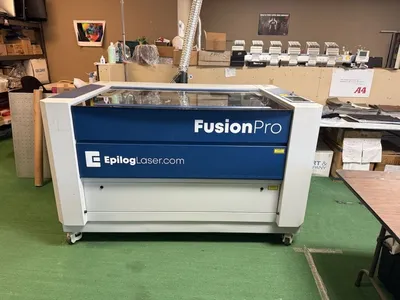

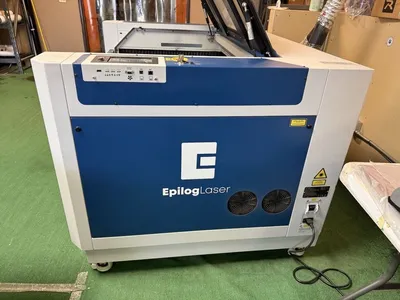

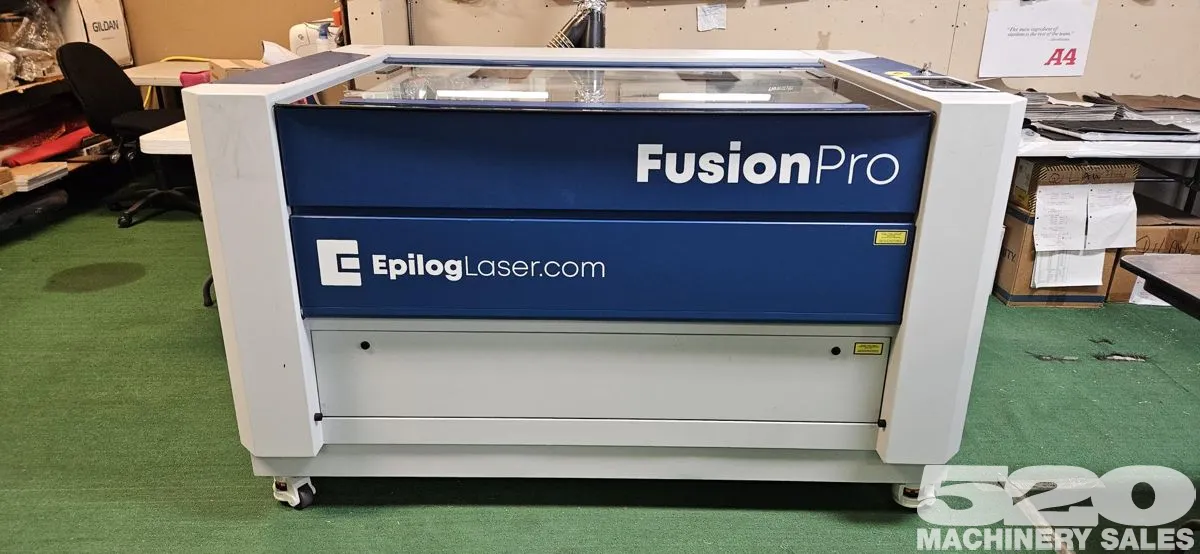

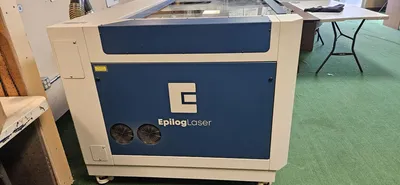

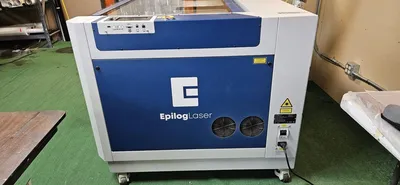

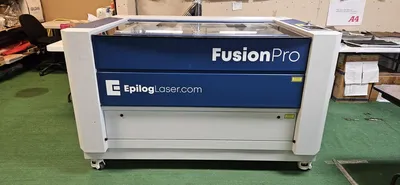

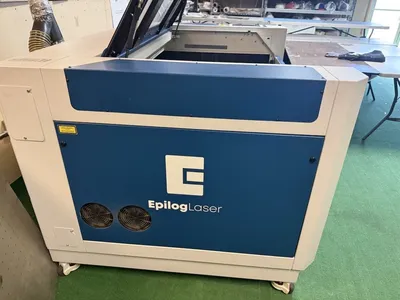

2022 EPILOG FUSIONPRO 48 Laser Cutting Machine

Specification Details

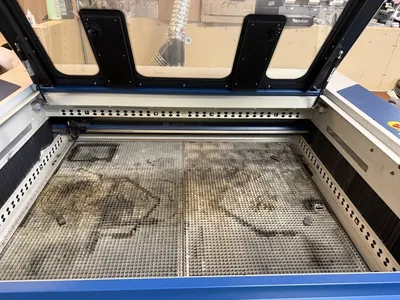

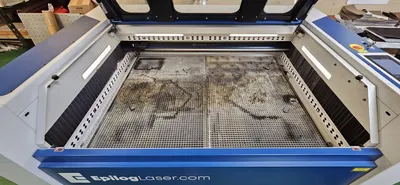

Working area 48" × 36"
Maximum material height 12.25"
Maximum engraving speed 165 inches/second
Acceleration Up to 5G
Engraving resolution 75–1,200 DPI
Current CO₂ power 120 watts
These are published Fusion Pro specifications; older units have different laser wattage options. Epilog Support Center
Physical / installation specification Details
Overall dimensions, W × D × H 70.6" × 51.3" × 42.75"
Machine weight Approximately 650 lb
Motion system Brushless servo motors

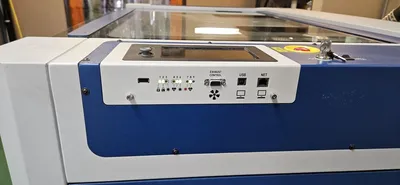

Connections Ethernet and USB

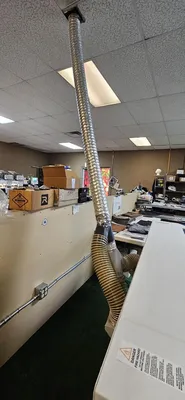

Exhaust requirement 735 CFM total

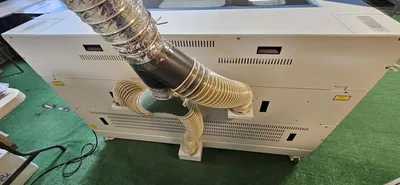

Exhaust connections Three 4" ports: two upper exhaust ports and one table exhaust port
Electrical—older Fusion Pro 48 208/220/240V, single-phase, 50/60 Hz; confirm amperage for installed laser
