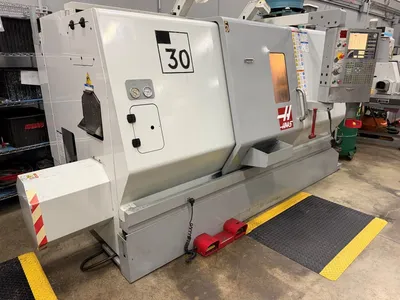

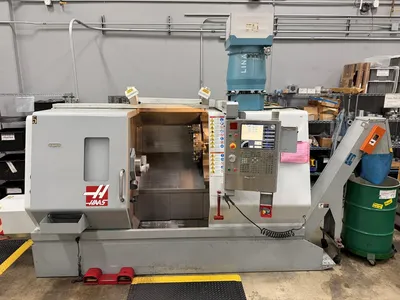

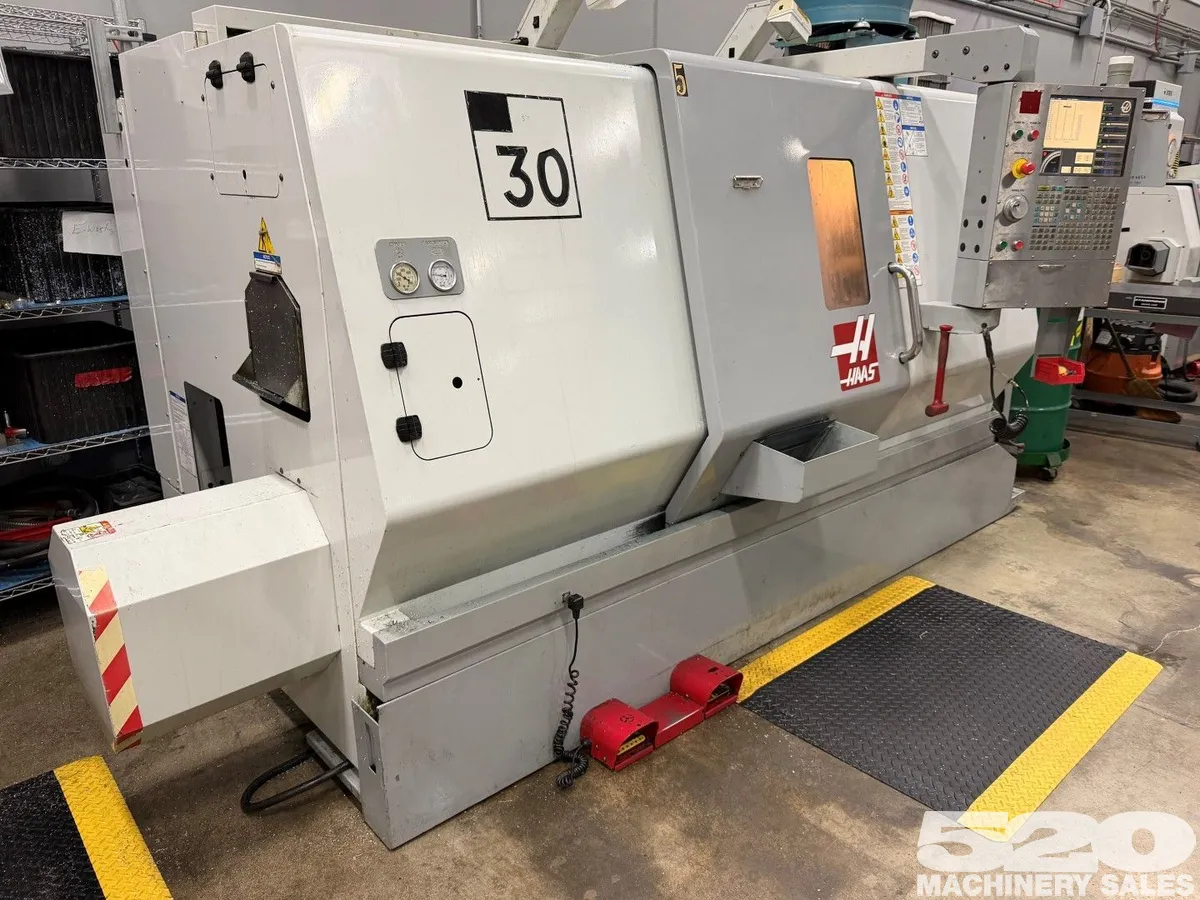

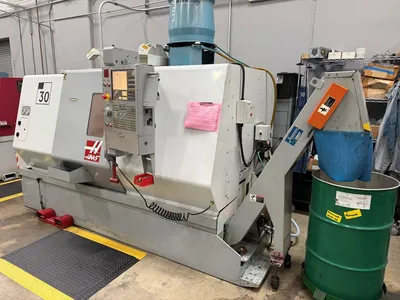

2007 Haas SL30T CNC Turning Center with Programmable Tailstock
ConditionUsed
1 available
2007 Haas SL30T CNC Turning Center with Programmable Tailstock. Machine is in very good condition and can be viewed under power as needed.
Specification Capacity
Maximum swing 30"
Swing over cross slide 14.5"
Maximum cutting diameter 17"
Maximum cutting length 34"
Cutting length with standard workholding Approximately 32"
Distance between centers 39"
Chuck size 10"
Bar capacity 3"
Spindle bore 3.5"
Drawtube bore 3.03"
Maximum spindle speed 3,400 RPM
Spindle motor 30 HP
Spindle nose A2-6
X-axis travel 11.3"
Z-axis travel 34"
Turret 12 stations
OD tool shank size 1"
10" Hydraulic Chuck
Programmable Tailstock
Chip Conveyor
Tool Presetter
2007 Haas SL30T CNC Turning Center with Programmable Tailstock. Machine is in very good condition and can be viewed under power as needed.
Imperial
| Chuck Size | 10" |
| Swing | 30" |
| Machining Length | 32" |
| Bar Capacity | 3" |
| Live Tooling | No |
| Y-Axis Milling | No |
| Sub Spindle | No |
| # of Turrets | 1 |
| Turning Dia | 17" |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Tailstock | Yes |
| Control | CNC (Haas) |
Specification Capacity
Maximum swing 30"
Swing over cross slide 14.5"
Maximum cutting diameter 17"
Maximum cutting length 34"
Cutting length with standard workholding Approximately 32"
Distance between centers 39"
Chuck size 10"
Bar capacity 3"
Spindle bore 3.5"
Drawtube bore 3.03"
Maximum spindle speed 3,400 RPM
Spindle motor 30 HP
Spindle nose A2-6
X-axis travel 11.3"
Z-axis travel 34"
Turret 12 stations
OD tool shank size 1"
10" Hydraulic Chuck
Programmable Tailstock
Chip Conveyor
Tool Presetter
